Phoenix Contact EMG 45-B8 Electronics Housing
جديد
متوفر1 وحدةجاهز للشحن

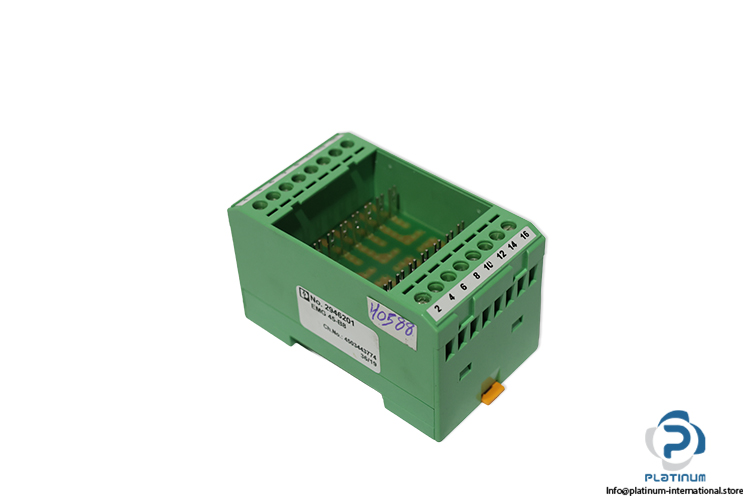

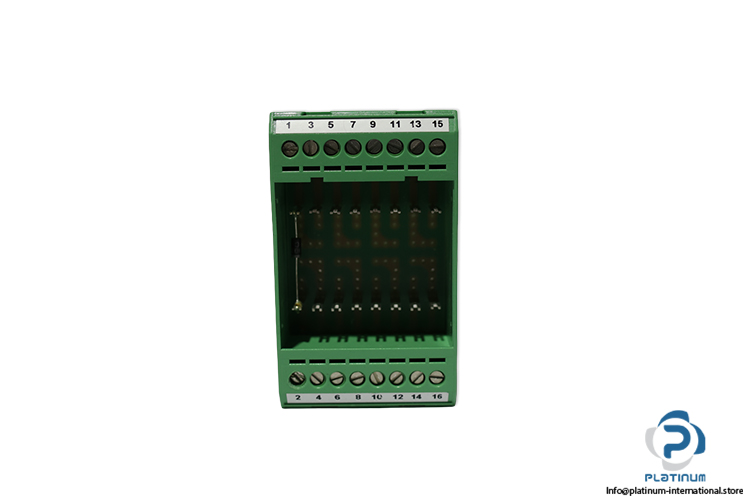

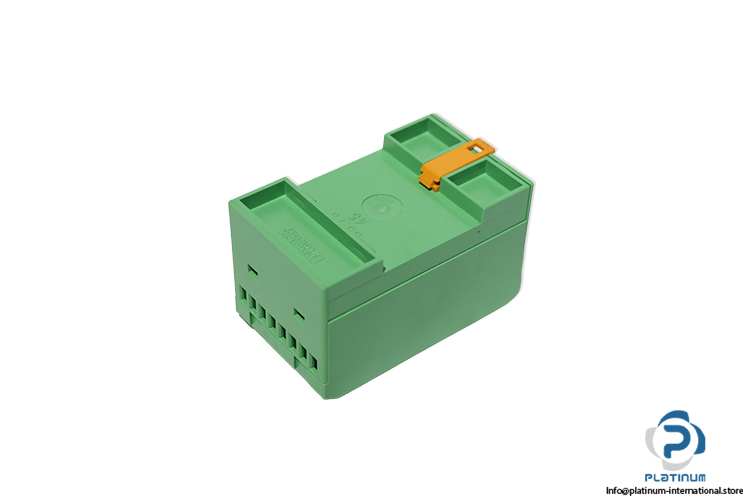

Electronics Housing The Phoenix Contact EMG 45-B8 is a 16-position DIN rail electronics housing with integrated connections, IP20 protection, and durable PC construction.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

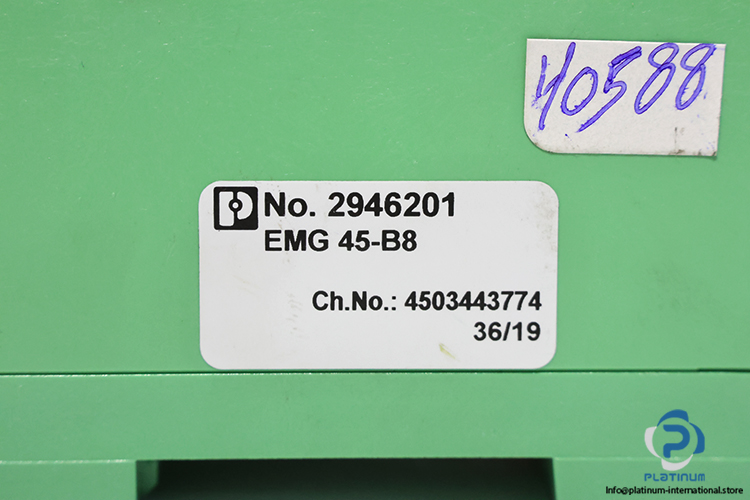

| Art No | 2946201 |
| Ref.No . | 4503443774,36/19 |
| Housing type | Component housing |
| Housing series | EMG |
| Number of positions | 16 |
| Pitch | 5.08 mm |
| Width | 45 mm |
| Installed height | 47.5 mm 55 mm 83 mm |
| Height NS 35/7,5 | 100 mm |
| Depth | 75 mm |
| Length | 75 mm |
| Material Housing | PC (glass-fiber reinforced) |
| Flammability rating according to | UL 94 V0 |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Mounting type | DIN rail mounting |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1101507 |
| Weight | 0,09 |
