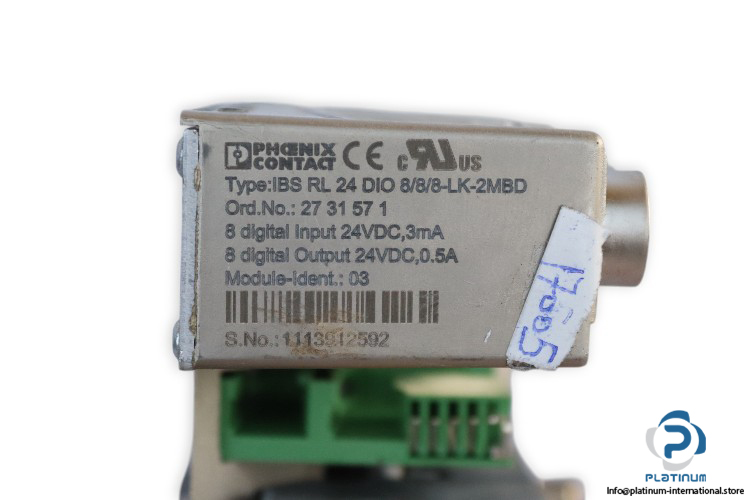

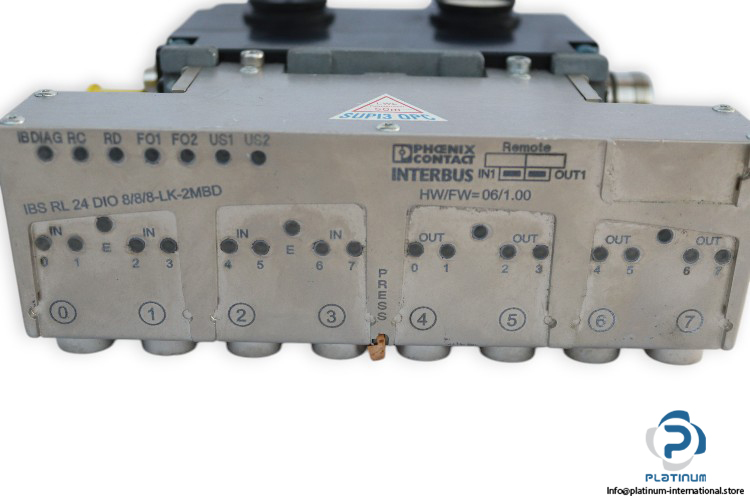

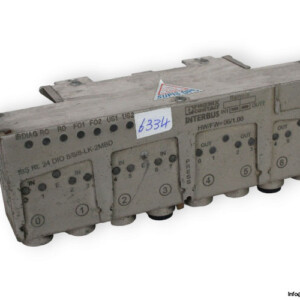

Phoenix Contact IBS RL 24 DIO 8/8/8-LK-2MBD / VJ4M Distributed I/O Device

Manufacturer: Phoenix Contact
Type: Distributed I/O device
Model: IBSRL24DIO8/8/8-LK-2MBD
Part No.: 2731571

Supply voltage: 24 V DC
Output voltage: 24 V DC
Output current: 0.5 A
Input voltage: 24 V DC
Input current: 3 mA
No. of digital input (DI): 8
No. of digital output (DO): 8
Nominal load, lamp, ohmic: 12 W
No. of channels: 16
Interbus Connection method: Optic fiber (polymer fiber 980/1000 µm)
Connection method: Fiber optic
Mounting type: Wall mounting
Transmission speed: 2 Mbps
Ambient temperature (operation): 0 … 55 °C
Degree of protection: IP65/IP67
Dimensions: 179 x 67 x 71 mm

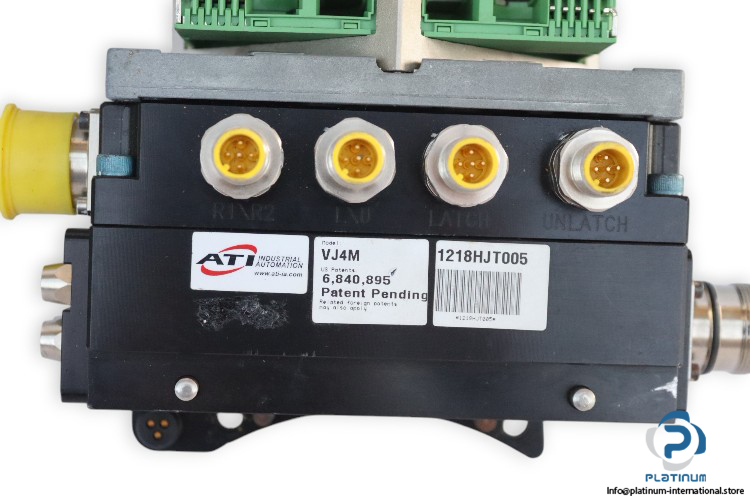

Attachment:ATI VJ4M CONTROL/SIGNAL MODULE
Manufacturer: ATI
Type: CONTROL/SIGNAL MODULE
Model: VJ4 M
part No.: 9121-VJ4-M

Interbus Power Pass Through and I/O Connection Module with Arc Prevention – Master side
Side: M(Master)
Input power: 5A/ 12…30 VDC
Output power: 5A/21…26 VDC
Ambient temperature (operation): -29 … 65.5 °C
connectors: 4X M12, 5-Pin
