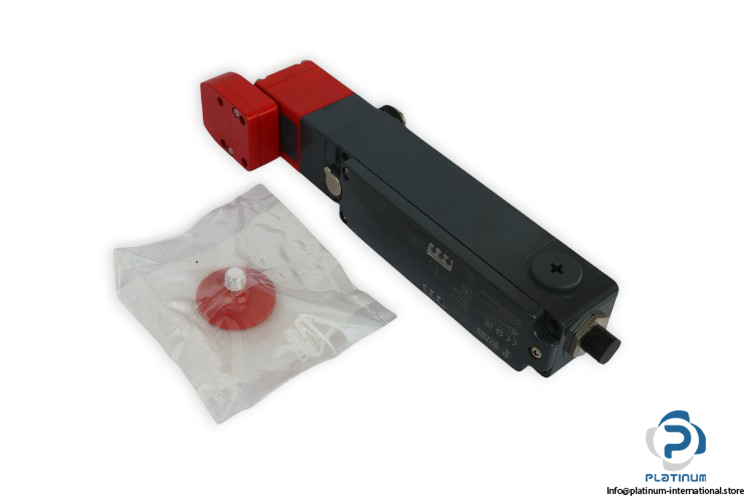

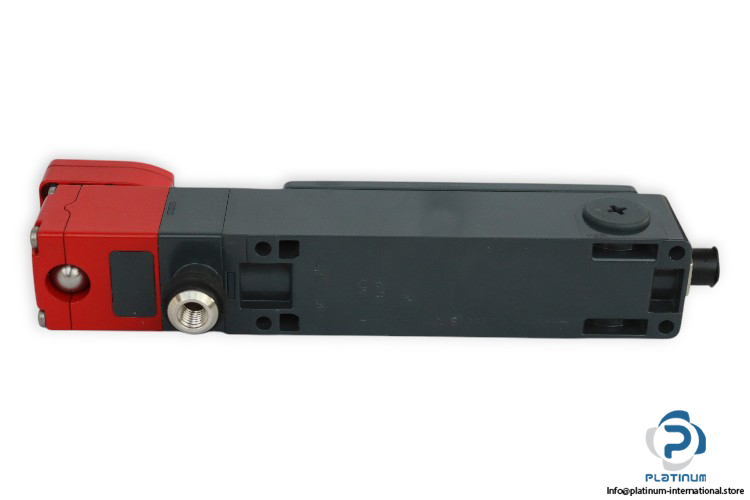

Pizzato NG 2D7E411A-F31K110 Safety Lock Switch

Manufacturer: PIZZATO
Type: Safety Lock Switch
Model: NG2D7E411AF31K110
Part No.: A20NG1471954

Series: NG
Operating Principle: Locked Actuator with De-Energised Solenoid with Key Release
Rated Thermal Current: 10 A
Switching Output: PNP
Switching Output Voltage: 24 V DC
Switching Output Current: 25 mA

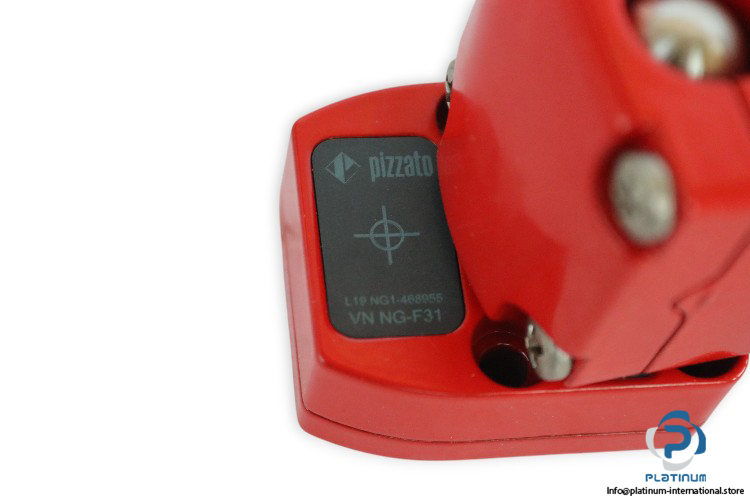

Actuator: High Level Coded Actuator VN NG-F31
Head Type: Locked Actuator with Energised Solenoid with Escape Release Button
Mode: 1 Safety Outputs OS1 and OS2 Active with Inserted and Locked Actuator
Connection: Pre-Installed Metal Connector M12, 12-Pole
Housing Material: Metal
Protection Class: IP65/69K
Ambient Temperature: -20 … 50 °C
Dimensions: 233.5 x 40.4 x 49 mm
