PMI MSA25LESSFCN Linear Guideway Carriage

Name: PMI MSA25LESSFCN LINEAR GUIDEWAY CARRIAGE
SKU: 1086794
Price: 66.66 USD
Availability: InStock

pmi-MSA25LESSFCN-linear-guideway-carriage-new-carton

pmi-MSA25LESSFCN-linear-guideway-carriage-new-carton-1

pmi-MSA25LESSFCN-linear-guideway-carriage-new-carton-2

pmi-MSA25LESSFCN-linear-guideway-carriage-new-carton-3

pmi-MSA25LESSFCN-linear-guideway-carriage-new-carton-4

pmi-MSA25LESSFCN-linear-guideway-carriage-new-carton-5

جديد

متوفر12 وحداتجاهز للشحن

66,66$

عربة دليل خطي PMI MSA25LESSFCN بحجم 25، حمل مسبق خفيف (FC)، درجة دقة N، وحماية من الغبار SS. مصممة للدقة والصلابة والحركة السلسة في التطبيقات الصناعية.

الشركة المصنّعة

PMI

SKU

1086794

الفئة

Linear Motion

الحالة

جديد

25 bearing Block Carriage Dust Flange Guide Guideway High Industrial Linear Motion MSA25LESSFCN PMI Precision Protected rigidity Size SS System Type

مخزون ضخم

شحن عالمي

دعم من خبراء

جودة مضمونة

PMI MSA25LESSFCN LINEAR GUIDEWAY CARRIAGE

The PMI MSA25LESSFCN is a high-precision linear guideway carriage designed for smooth motion, high rigidity, and reliable load capacity. Featuring light preload (FC) and dust protection (SS), it is ideal for demanding industrial applications requiring consistent accuracy and durability.

Manufacturer: PMI

Type: Linear Guideway Carriage

Model: MSA25LESSFCN

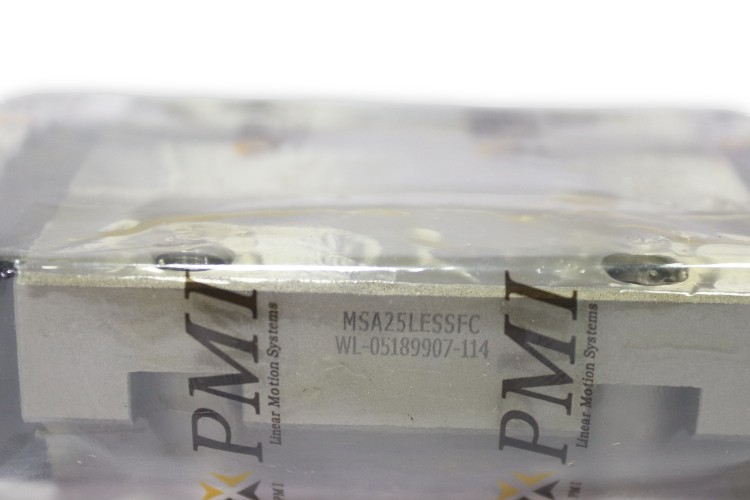

Code: WL-05189907-114

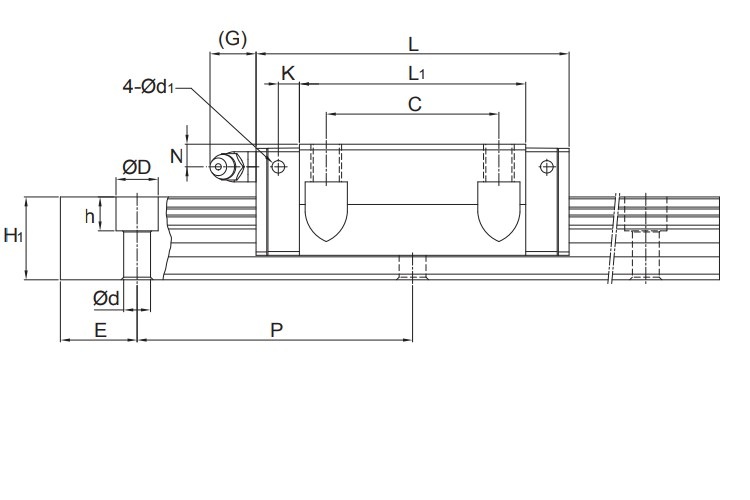

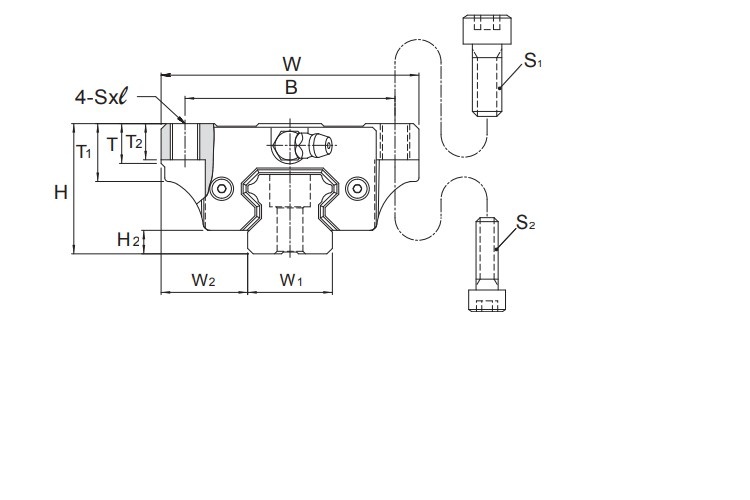

Size	25
Height of System	36 mm
Height of Block	29.5 mm
Width	70 mm
Length	100.6 mm
B	57 mm
C	45 mm
Dynamic Load Rating	34400 N
Static Load Rating	56600 N
Preload	FC (Light preload)
Accuracy Grade	N
Carriage Type	LE (Flange type, mounting either from top or bottom)
Dust Protection Option	SS
Note	We also provide the corresponding rails (guideways) in a wide range of lengths - please ask us if you need rails to match your bearing
