Rexroth 167-05-1000-2 ISO Cylinder
مستعمل
متوفر1 وحدةجاهز للشحن
ISO Cylinder
REXROTH MECMAN ISO Cylinder 167-05-1000-2 designed for industrial pneumatic control with a 50 mm bore, 100 mm stroke, and a maximum pressure of 10 bar. Features include a square shape, double-acting operation, and G 1/4 pneumatic connection for efficient use in various applications.1/410100167-05-1000-250barboreconnectionControlCylinderdouble-actingGIndustrialISOMecmanmmPneumaticPressureRexrothShapeSquareStroke
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

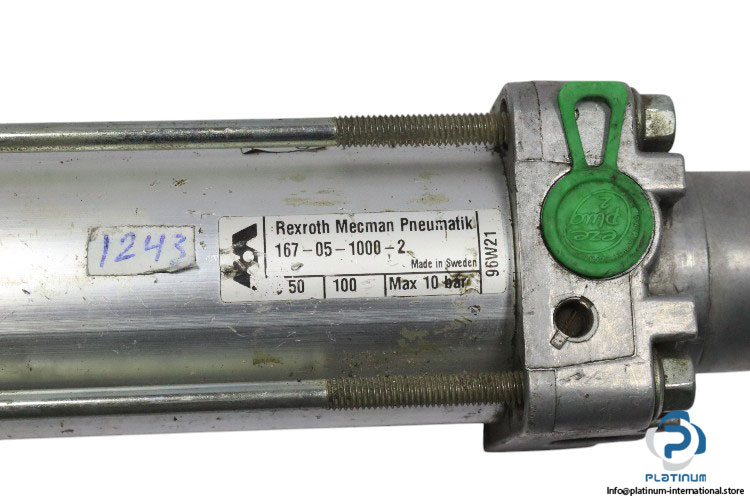

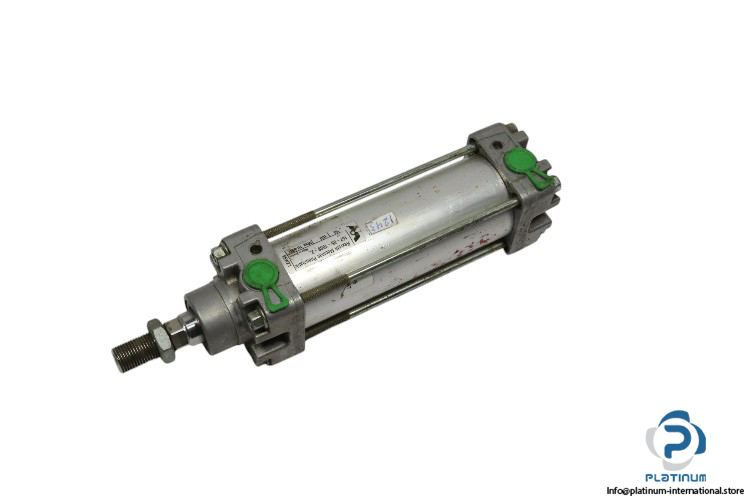

REXROTH MECMAN ISO Cylinder 167-05-1000-2
The REXROTH MECMAN ISO Cylinder 1670510002 is a reliable solution for pneumatic control in industrial applications. With a 50 mm bore diameter and a 100 mm stroke, this double-acting cylinder offers high performance and precision. Its square shape and male piston rod end make it ideal for various system configurations.
Manufacturer: REXROTH MECMAN
Model: 167-05-1000-2
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 50 mm
- Stroke: 100 mm
- Bore x Stroke: 50 x 100 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 64 x 230 mm
- Pneumatic Connection: G 1/4
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
