Rexroth MS2N03-B0BYN-CMSL0-NNNNN-NN Servomotor
جديد
متوفر3 وحداتجاهز للشحن
1 555,55$
Synchronous Servomotor The REXROTH MS2N03 servomotor delivers precise motion control with low inertia, 0.37 kW power, 9000 rpm speed, and advanced 20-bit digital feedback for high-performance automation systems.
ACauAutomationBoschDriveEncoderEnDatIndustrialInertiaIP65lowMotionmotorPrecisionRexrothServoServomotorSynchronous
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| MNR | R911384245 |
| SN | 7260424057910 |
| Ref No | 1013950893 000060 |
| Code | 81666245/4508746205 |
| Maximum voltage UL | 600 v |
| Rated power | 0.37 KW |
| Rated current | 1.08 A |
| Standstill current | 1.61 A |
| T.CL. Thermal class | 155 |
| Maximum torque [Nm] | 3.75 |
| Idle torque (int./ext. cooling) 100k [Nm] | 0.9 |
| Maximum speed [rpm] | 9000 |
| Rated speed [rpm] | 6470 |
| Flange size [mm] | 58 |
| Type of cooling | Self-cooling |
| Engine type | without holding brake |
| Shaft | Keyed, without shaft seal |
| Shaft length [mm] | 20 |
| Shaft diameter [mm] | 9 |
| Centering collar [mm] | 40 |
| Pin ring [mm] | 63 |
| Mounting hole (shaft) | M4 |
| International protection code | IP64 |
| Rotor inertia | low inertia |
| Rotor inertia (without brake) value [kg/m²] | 0.000023 |
| Sensor resolution | ADVANCED – digital 20 bits, ACURO@link, SIL2, PL d |
| Sensor design | Multi-turn - 4,096 revolutions absolute |

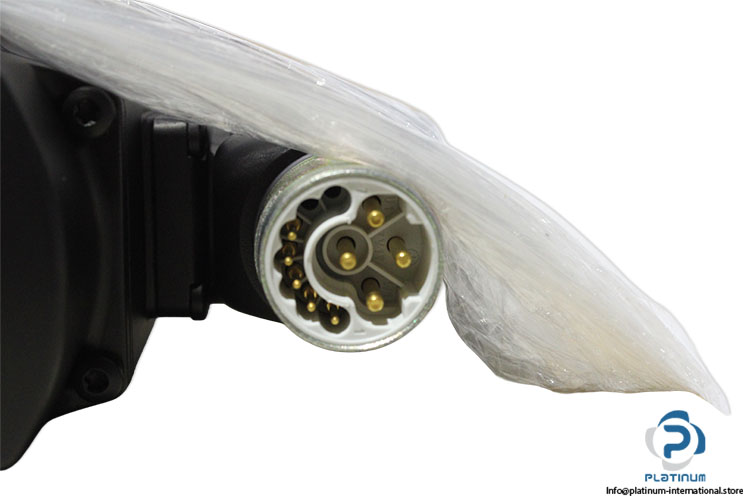

| electrical connection | Single-cable connection M23, rotatable |
| Standstill torque (int. cooling) 60k [Nm] | 0.73 |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1096843 |
| Weight | 2,05 |
