Rexroth MSK050C-0450-NN-M2-UG0-RNNN Servomotor
جديد
متوفر3 وحداتجاهز للشحن
1 555,55$
Bosch Rexroth Synchronous Servomotor The MSK050C-0450-NN-M2-UG0-RNNN synchronous servomotor from Bosch Rexroth delivers reliable high-speed motion control with 5 Nm stall torque, 6000 rpm rated speed, EnDat multi-turn encoder feedback, and IP65 protection. Designed for precision industrial automation systems.
ACAutomationBoschControlDriveEncoderHighIndustrialMotionmotorMultiOpticalPrecisionRexrothServoServomotorSpeedSynchronousTurn
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

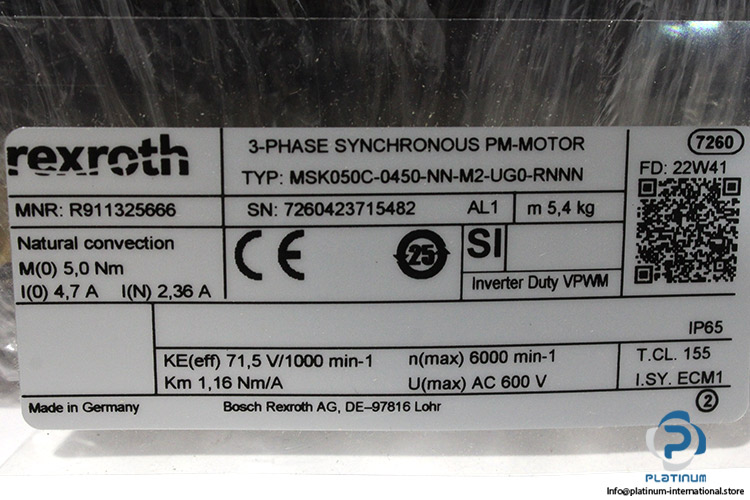

| MNR | R911325666 |
| SN | 7260423715482 |
| Ref No | 1014123659 000010 |
| Code | 81471352/4503923779 |
| Size | 50 |
| Maximum voltage UL | 600 v |
| stall current | 4.7 A |
| Rated Speed | 6000 rpm |
| Stall torque | 5 Nm |
| torque Constant | 1.64 Nm/A |
| voltage Constant | 71.5 V/1000 MIN-1 |
| Thermal class | 155 |
| Cooling Mode | Natural convection |
| holding brake | without holding brake |
| Shaft | Plain shaft with shaft sealing ring |
| Shaft runout | Reduced, linear movement conforming to DIN 42955, in conjunction with S2 or M2 encoder only |
| Shaft diameter [mm] | 19 |
| International protection code | IP65 |
| Encoder design | Multi-turn encoder (EnDat) 2,048 signal periods with 4,096 revolutions absolute |

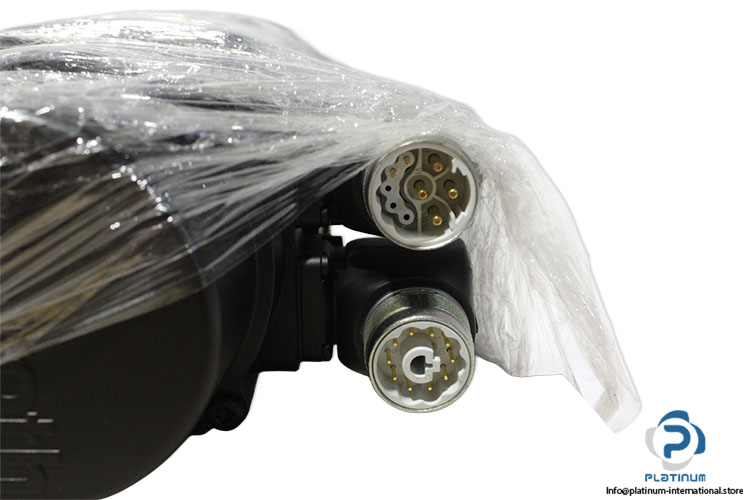

| electrical connection | cable connection M23,right-angled connector |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1096842 |
| Weight | 6,2 |
