Rexroth R15104G160 Ball Screw
999,99$
صمولة شفة برغي كروي Rexroth R15104G160 صمولة شفة برغي كروي FEM-E-S بقطر 40 مم، خطوة 10 مم، 4 لفات مسار كروي، طول ملولب 1100 مم، وتصنيف حمل ديناميكي 60000 نيوتن.

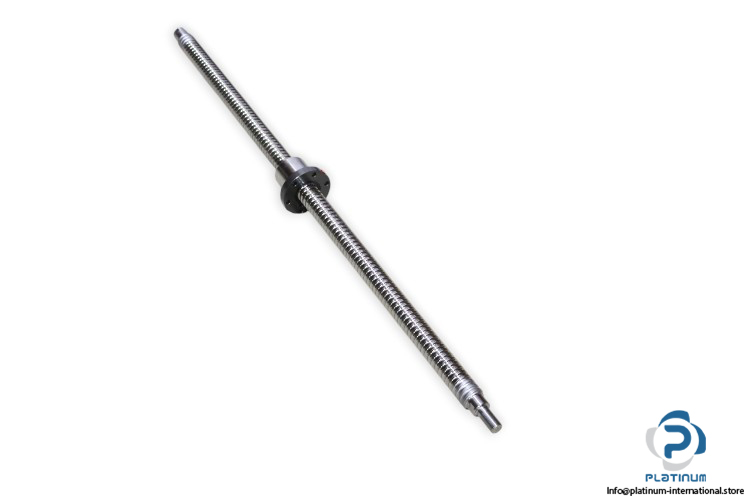

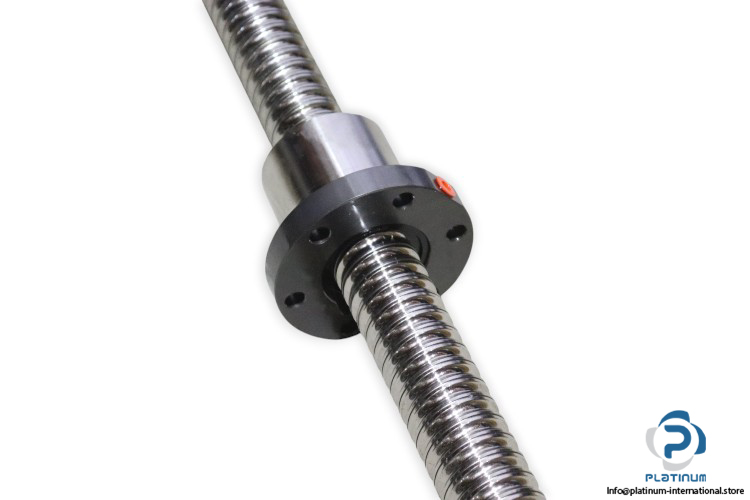

Rexroth R15104G160 Flange Nut Ball Screw (BALL NUT FEM-E-S)
The Rexroth R15104G160 Flange Nut Ball Screw (BALL NUT FEM-E-S) is a precision-engineered component designed for high-performance motion control applications. With excellent load ratings, smooth linear motion, and durable construction, it is ideal for demanding industrial automation systems.
Manufacturer: Rexroth
Type: Flange Nut Ball Screw (BALL NUT FEM-E-S)

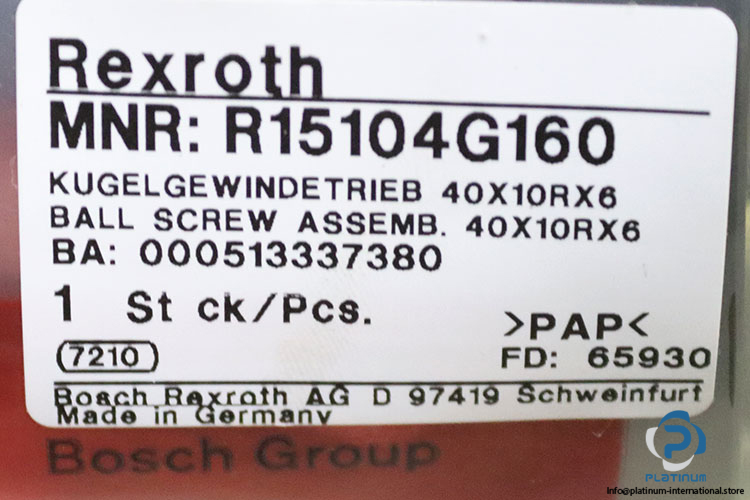

MNR: R15104G160

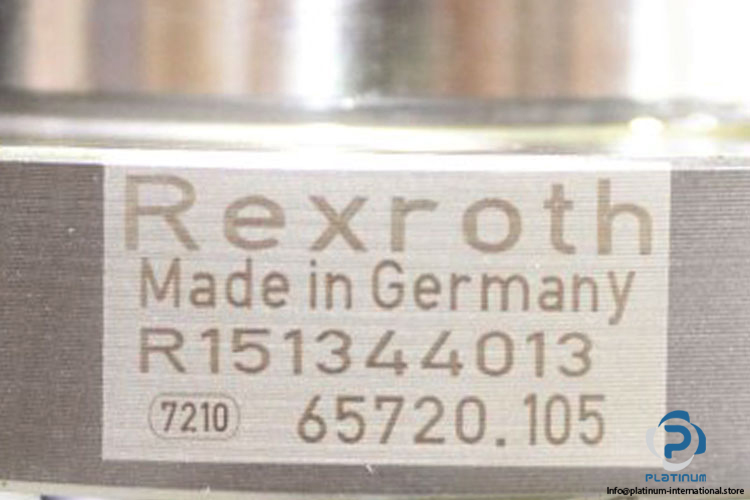

Nut MNR: R151344013
Code: 65720.105 (7210)
BA: 000513337380
FD: 65930
| Size | 40 x 10 R |
| Nominal Diameter (dN) | 40 mm |
| Lead (P) | 10 mm |
| Ball Diameter | 6 mm |

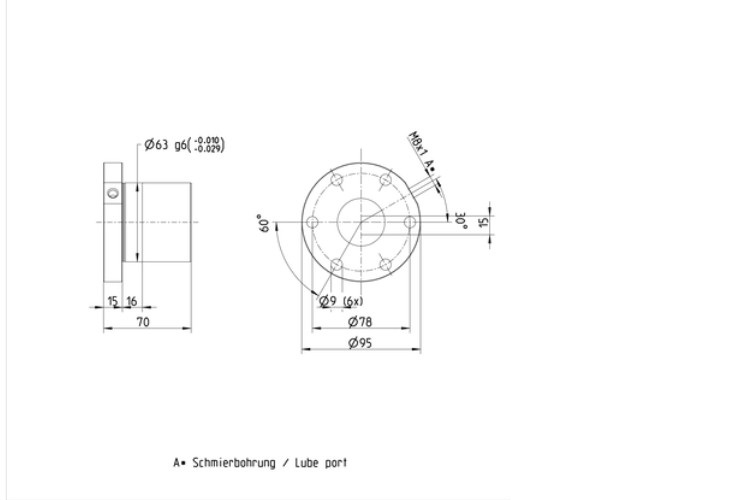

| Flange Diameter | 95 mm |
| Nut Outer Diameter | 63 mm |
| Nut Length | 70 mm |
| Flange Thickness | 15 mm |
| Number of Ball Track Turns | 4 |
| Number of Starts | 1 |
| Direction of Lead | Right-Hand Thread |
| Threaded Length | 1100 mm |
| Total Screw Length | 1200 mm |
| Hole Pattern | BB4 |
| Nut Load Ratings | Dynamic: 60000 N, Static: 86400 N |
| Linear Speed | 38 m/min |
