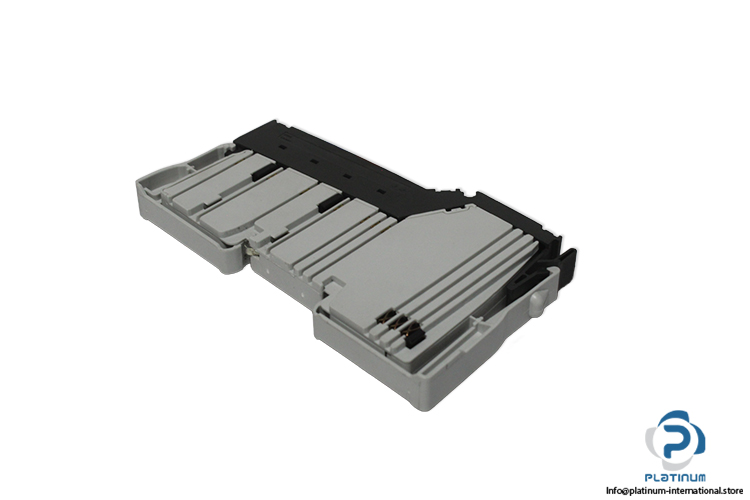

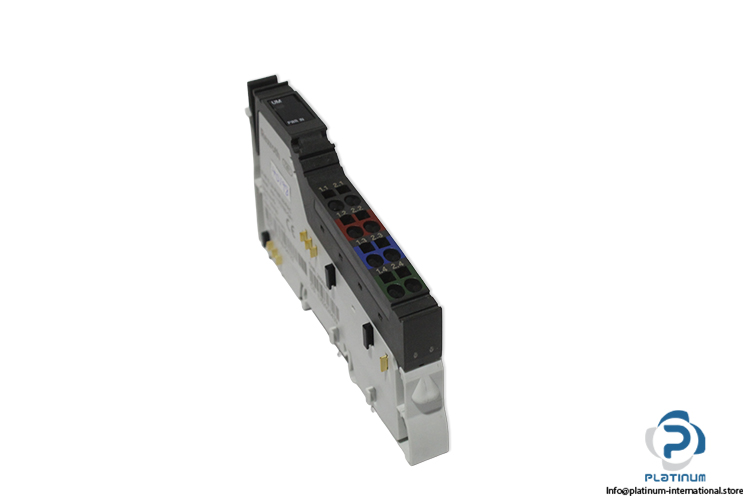

Rexroth R911170789 Interface Module
جديد
متوفر2 وحداتجاهز للشحن
33,33$
Interface Module The Rexroth R-IB IL 24 PWR IN-PAC is a 24 V DC interface module with 8 A maximum current and IP20 protection, designed for industrial automation and control systems.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

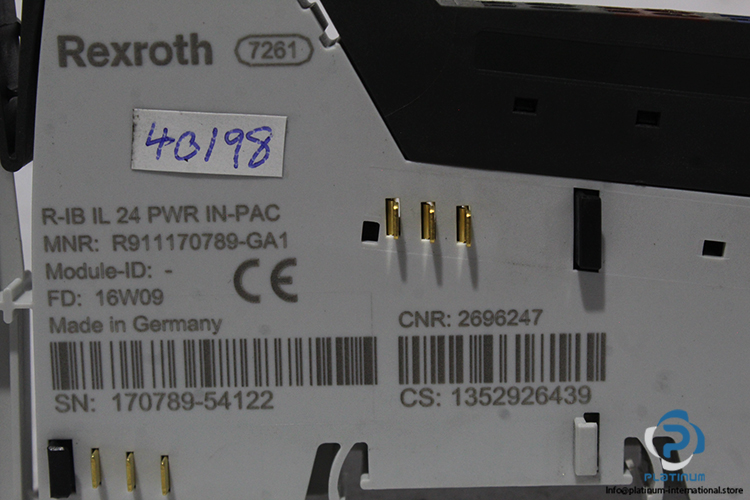

| MNR. | R911170789 |
| FD | 16W09 |
| CNR . | 2696247 |
| CS | 1352926439 |
| SN | 170789-54122 |
| Maximum current [A] | 8 |
| Connection type | Tension spring connection |
| Width [mm] | 12.2 |
| Height [mm] | 120 |
| Depth [mm] | 71.5 |
| International protection code | IP20 |
| Rated value; 24V periphery (main circuit UM) | 24 V DC |
| Conductor cross-section | AWG: 28 ... 16 |
| Flexible | 0.08-0.5 mm²:rigid: 0.08-0.5 mm² |
| Permissible air humidity (during operation) [%] | 10-95 |
| Permissible air humidity (storage) [%] | 10-95 |
| Permissible air humidity (transport) [%] | 10-95 |
| Ambient temperature (during operation) [°C] | -25-55 |
| Air pressure (operation) | 70-106 kPa (up to 3,000 m above sea level) |
| Air pressure (storage / transport) | 70-106 kPa (up to 3,000 m above sea level) |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100604 |
| Weight | 0,06 |
