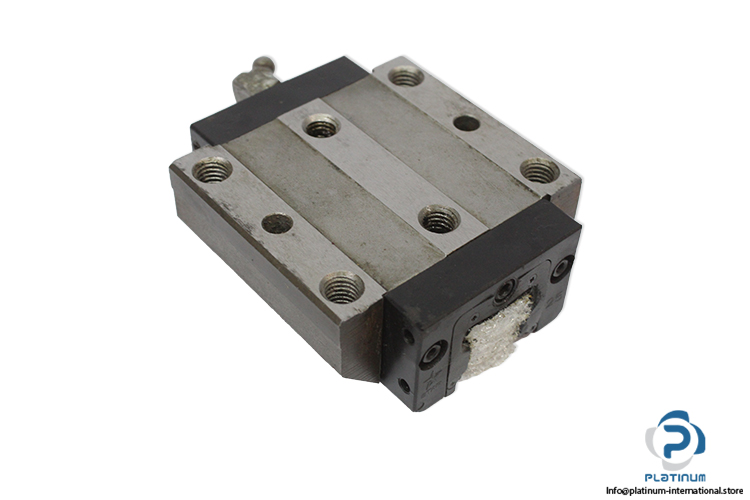

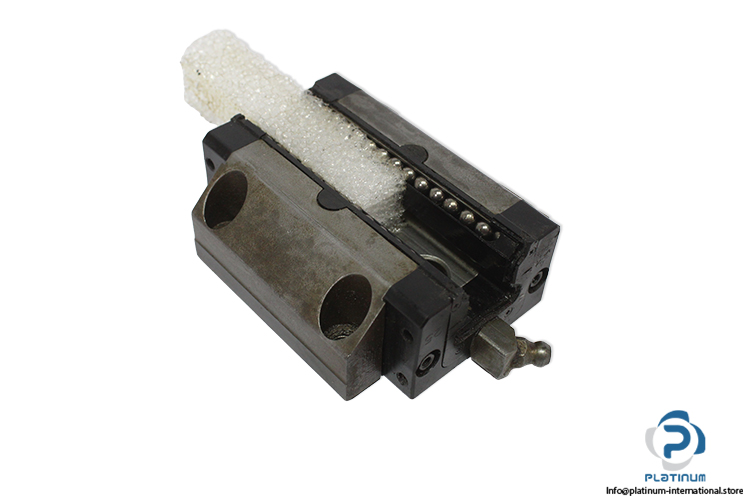

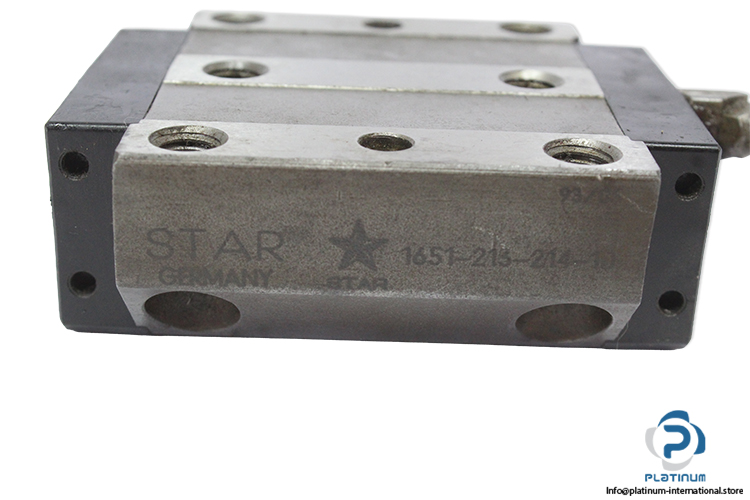

Rexroth Star 1651-213-214-10 Ball Runner Block With Rail
مستعمل
متوفر2 وحداتجاهز للشحن
Ball Runner Block Rexroth Star 1651-213-214-10 is a high-precision ball runner block, size 25 mm, flanged FNS design, offering high load capacity and smooth linear motion for industrial applications.
1651-213-214-1025mmBallbearingBlockFNSGuideIndustrialLinearMotionPrecisionrailRexrothRunnerStarSystem
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Series | FNS |
| Size | 25 mm |
| Design Type | Flanged, Normal length, Standard height (FNS) |
| Material (profiled rail systems) | Carbon steel |
| Maximum Acceleration Travel amax | 500 m/s² |
| Maximum Permissible Speed vmax | 5 m/s |
| Dynamic Load Capacity C | 22800 N |
| Static Load Capacity C0 | 30400 N |
| Dynamic Torsional Moment Load Capacity Mt | 320 Nm |
| Static Torsional Moment Load Capacity Mt0 | 430 Nm |
| Dynamic longitudinal moment load capacity ML | 290 Nm |
| Static longitudinal moment load capacity ML0 | 360 Nm |
| Accuracy Class | H – Highly accurate |
| Preload Class | C1 – Low preload |

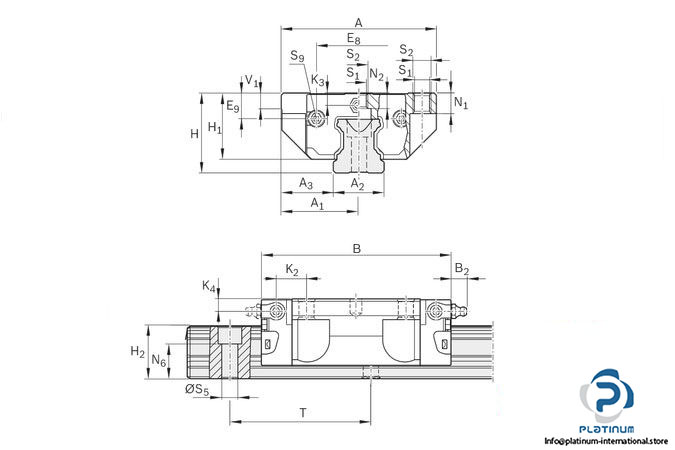

| Width (A) | 70 mm |
| Length (B) | 86.2 mm |
| Height of system(H) | 36 mm |
| Height of block (H1) | 29.90 mm |
| Height of Rail | 6.1 mm |
| E1 | 57 mm |
| E2 | 45 mm |
| Admissible Operating Temperature | -10 to +80 °C |
| Condition | Used |
| SKU | 1097109 |
| Weight | 0,65 |
