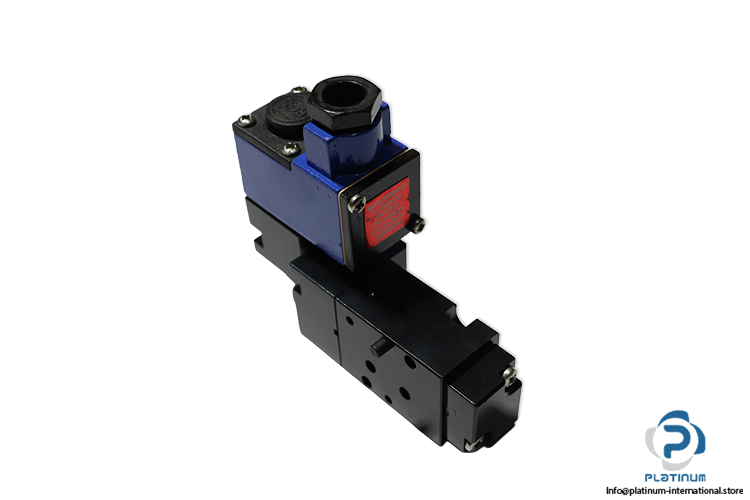

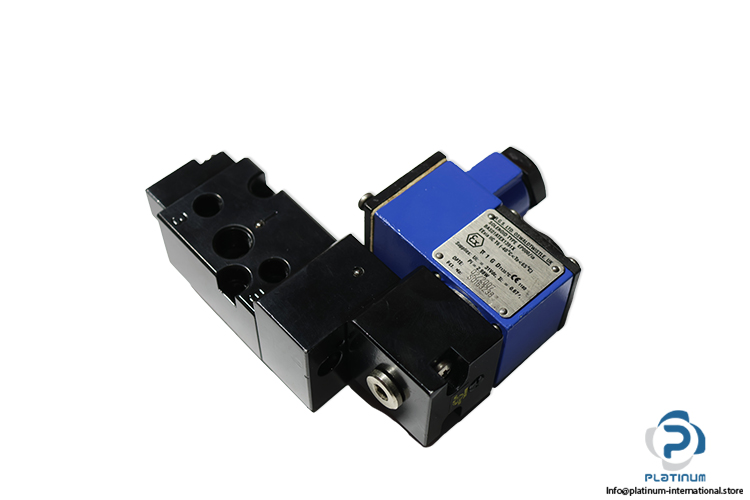

RGS C1518P0000 Solenoid Valve
مستعمل
متوفر8 وحداتجاهز للشحن
149,99$
Solenoid Valve RGS Pneumotrol C1518P0000 C15 5/2-way solenoid valve with 3–8 bar working pressure, 675 L/min flow rate and spring return operation.
23159001AluminumbyC15C1518P0000ComponentdcExplosionIndustrialISOPneumaticProofR.G.SRGSSeriessolenoidVValveWay
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

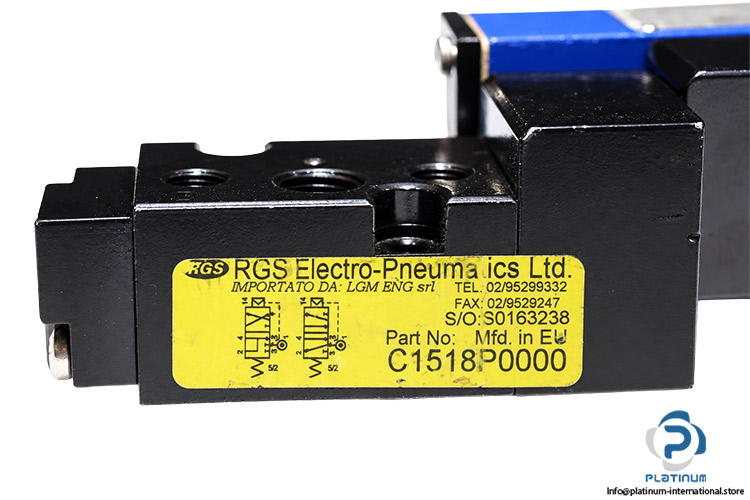

| Part No. | C1518P0000 |
| Serial Number | S0163238 |
| Series | C15 |
| Quality Control | ISO 9001 |
| Valve Function | 5 by 2 way |
| Working Pressure | 3 to 8 bar |
| CV Factor | 0.7 |
| Flow Rate | 675 liters per minute |
| Maximum Ambient Temperature | 60 degree Celsius |
| Port Type | Sub base mounting |
| Operation | Solenoid actuated, spring return, internal pilot air feed |
| Tested By | 17 |
| Medium | Compressed air, filtered and lubricated |
| Body Material | Aluminum |

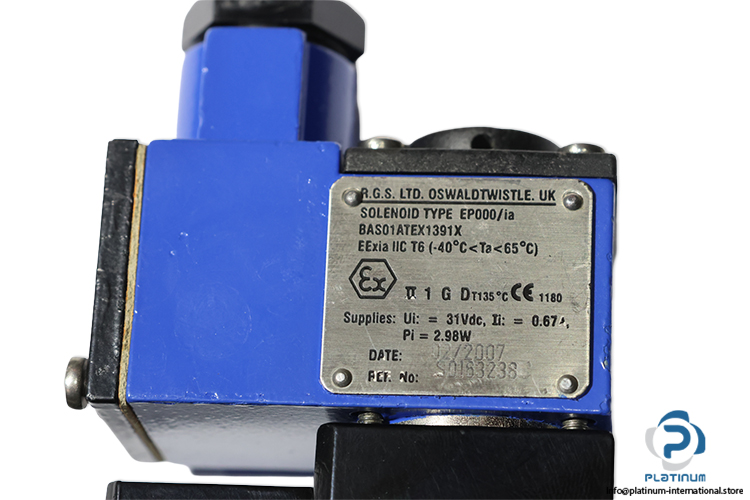

| Attached With | Solenoid Type R.G.S EP000 ia |
| Code | BAS01ATEX1391X |
| Reference Number | S0151686 |
| Rated Supply Voltage | 31 V DC |
| Rated Current | 0.67 A |
| Power Input | 2.98 W |
| Explosion Protection | Ex II 1 GD “ Ex ia IIC T6 T135 |
| Condition | Used |
| SKU | 1084059 |
| Weight | 0,7 |
