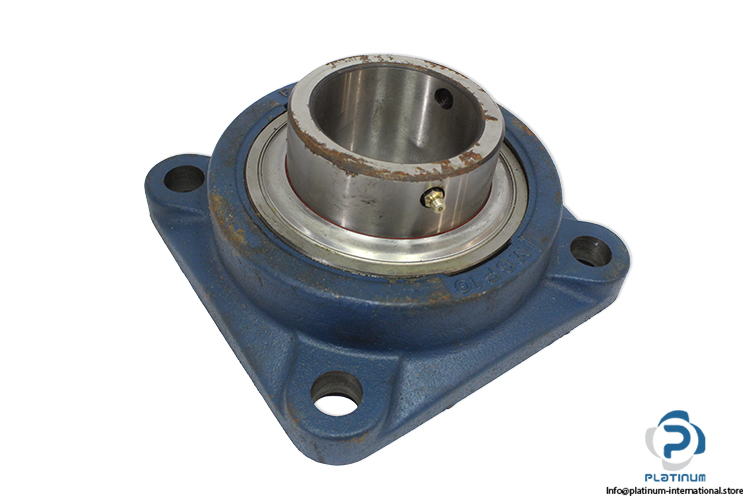

RHP MSF75 Four-Bolt Square Flange Unit
جديد
متوفر3 وحداتجاهز للشحن
Flange Unit RHP MSF75 Four-Bolt Square Flange Unit features a 75 mm shaft diameter, cast iron housing, and high load capacity with dynamic rating of 72500 N, designed for reliable industrial performance.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

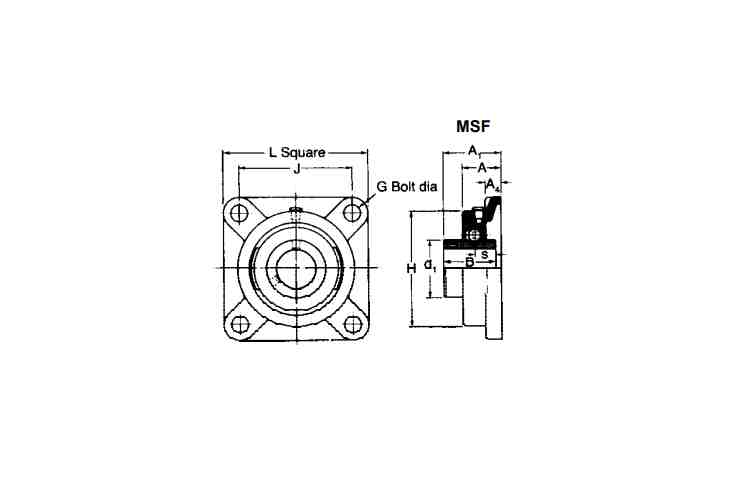

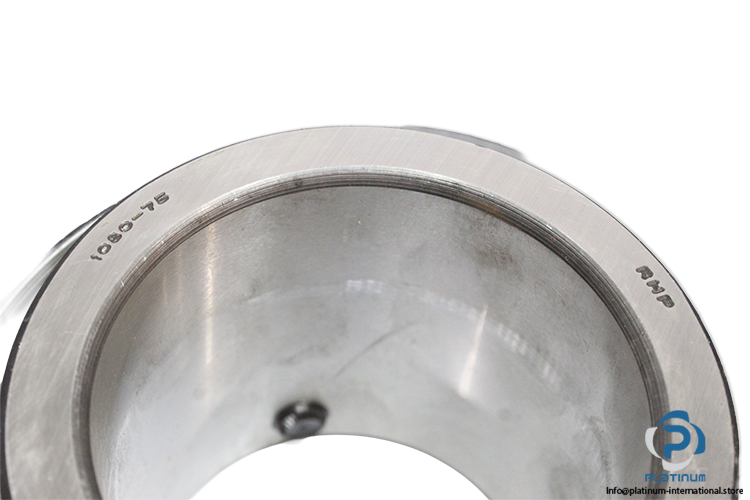

| Bearing No. | 1080-75 |

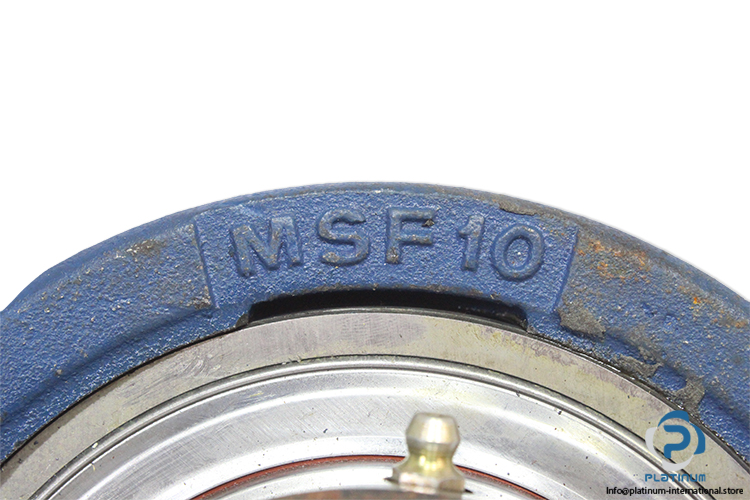

| Housing No. | MSF10 |
| Shaft diameter d | 75 mm |
| Overall length L | 196.5 mm |
| H | 173.5 mm |
| J | 152.40 mm |
| G | 20 mm |
| A | 55 mm |
| B | 82,55 mm |
| ISO load ratings dynamic | 72500 N |
| ISO load ratings Static | 53000 N |
| Speed | max. 2150 rev/min |
| Mounting | Four-Bolt Flange |
| Material, housing | Cast iron |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097086 |
| Weight | 7,24 |
