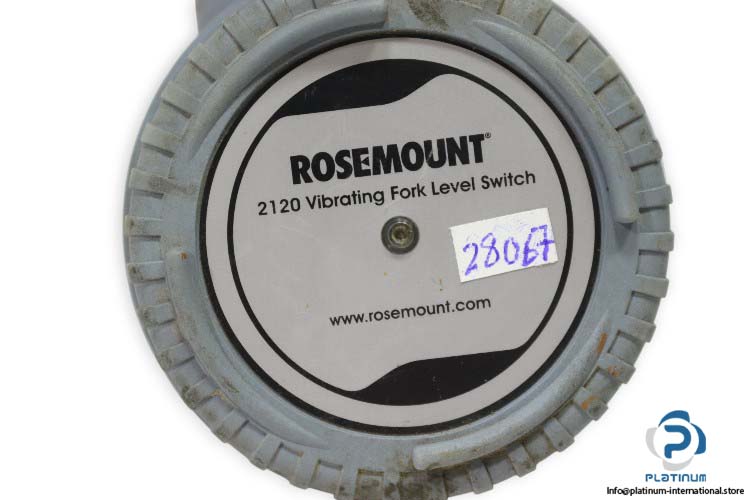

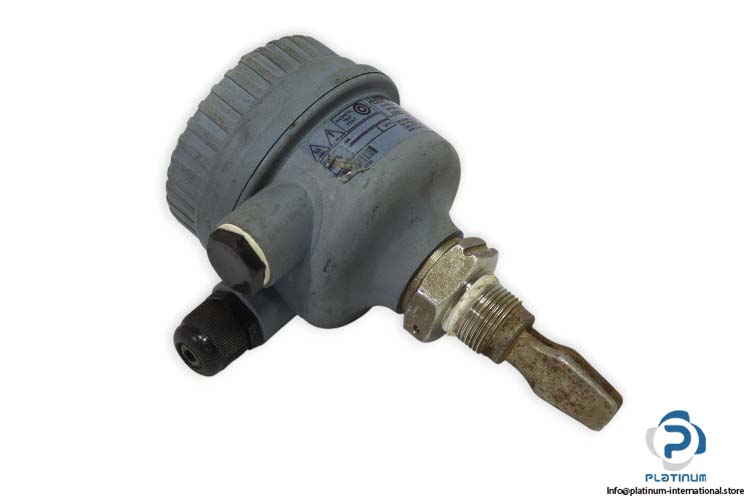

Rosemount 2120 Vibrating Fork Level Switch
for accurate liquid level detection. Supports a wide range of viscosities and temperatures. Compact and reliable performance with user-configurable switching modes.
Manufacturer: ROSEMOUNT
Type: Vibrating Fork Level Switch
Model: 2120
The ROSEMOUNT 2120 vibrating fork level switch is a robust, compact, and reliable solution for detecting liquid levels across a wide range of industrial processes. Designed with advanced tuning fork technology, this device operates effectively even in harsh environments and with varying fluid types. It supports user-selectable switching modes and operates efficiently with both low and high-viscosity liquids. Ideal for applications involving challenging temperature ranges and aggressive media.
| Rated Voltage | 8V DC |

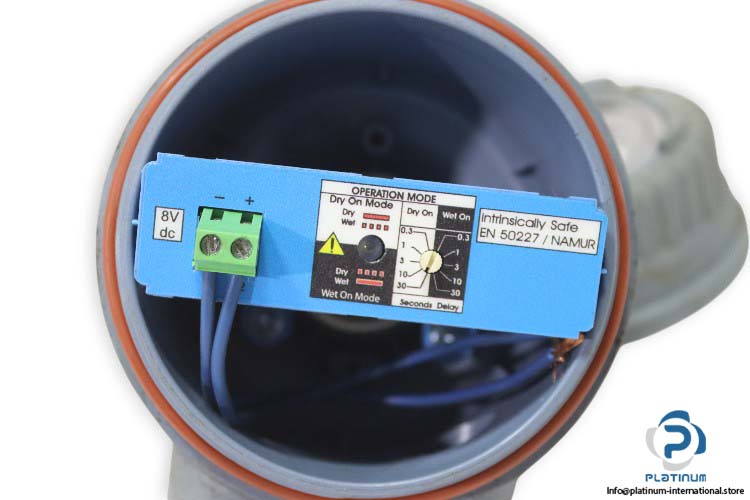

| Switching Mode | User selectable (Dry=on or Wet=on) |
| Liquid Density Requirement | Minimum 37.5 lb/ft³ (600 kg/m³) |
| Liquid Viscosity Range | 0.2 to 10000 cP |
| Ambient Temperature | -40 to 150 °C |
المزيد من ROSEMOUNT
ROSEMOUNT
Rosemount 3051 TG2A2B21AS1B4M504 Pressure Transmitter
SKU: 1099068
الكمية: 1
ROSEMOUNT
Rosemount 2051CD1A02A1AH2B3E1Q4 Pressure Transmitter
SKU: 1099077
الكمية: 1
ROSEMOUNT

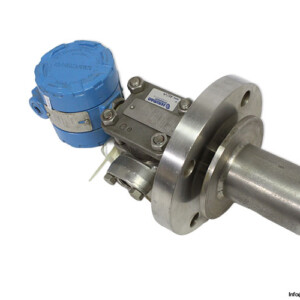

Rosemount 1151 LT5SA4F22D Pressure Transmitter
