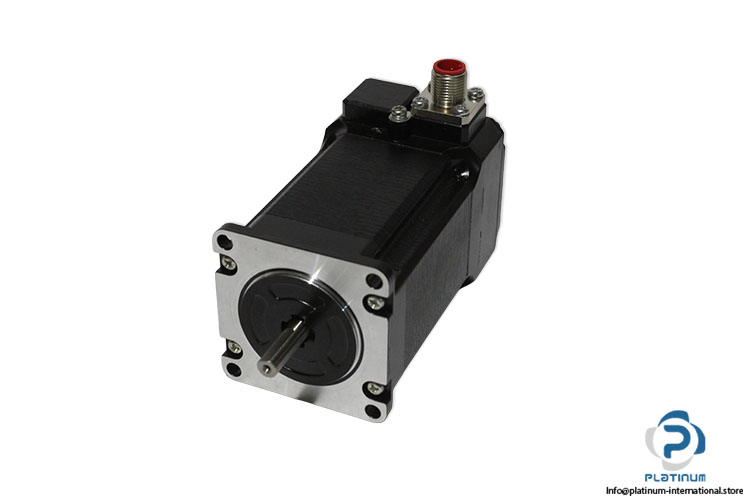

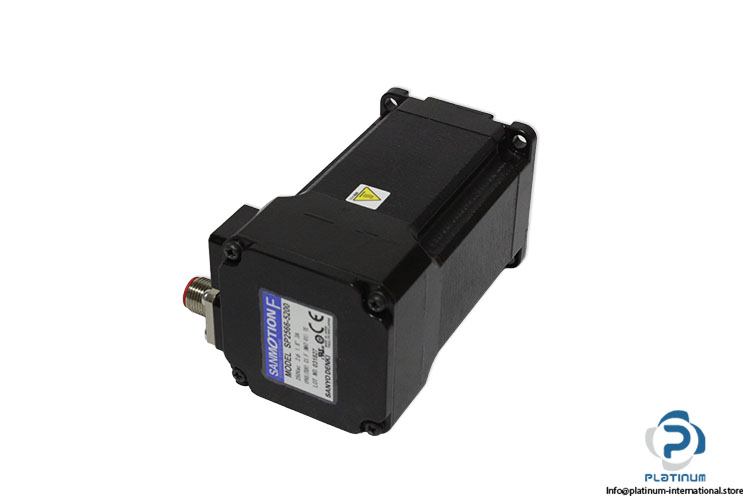

Sanyo Denki SP2566-5200 Stepper Motor
جديد
متوفر8 وحداتجاهز للشحن
2-Phase Stepper Motor SANYO DENKI SANMOTION F 2-phase stepper motor featuring a 1.8° step angle, 1.7 N·m holding torque, bipolar wiring, IP65 protection, and a circular connector for precision industrial motion control applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| LOT NO. | 031827 |
| Series | SANMOTION F |
| Basic step angle [ º ] | 1.8 |
| Motor flange size[mm] | 56 |
| Motor length [mm] | 102 |
| Single/Dual shaft | Single shaft |
| Output shaft | D-shaped |
| Holding torque [N·m] | 1.7 |
| Rotor inertia [×10-4kg·m2] | 0.36 |
| Rated current [A/phase] | 3 |
| Wiring | Bipolar |
| Allowable thrust load [N] | 15 |
| Allowable radial load [N] | 23 |

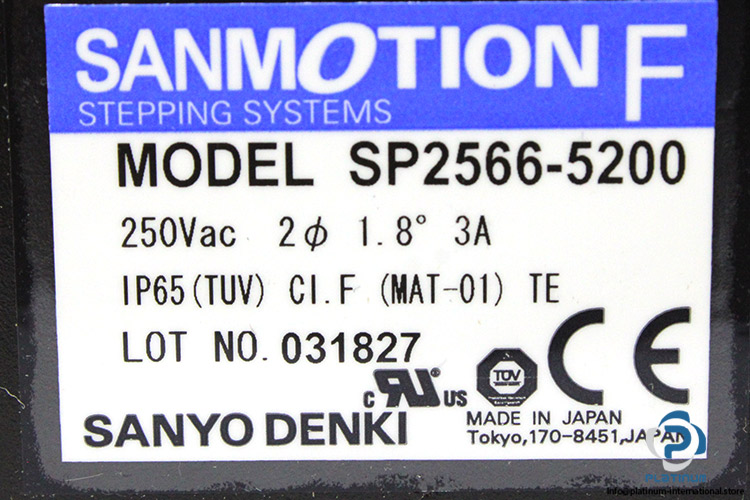

| Rated Voltage [Vac] | 250 |
| Rated Current [A] | 3 |
| Insulation Class | F |
| Certificate | TUV |
| Standard | TE |
| Insulation Material System code | MAT-01 |
| Operating temperature range | -10 to +40? |
| Operating humidity range | 95% RH max.: Under 40°C(no condensation) |
| Protection rating | IP65 |

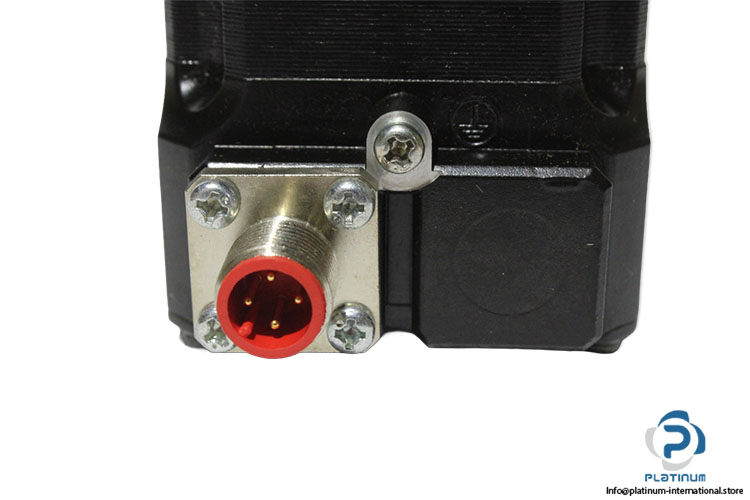

| Connection | CIRCULAR CONNECTOR |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100341 |
| Weight | 1,32 |
