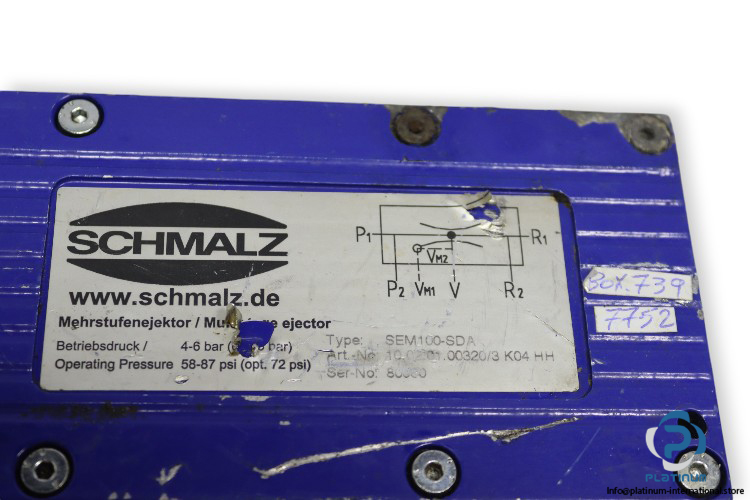

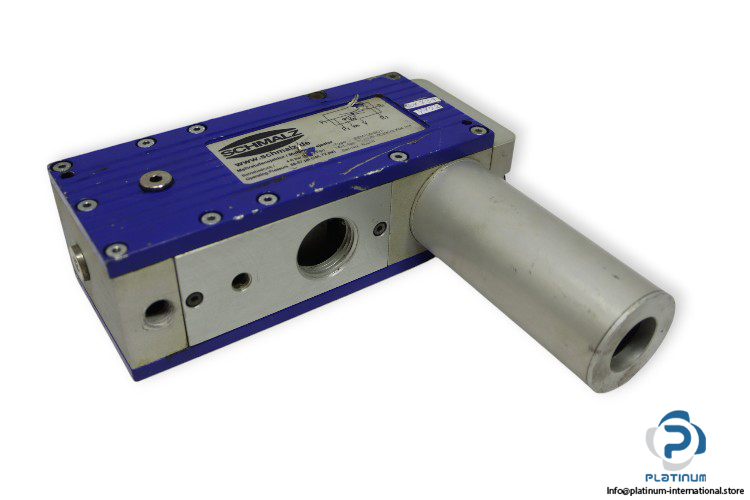

Schmalz SEM100-SDA Basic Ejector

Manufacturer: SCHMALZ
Type: Basic ejector with maximum suction capacity
Model: SEM 100-SDA
Part No.: 10 02 01 00320/3 K04 HH

Size: 100
Degree of evacuation: 85 %
Suction rate (max): 64.3 m³/h
Air consumption (during evac.): 22.6 m³/h
Noise level (free): 90 dB
Pressure optimal: 5 bar
Int. hose diameter (recom.) comp.-air: 9 mm
Int. hose diameter (recom.) vacuum side: 32 mm
Ambient temperature: 0 … 50 °C
Connection: 1″ & 1/4″
