SCHMERSAL AZM 161SK-33rka-024 M 16 SOLENOID LATCHING SAFETY INTERLOCK SWITCH

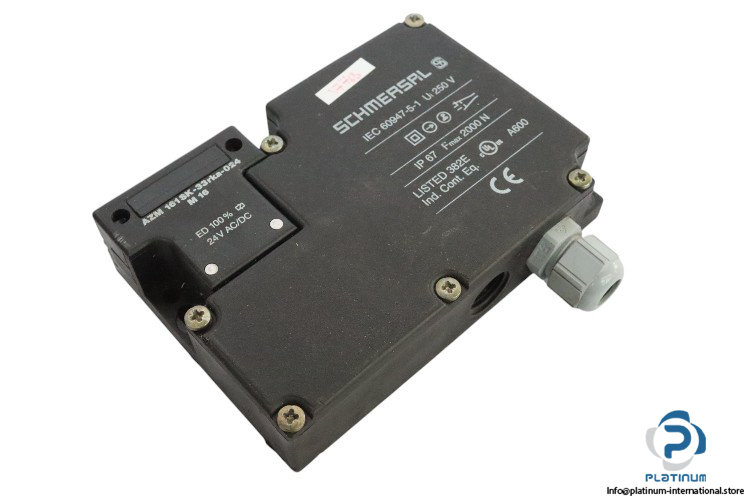

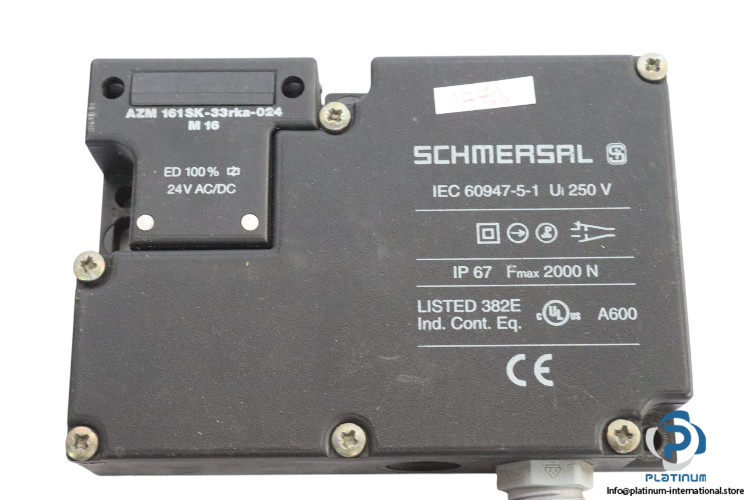

Schmersal AZM 161SK-33rka-024 M 16 Solenoid Latching Safety Interlock Switch

The Schmersal AZM 161SK-33rka-024 M 16 Solenoid Latching Safety Interlock Switch is a high-performance safety device designed to ensure secure interlocking and prevent unauthorized access to hazardous machinery or equipment. With its robust construction, high locking force, and durable thermoplastic housing, this interlock switch is ideal for demanding industrial environments.

• Manufacturer: Schmersal
• Type: Solenoid Latching Safety Interlock Switch
• Model: AZM 161SK-33rka-024 M 16

Technical Specifications:

• Power Supply: 24 V AC/DC
• Rated Insulation Voltage: 250 V AC
• Rated Impulse Withstand Voltage: 6 kV
• Contact Rating: 2A (230VAC)
• Solenoid Locking Force: 2,000 N
• Solenoid Duty Cycle: 100%
• Contact Configuration: Double-pole, double-break with electrically separated contact bridges
• Short Circuit Protection: Fuse 6A
• Type Terminals: Screw terminals
• Solenoid Power Consumption: 10W
• Housing Material: Glass-fiber reinforced self-extinguishing thermoplastic
• Degree of Protection: IP67
• Operating Temperature: -25 to 40°C

With its high solenoid locking force and 100% duty cycle, the Schmersal AZM 161SK-33rka-024 M 16 Solenoid Latching Safety Interlock Switch provides maximum safety for industrial applications, ensuring the secure operation of machinery while offering robust protection against environmental hazards.
