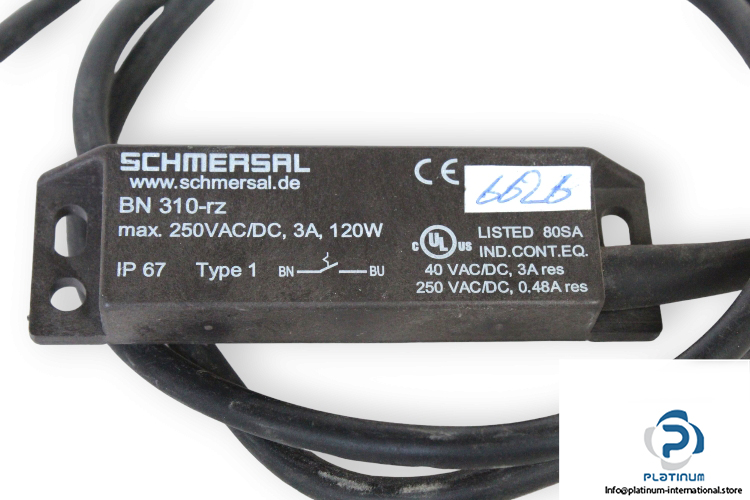

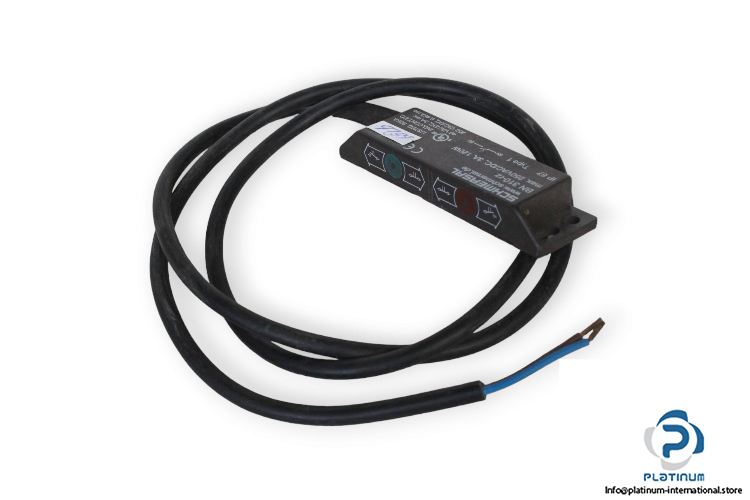

Schmersal BN 310-RZ Magnetic Sensor

Manufacture: Schmersal
Type: Magnetic Sensor
Model: BN 310-RZ

Switching voltage: 250 V AC/DC
Switching current, Max: 3 A
Switching Power: 120 W
Housing material: Glass-fiber, reinforced thermoplastic
Number of snap-in contacts: 1
Actuating panels: lateral
Actuating element: Magnet
Actuating speed, max: 18 m/s
Mounting: Enclosure with mounting slots
Length of cable: 1 m
Termination: Cable
Wire cross-section: 0.75 mm²
Wire cross-section: 18 AWG
Material of the Cable mantle: H03VV-F
Degree of protection: IP67
Ambient temperature: -25 … +75 °C
Dimensions: 13 x 88 x 25 mm
