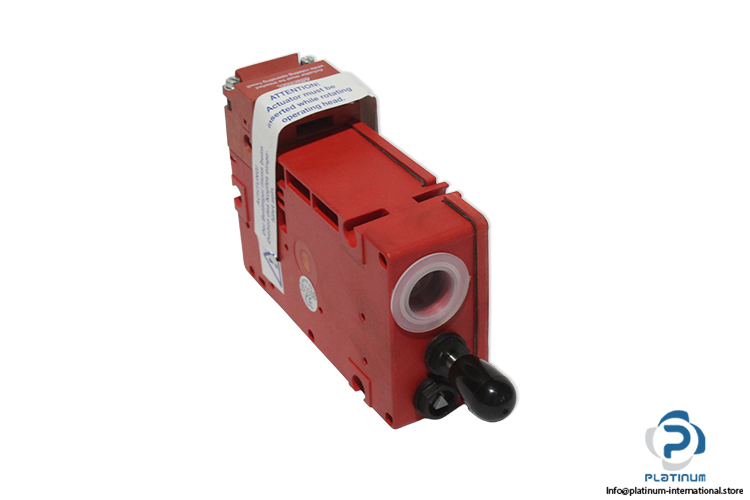

Schmersal TZFCWS24VDC/96 Solenoid Interlock Switch
جديد
متوفر1 وحدةجاهز للشحن
Solenoid-Latching Interlock Switch The Schmersal TZFCWS24VDC/96 is a 24 V DC electromechanical interlock switch with 1500 N hold force and IP65/67 protection for industrial safety applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Rated Control Voltage | 24 V DC |
| Rated Operating Voltage | 24 V DC |
| Rated Insulation Voltage Ui | 250 V AC |
| Rated Impulse Voltage Uimp | 2.5 KV |
| Power Consumption Max. | 8.5 W |
| Working Principle | Electromechanical |
| Contact | Normally Open (NO) / Normally Closed (NC) |
| Contact Rating | 230 V AC / 24 V DC / 4 A |
| Hold Force | 1500 N |
| Connection | 1 Cable Entry M20 x 1.5 |
| Material | Glass-Fibre, Reinforced Thermoplastic |
| Protection Class | IP65/67 |
| Ambient Temperature | 0 … 50 °C |
| Dimensions | 129 x 41 x 92.5 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103957 |
| Weight | 0,58 |
