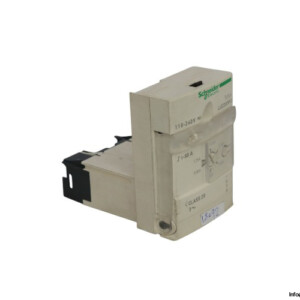

Schneider Electric LUCB05B Advanced Control Unit
وحدة التحكم المتقدمة LUCB05B من Schneider Electric / Telemecanique وحدة موثوقة للتحكم في المحرك والحماية مصممة للتطبيقات الصناعية. تتميز بتشغيل 690V AC، دائرة تحكم 24V AC، حماية حرارية (1.25-5A)، وتركيب قابلة للتركيب.
Schneider Electric / Telemecanique LUCB05B Advanced Control Unit
The Schneider Electric / Telemecanique LUCB05B is a high-performance Advanced Control Unit designed for efficient motor control and protection in industrial applications. It ensures precise thermal protection, reliable operation, and seamless integration with three-phase motor systems.
Key Product Details:
Manufacturer: Schneider Electric / Telemecanique
Type: Advanced Control Unit
Model: LUCB05B
Order No.: 036414
The LUCB05B is an ideal solution for industrial motor control, offering robust motor protection, flexible voltage operation, and a compact design for seamless installation.
| Device Application | Motor control, Motor protection |
| Rated Operational Voltage | 690 V AC |
| Control Circuit Voltage | 24 V AC |
| Thermal Protection Adjustment Range | 1.25 to 5 A |
| Motor Power | 1.5 kW at 400 V AC |
| Rated Impulse Withstand Voltage | 6 kV |
| Network Frequency | 40 to 60 Hz |
| Load Type | 3-phase motor |
| Fixing Mode | Plug-in |
| Ambient Air Temperature for Operation | -25 to 70 °C |
| Dimensions (W x H x D) | 45 x 66 x 60 mm |
