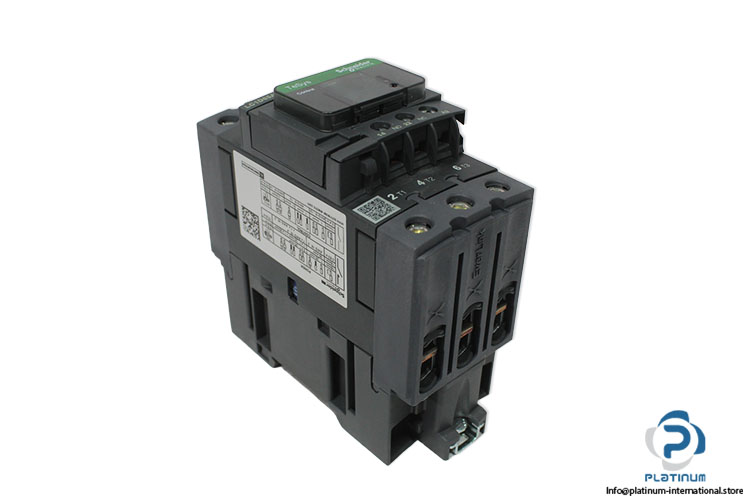

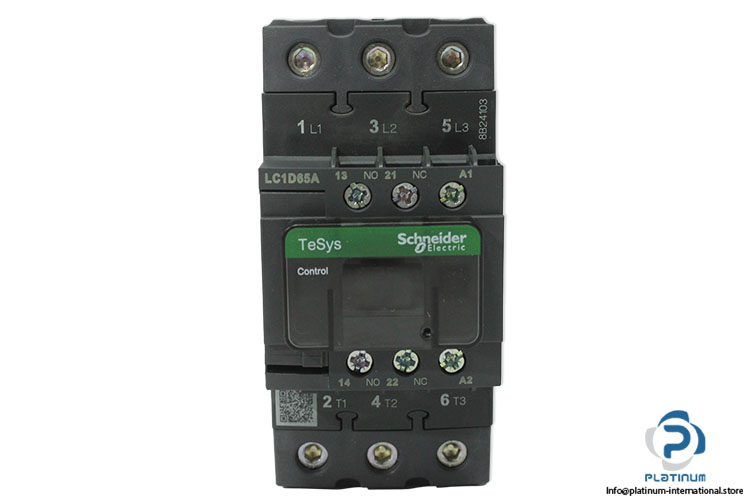

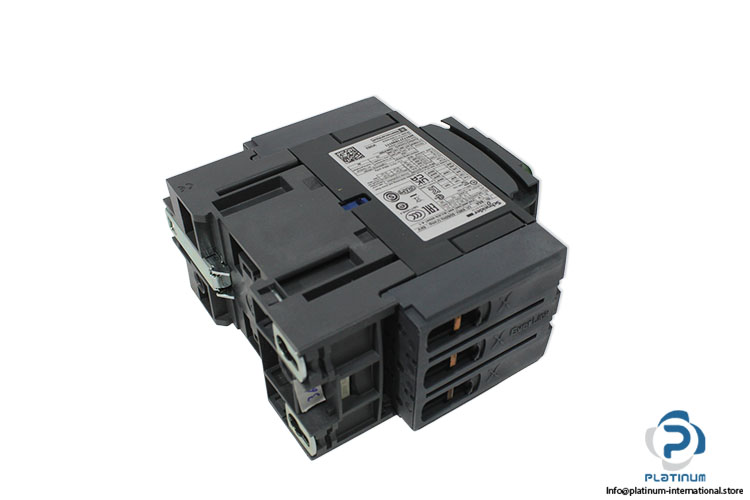

Schneider LC1D65AP7 Contactor
جديد
متوفر1 وحدةجاهز للشحن
Contactor Schneider Telemecanique LC1D65AP7 TeSys Deca 3-pole contactor with a 230 V AC control circuit, rated up to 65 A AC-3, suitable for industrial motor control and resistive load applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| code | 8B24103, LC1D65AP7-D, 940902 |
| Control circuit voltage Uc | 230 V AC 50/60 Hz |
| Range | TeSys,TeSys Deca |
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Device short name | LC1D |
| Contactor application | Resistive load,Motor control |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz |
| Power circuit | <= 300 V DC |

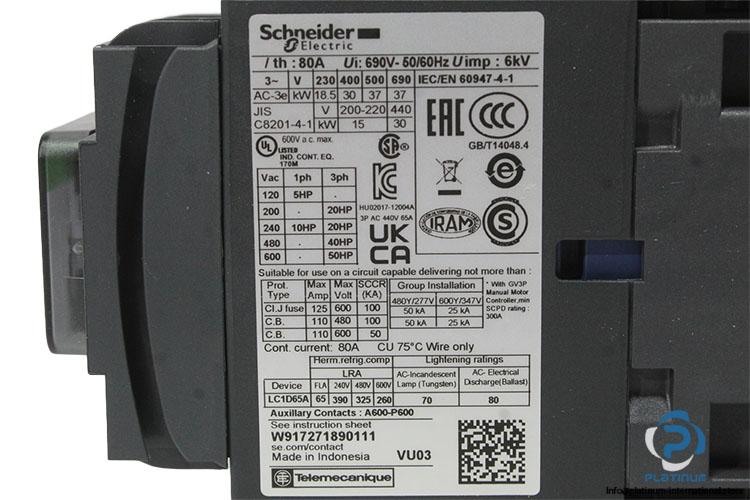

| [Ie] rated operational current | 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit/65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit/65 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |

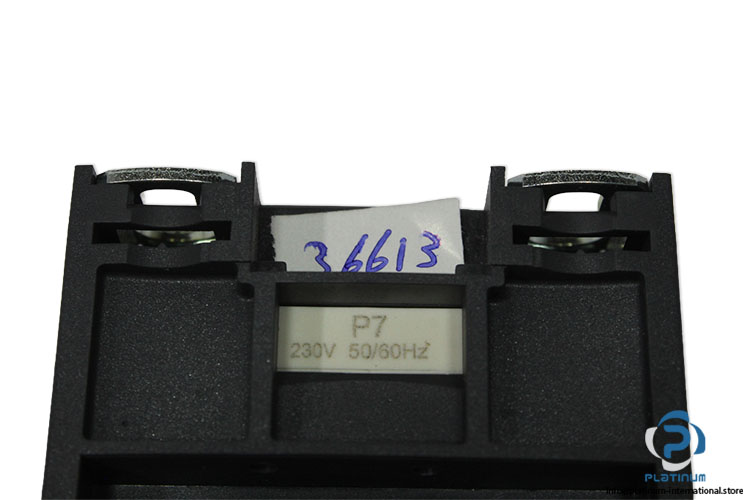

| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| Motor power kW | 18.5 kW at 220/230 V AC 50/60 Hz (AC-3)/30 kW at 380/400 V AC 50/60 Hz (AC-3) |
| Compatibility code | LC1D |
| Pole contact composition | 3 NO |
| Auxiliary contact composition | 1 NO + 1 NC |
| Auxiliary contacts type | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1/type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Standards | EN 60947-4-1 |
| IEC 60335-2-40 | Annex JJ |
| UL 60335-2-40 | Annex JJ |
| IEC 60335-1 | Clause 30.2 |
| Height | 122 mm |
| Width | 55 mm |
| Depth | 120 mm |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1099332 |
| Weight | 0,93 |
