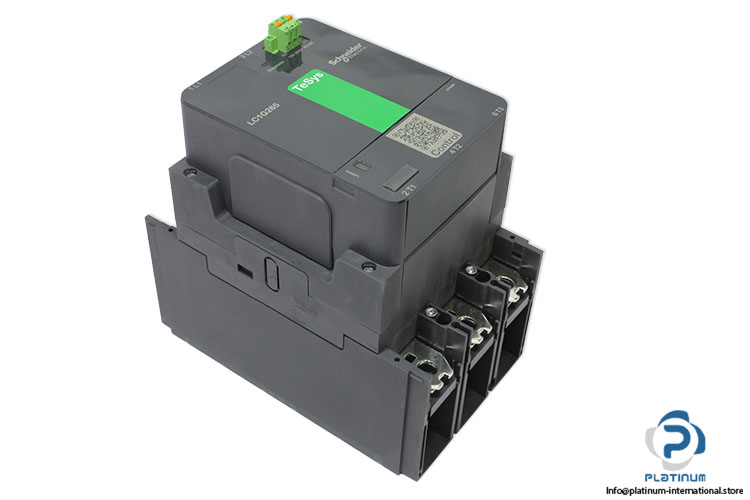

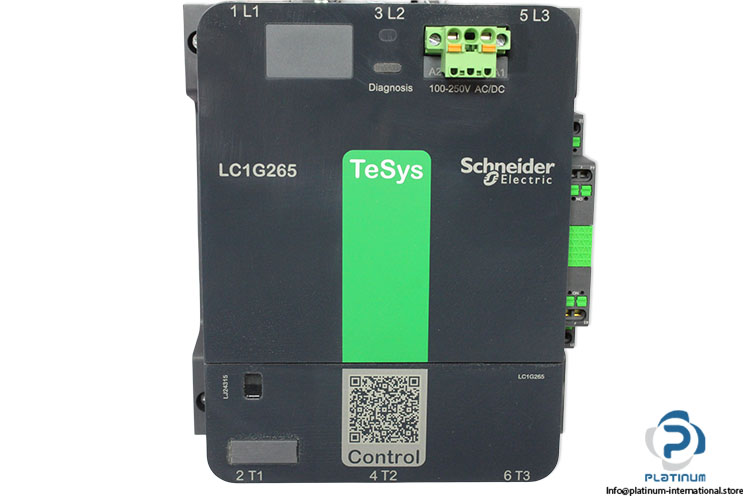

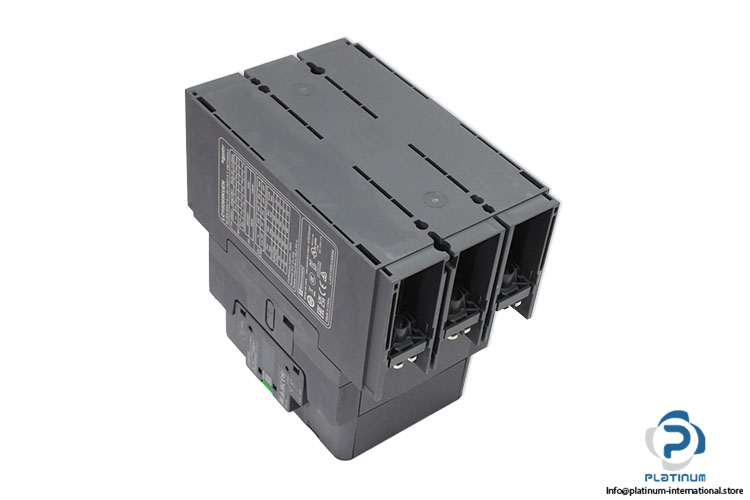

Schneider LC1G265KUEN Power Contactor
جديد
متوفر1 وحدةجاهز للشحن
SCHNEIDER TELEMECANIQUE LC1G265KUEN High Power Contactor High-capacity TeSys Giga contactor featuring 3 poles, 265 A AC-3 rating, 1000 V operational voltage, and wide-range AC/DC control voltage for industrial motor control and power switching applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| SN | 3606481921963 |
| Short name | LC1G265 |
| Code | C- 1804499 |
| Range | TeSys |
| Range of product | TeSys Giga |
| Device short name | LC1G |
| [Ue] rated operational voltage | 1000 V AC 50/60 Hz/ 460 V DC |
| [Ie] rated operational current | 385 A (at <40 °C) at 1000 V AC-1 |
| [Uc] control circuit voltage | 100...250 V AC 50/60 Hz,100...250 V DC |
| No. of Poles | 3 |
| Compatibility code | LC1G |
| Auxiliary contact composition | 1 NO + 1 NC |
| Continuous current | 340A |
| Rated insulation voltage | 1000 V |
| Motor Power | 132 kW at 380...400 V AC 50/60 Hz (AC-3e) |
| Rated impulse withstand voltage [Uimp] | 8 KV |
| Ambient air temperature for operation | -25…60 °C |
| Mounting Support | Plate |
| Standards | EN/IEC 60947-4-1,EN/IEC 60947-5-1,UL 60947-4-1,CSA C22.2 ,No 60947-4-1,JIS C8201-4-1,JIS C8201-5-1,IEC 60335-1:Clause 30.2 |
| Height | 225 mm |
| Width | 140 mm |
| Depth | 226 mm |

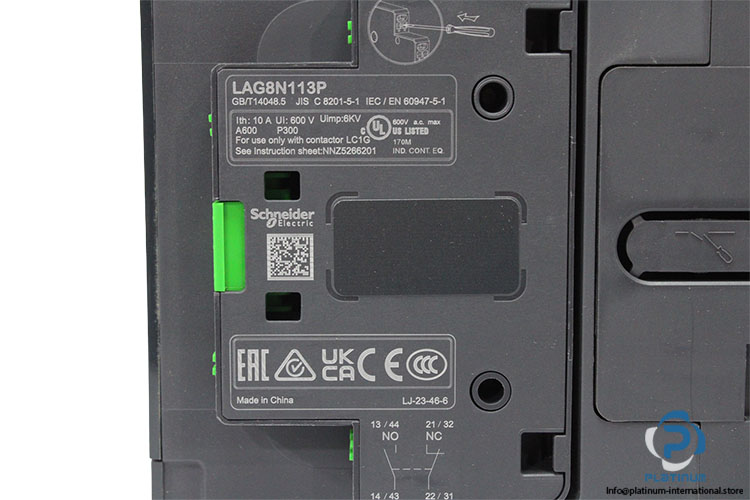

| Attached with | SCHNEIDER LAG8N113P auxiliary contact block |
| Stock key | CON003 |
| Condition | New |
| SKU | 1099422 |
| Weight | 7,9 |
