Schneider LX1D8P7 Contactor Coil
جديد
متوفر1 وحدةجاهز للشحن

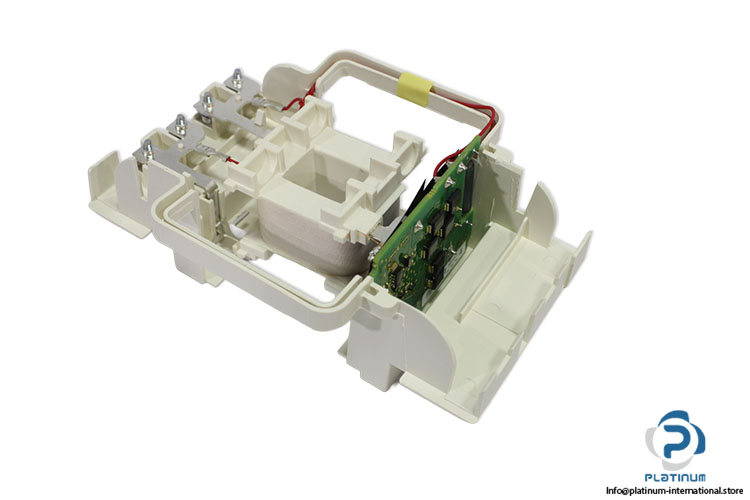

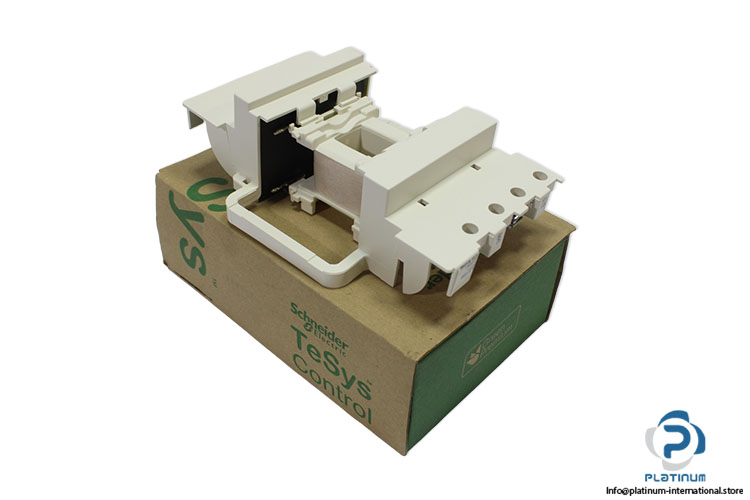

SCHNEIDER ELECTRIC LX1D8P7 Contactor Coil Industrial contactor coil from the SCHNEIDER ELECTRIC TeSys range, designed for LC1D150 and LC1D115 contactors. Features 230 V AC operation, reliable switching performance, and compatibility with demanding control applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| SN | 3389110868395 |
| Part No. | 086839 |

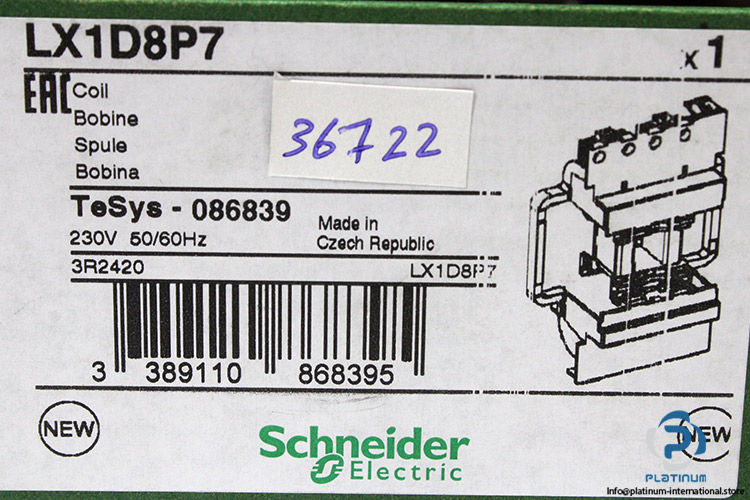

| Code | 3R2420, LX1D8P7 |

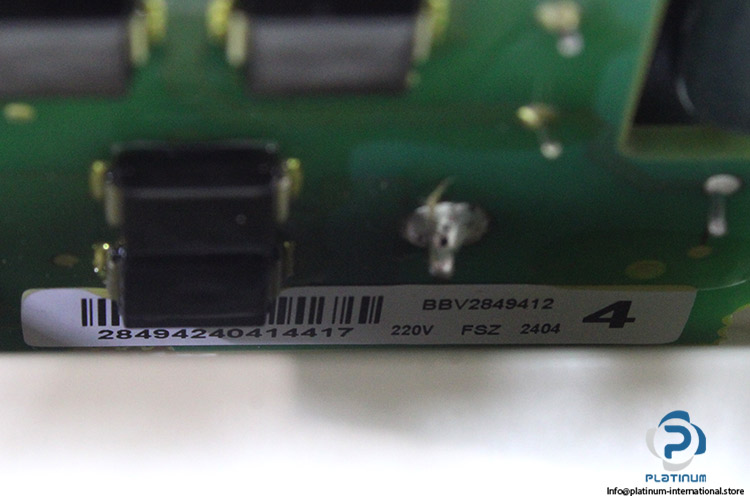

| Ref No | BBV2849412, 28494240414417 |
| Range | TeSys |
| Product or Component Type | Contactor coil |
| Device short name | LX1D8 |
| Product Compatibility | LC1D150,LC1D115 |

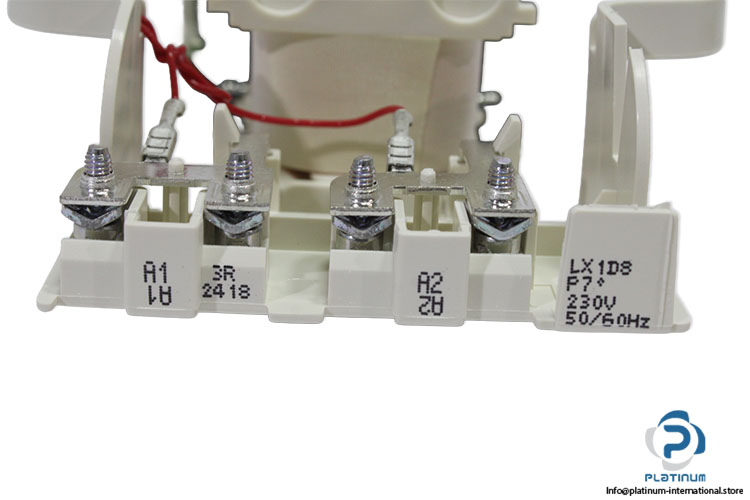

| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits | Drop-out 0.35...0.55 Uc at 50/60 Hz (at 131 °F (55 °C)) |
| Operational | 0.8...1.15 Uc at 50/60 Hz (at <131 °F (55 °C)) |
| Inrush power in VA | 280…350 VA 60 Hz cos phi 0.9 (at 68 °F (20 °C)) |
| Hold-in power consumption in VA | 2…18 VA 60 Hz cos phi 0.9 (at 68 °F (20 °C)),2…18 VA 50 Hz cos phi 0.9 (at 68 °F (20 °C)) |
| Heat dissipation | 3…4.5 W 50/60 Hz |
| Ambient air temperature for operation | -5…60 °C |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1099434 |
| Weight | 0,3 |
