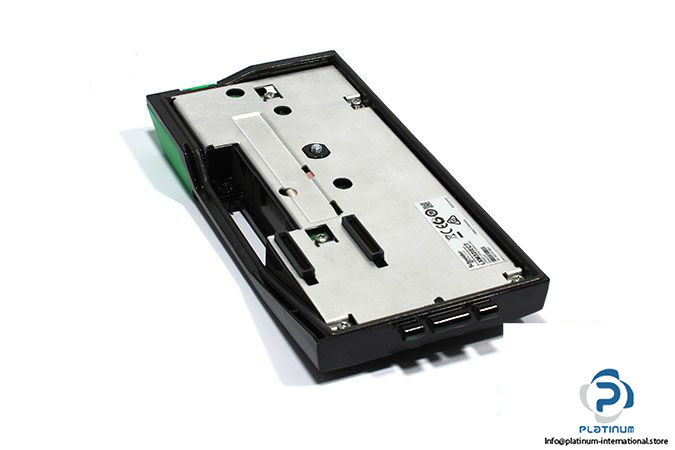

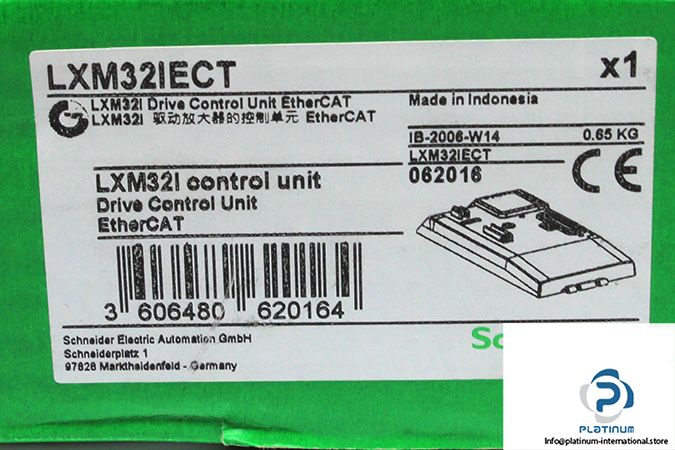

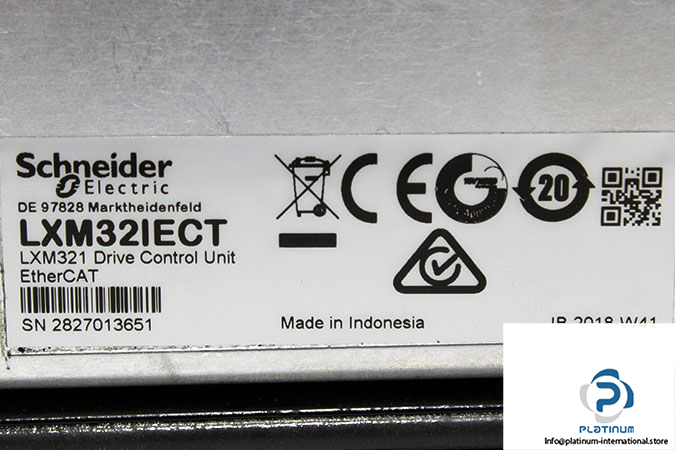

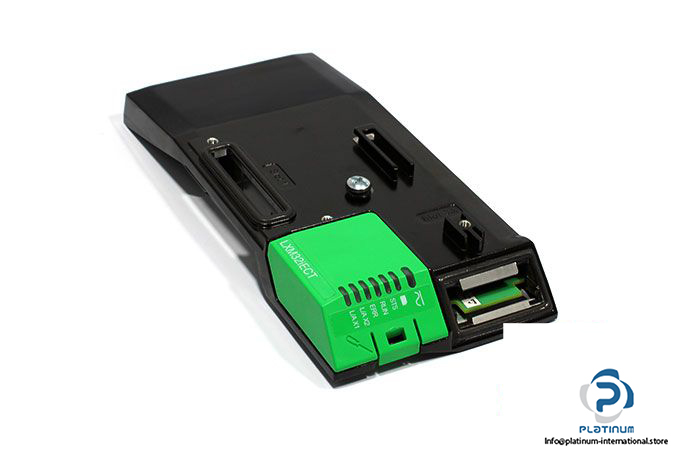

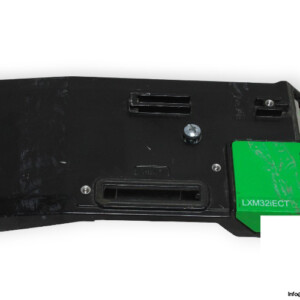

Schneider LXM32IECT Drive Control Unit

Manufacturer: Schneider

Type: Drive Control Unit

Family: Lexium 32i

Model: LXM32IECT

Device Short Name: LXM32i

Format of The Drive: Board

Input Number: 2 Safety Inputs / 4 Logic Inputs

Input Type: Safety (STO_A, STO_B Terminals) / Logic (DI Terminals)

Discrete Input Voltage: 24 V DC for (Capture, Logic, Safety)

Output Number: 2

Output Type: Logic Outputs (DO) 24 V DC

Discrete Output Voltage: <= 30 V DC
Braking Current: 50 mA

Communication Interface: EtherCAT, Integrated

Connector Type: RJ45 for Modbus / M12 for EtherCAT

Protection Proof: IP65

Operation Temperature: 0 … 50 °C

Weight: 0.64 kg
