SEW DRL132S4BE11HR/FL/IS/TF/AS7W Asynchronous Servomotor
جديد
متوفر1 وحدةجاهز للشحن

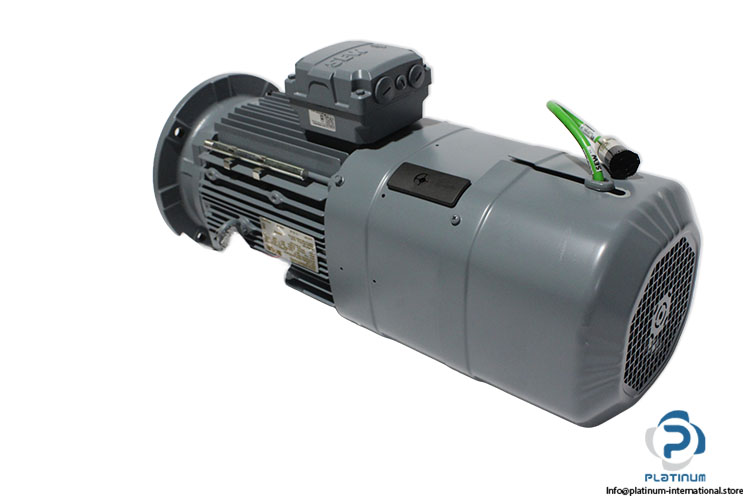

Asynchronous Servomotor SEW DRL132S4BE11HR/FL/IS/TF/AS7W asynchronous servomotor with 2100 rpm rated speed, 150 Nm maximum torque, integrated brake, and encoder cable for industrial drive applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

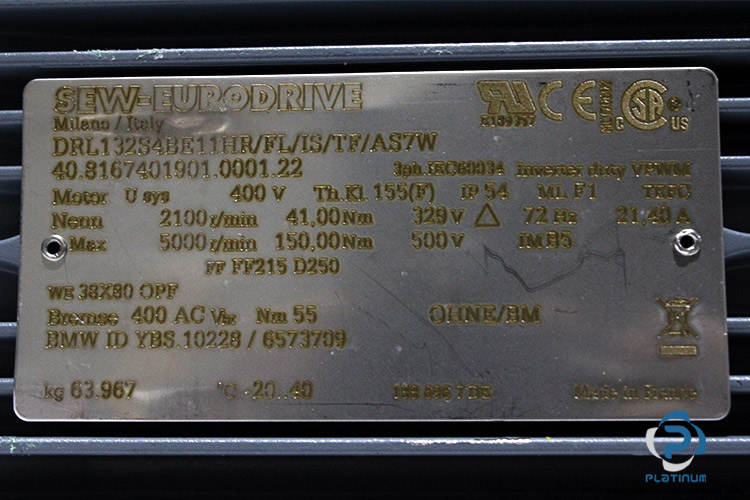

| Part No. | 40.8167401901.0001.22 |
| Pos. no. | 100 |
| No. of main groups | 1 |
| motor speed [r/min] | 2100 |
| Mounting position | B5 |
| Max. motor speed [rpm] | 5000 |
| Max. motor torque [Nm] | 150,00 |
| Motor frequency [Hz] | 72 |
| Rated speed nN [rpm] | 2100 |
| Nominal torque [Nm] | 41,00 |
| Cyclic duration factor S1-S10 | S1 |
| Maximum motor voltage [V] | 500 |
| System voltage [V] | 400 |
| Motor voltage [V] / conn. Type | 329 delta |
| Nominal current [A] | 21,40 |
| Thermal cl.[°C]/Enclosure[IP] | 155(F) / 54 |
| Design specification | Europe (CE)/USA (UR)/Canada (CSA) |
| Ambient temperature min. [°C] | -20 |
| Ambient temperature max. [°C] | 40 |
| Brake voltage [V]/-torque [Nm] | 400 AC / 55 |
| Brake rectifier nameplate | None/BM |
| TS symbol (motorflange) | FF215 D250 38X80 OPF |
| Brake model | BMW ID YBS.10228/ 6573709 |
| Brake voltage | 400 AC |
| Brake Torque | 55 Nm |
| Attached with | SEW 18123481.73 encoder cable |
| cable Length | 0.3m |
| Connection | Terminal box |
| Stock key | jo-004 |
| Condition | New |
| SKU | 1100847 |
| Weight | 63,5 |
