INCREMENTAL ENCODER
SEW Huebner OGS 72 DN 1024 R delivers precise 1024 PPR resolution with 1Vss sin/cos signal output, 24 VDC supply, and IP66 protection. EX-rated for explosion-proof industrial environments.102424VDC72CosDNEncoderExplosionFeedbackHuebnerIncrementalIndustrialIP66MotionOGSPPRProofRSewSignalSin
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

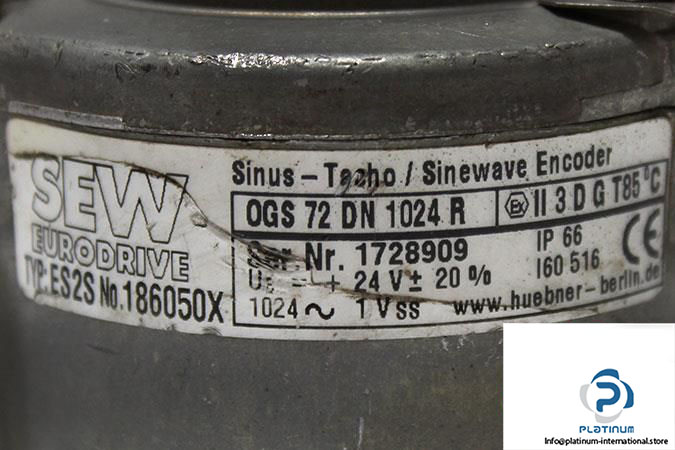

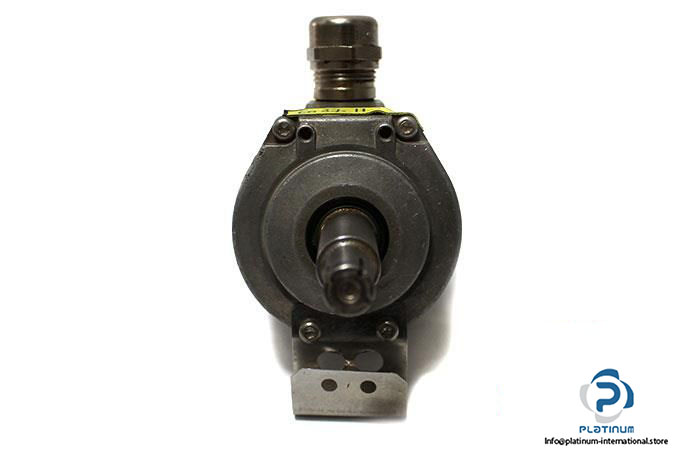

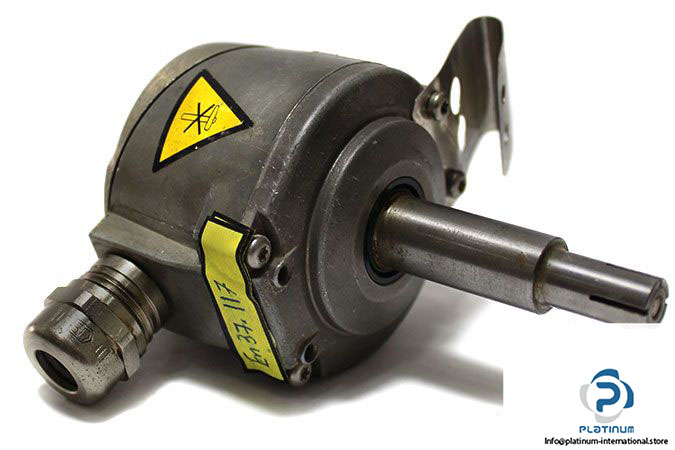

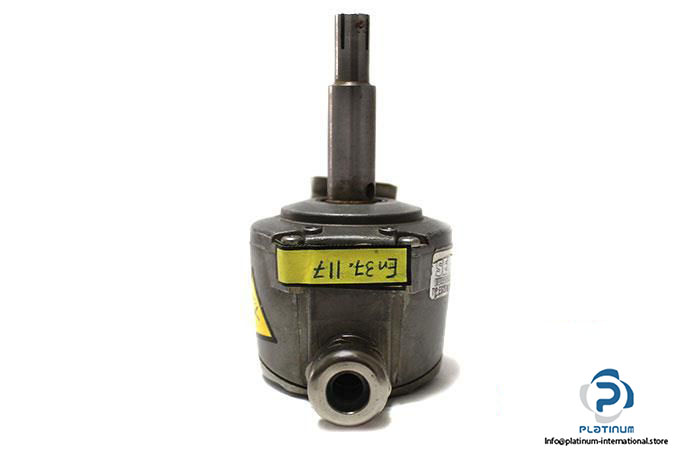

SEW HUEBNER OGS 72 DN 1024 R INCREMENTAL ENCODER
The SEW Huebner OGS 72 DN 1024 R is a high-performance incremental encoder designed for precise motion control in industrial systems. Featuring a rugged spread shaft design, high-resolution output, and EX explosion-proof certification, it offers reliable feedback in challenging environments.
Manufacturer: SEW Huebner
Type: Incremental Encoder
Model: OGS 72 DN 1024 R
Designation: ES2S
No.: 186050X
Ref No.: I60 516
Installed to: DT71-DV225, CT71-200CV
| Shaft Design | Spread Shaft |
| Voltage Supply | 24 VDC |
| Resolution | 1024 PPR (Pulse per Revolution) |
| Max. Current Consumption | 160 mA |
| Signal Output | Sin/Cos 1Vss |
| Max Speed | 10000 rpm |
| Max. Pulse Frequency | 120 kHz |
| Output Connection | Terminal Box |
| Protection Class | IP 66 |
| Explosion Proof | EX Rated |
