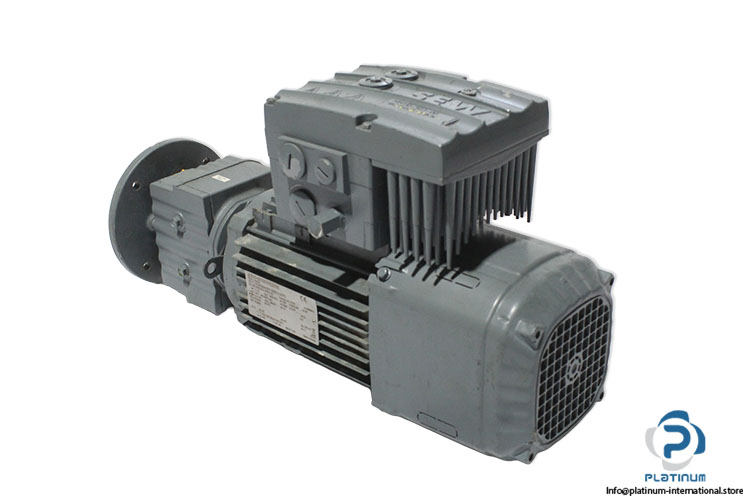

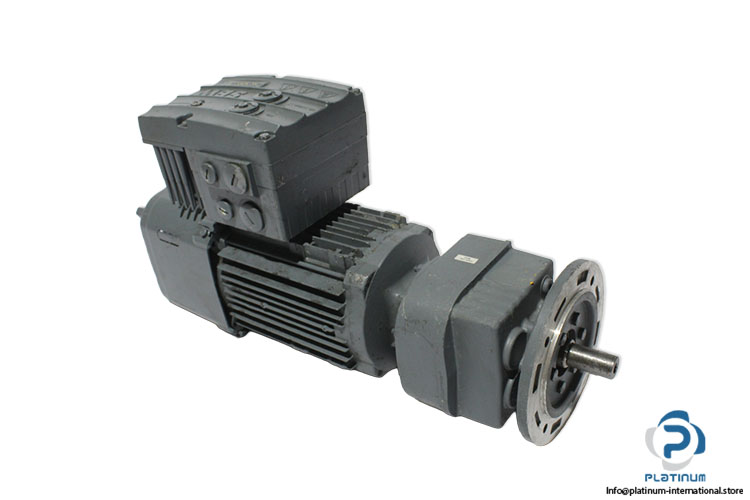

SEW RF17 DRN80M4/BE1/MM11/AVT1 Helical Gearmotor
مستعمل
متوفر2 وحداتجاهز للشحن
Helical Gearmotor The SEW-Eurodrive RF17 DRN80M4/BE1/MM11/AVT1 is a helical gearmotor with an integrated MOVIMOT MM11 inverter drive, delivering efficient speed control, reliable torque, and IE3 motor performance for industrial automation and power transmission systems.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

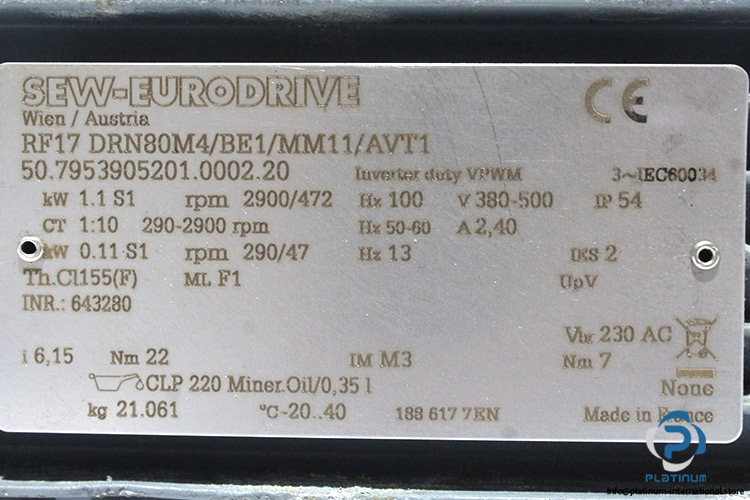

| Part No. | 50.7953905201.0002.20/50.7961338901.0002.21 |
| Input speed [r/min] | 2900 - 290 |
| Output speed [r/min] | 472 - 47 |
| Total ratio [i] | 6,15 |
| Ma max [Nm] | 54 |
| Output torque [Nm] | 22 |
| Service factor SEW-FB | 2,40 |
| Mounting position | M3 |
| ISO code | CLP 220 |
| Lubricant type | Miner.Oil |
| Lubricant volume [l] | 0,35 |
| Motor power [kW] | 1.1 / 0.11 |
| Motor mains power [kW] | 0,750 |
| Motor frequency [Hz] | 100 |
| Cyclic duration factor S1-S10 | S1 |
| Setting range (CT) | 1:10 |
| Motor frequency min. [Hz] | 13 |
| Motor voltage [V] | 380-500 |
| Line frequency [Hz] | 50-60 |
| MM rated main current [A] | 2,40 |
| Thermal cl.[°C]/Enclosure[IP] | 155(F) / 54 |
| International efficiency class | IE3 |
| Motor mains efficiency [%] | 82,9 |
| Ambient temperature min. [°C] | -20 |
| Ambient temperature max. [°C] | 40 |
| Brake voltage [V]/-torque [Nm] | 230 AC / 7 |
| Brake rectifier nameplate | None |
| MOVIMOT | MM11 |

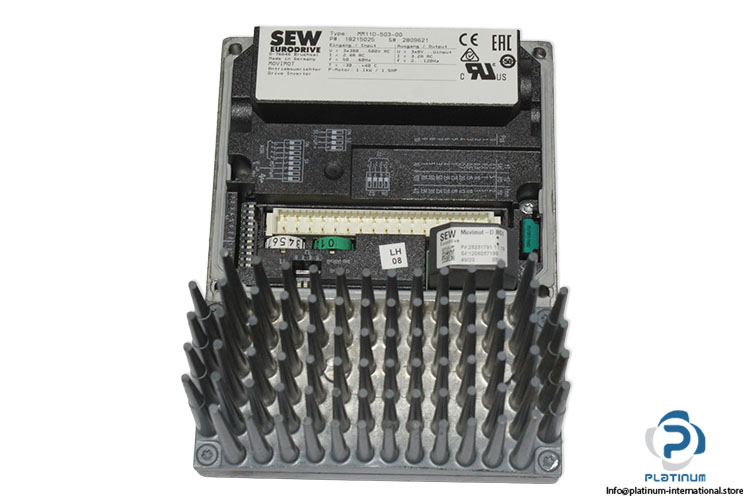

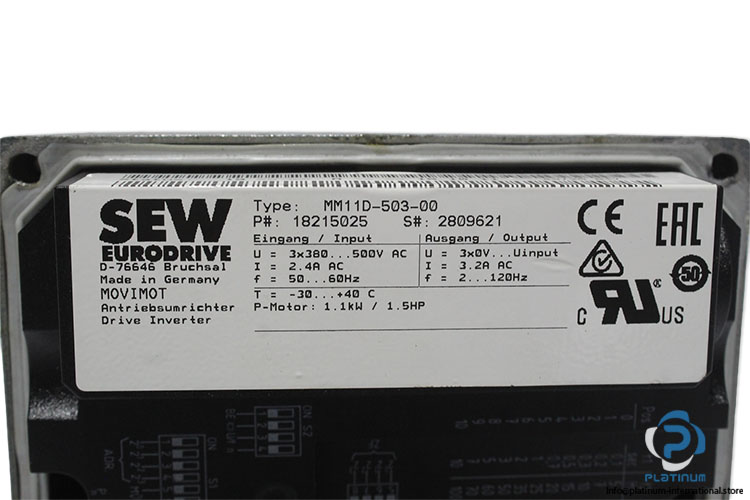

| Attached with | SEW MM11D-503-00 Movimot Inverter Drive |
| P no | 18215025 |
| S no | 2809621 |
| Range | MOVIMOT |
| Supply Voltage, Input | 3-Phase 380 … 500 V AC |
| Rated Current, Input | 2.4 A |
| Frequency, Input | 50 … 60 Hz |
| Power, Input | 1.1 kW / 1.5HP |
| Rated Voltage, Output | 3-Phase 0 … 380 – 500 V AC |
| Rated Current, Output | 3.2 A |
| Frequency, Output | 2 … 120 Hz |
| Temperature | -30 … 40 °C |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1100468 |
| Weight | 20,95 |
