SICK PSD01-2501 Safety Light Curtain
جديد
متوفر1 وحدةجاهز للشحن

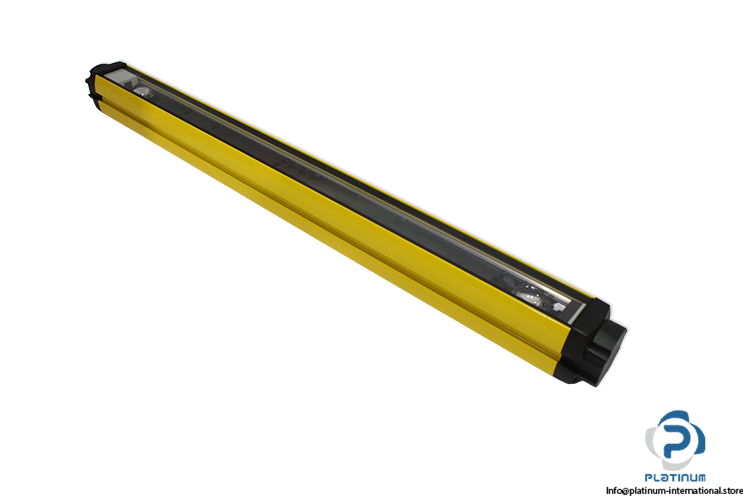

Safety Light Curtain The Sick PSD01-2501 Safety Light Curtain features active/passive operation, a 24 V DC supply, 2-beam detection, fibre-optic deflection technology, a 0.5 to 4.5 m scanning range, and a fast 10 ms response time. Its IP65-rated aluminum housing makes it ideal for industrial machine safety and personnel protection.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

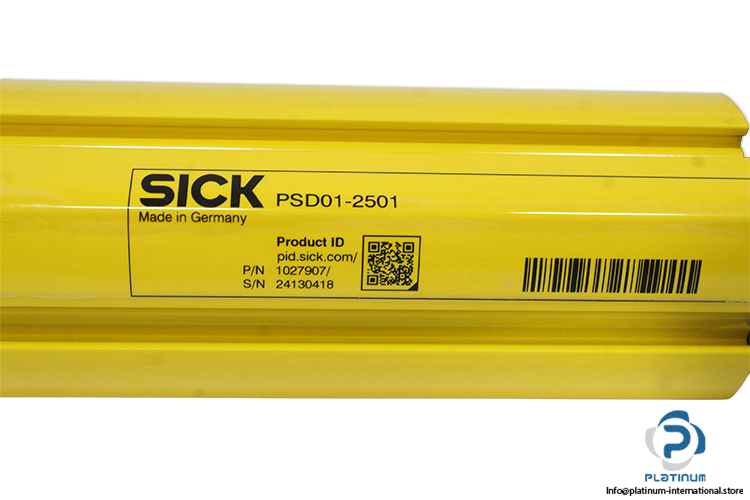

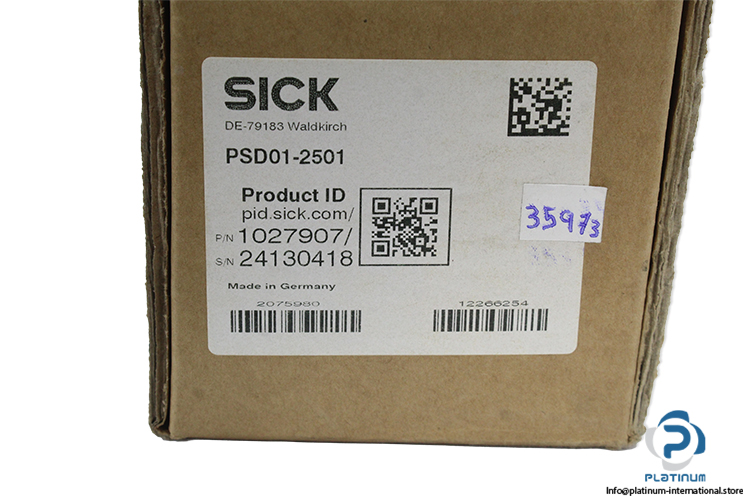

| Part No. | 1027907 |
| Serial No. | 24130418 |
| Code | 2075980, 12266254, ESP 085 9-14 |
| Functional principle | Active/passive |
| Supply Voltage | 24 V DC |
| Power Consumption | max. 0,6A |
| Current | 500mA |
| Output signal switching devices (OSSDs) | 2 PNP semiconductors, short-circuit protected, cross-circuit monitored |
| Type of diversion | Fibre-optic deflection |
| Scanning range | 0.5 m ... 4.5 m |
| Number Of Beams | 2 |
| Beam separation | 500 mm |
| Response Time | 10 ms |
| Wave length | 850 nm |
| Material Housing | Aluminum alloy ALMGSI 0.5, powder coated |
| Ambient operating temperature | –30 ... +55 °C |
| Protection Degree | IP65 (EN 60529) |
| Condition | New |
| Stock key | CON0043 |
| SKU | 1093306 |
| Weight | 2,21 |
