Siemens 1FK6040-6AK71-1TH0 Synchronous Servo Motor
جديد
متوفر2 وحداتجاهز للشحن
990,00$
SYNCHRONOUS SERVO MOTOR
Siemens 1FK6 040-6AK71-1TH0 synchronous servo motor with 0.80 Nm rated torque, 225 V, and 6000 min»¹ rated speed. Designed for high-speed, precision-controlled automation with IP64 protection and integrated brake system.040-6AK71-1TH01FK6225V6AutomationBrakeEquippedHighIndustrialIP64MotionmotorPolePrecisionServoSiemensSpeedSynchronous
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

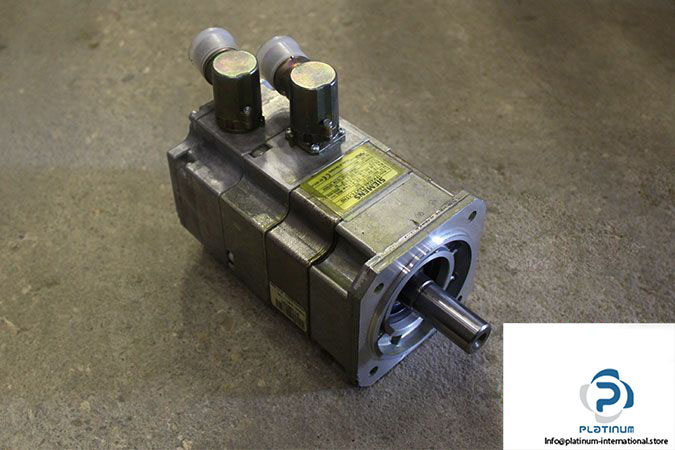

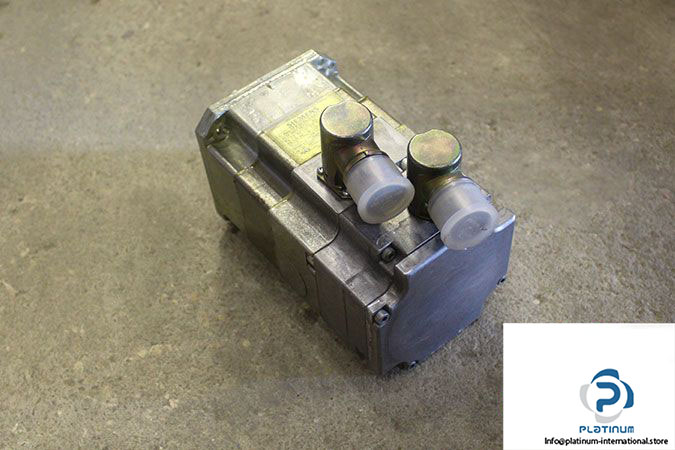

SIEMENS 1FK6 040-6AK71-1TH0 SYNCHRONOUS SERVO MOTOR
The Siemens 1FK6 040-6AK71-1TH0 is a high-performance synchronous servo motor designed for dynamic applications requiring precision, speed, and reliability. Engineered for industrial automation systems, it features a compact design, advanced braking, and exceptional torque handling. Ideal for demanding environments with high-speed cycles and tight tolerance needs.

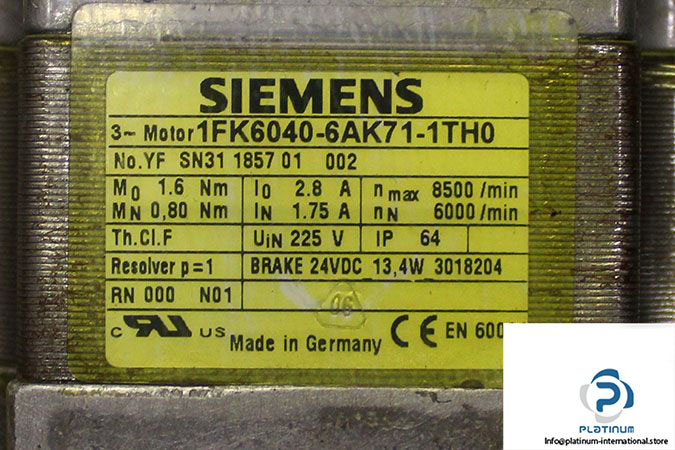

Manufacturer: Siemens
Type: Synchronous Servo Motor
Model: 1FK6 040-6AK71-1TH0
Part No.: SN31 1857 01 002
| Rated Voltage | 225 V |
| Rated Current | 1.75 A |
| Max. Current | 9.0 A |
| Standstill Current | 2.8 A |
| Rated Speed | 6000 min»¹ |
| Max. Speed | 8500 min»¹ |
| Rated Torque | 0.80 Nm |
| Max. Torque | 5.1 Nm |
| Standstill Torque | 1.6 Nm |
| Brake Voltage | 24 VDC |
| Brake Power | 13.4 W |
| Brake Model | 3018204 |
| Max. Braking Torque | 3.1 Nm |
| Shaft End | Smooth Shaft (No Keyway) |
| Radial Eccentricity Tolerance | N, With Holding Brake |
| Degree of Protection | IP64 |
| Thermal Class | F |
| Pole Number | 6 |
| Resolver | p=1 |
