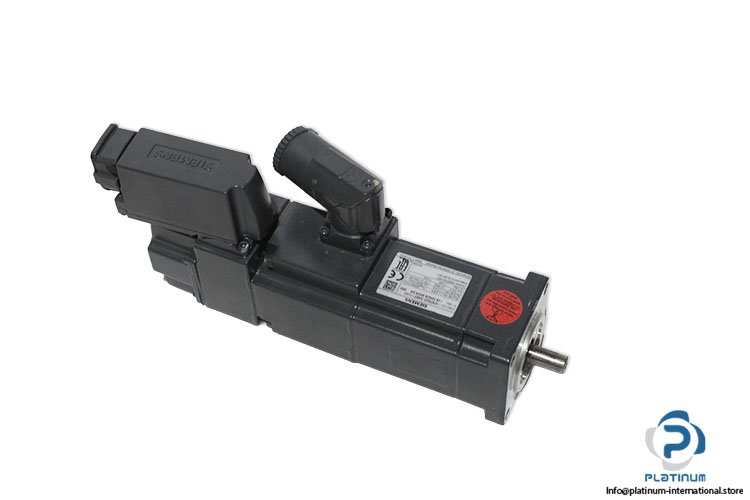

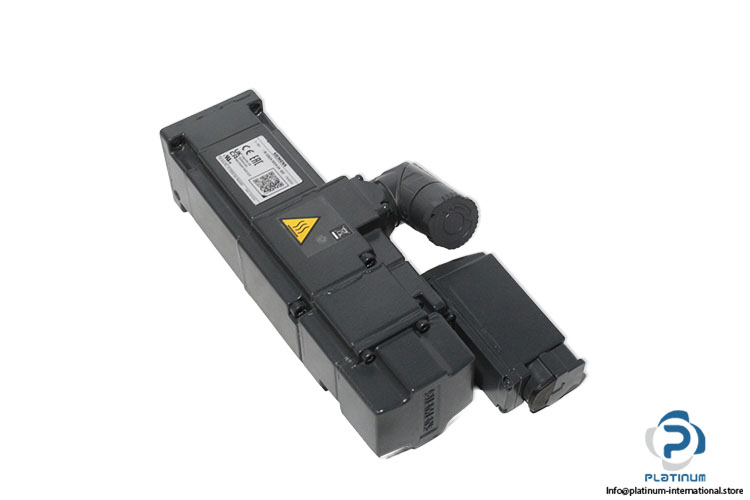

Siemens 1FK7022-5AK71-1LH3 Servomotor
جديد
متوفر1 وحدةجاهز للشحن
999,99$
Servomotor The SIEMENS 1FK7022-5AK71-1LH3 is a high-performance SIMOTICS 1FK7 servomotor featuring 6000 rpm rated speed, 0.6 Nm torque, IP64 protection, and integrated absolute encoder with holding brake.
1FK71FK7022-5AK71-1LH3AbsoluteACAutomationCNCEncoderHighIndustrialIP64MagnetmotorPermanentServoServomotorSiemensSimoticsSpeed
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Drive Family | SIMOTICS |
| Series | 1FK7 |

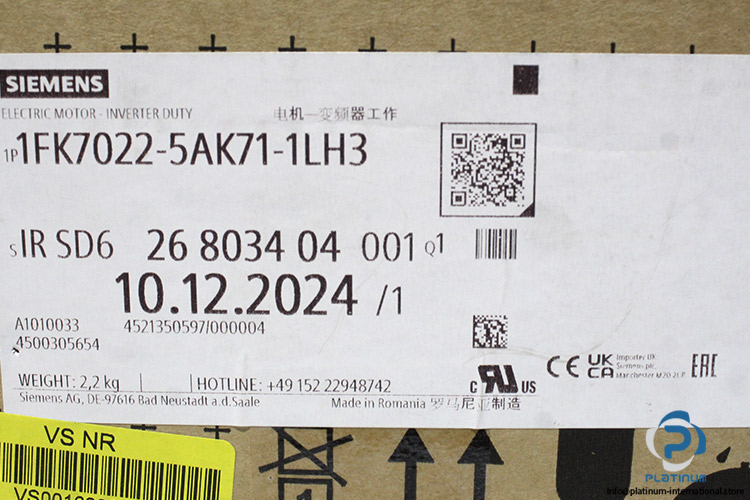

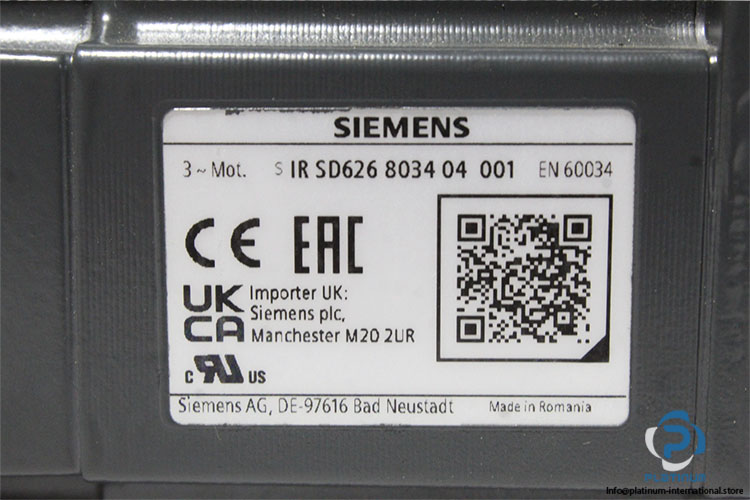

| Ref No. | IR SD626 8034 04 001 |
| Code | A1010033 /4521350597/000004 /4500305654 |
| Encoder model | AM20DQ M42 |

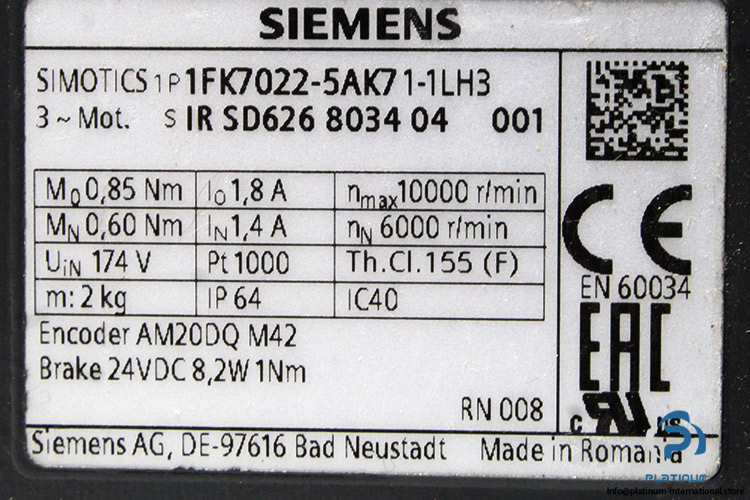

| Rated Voltage | 174 v |
| Rated speed (100 K) | 6,000 rpm |
| Max speed | 10,000 rpm |
| Number of poles | 6 |
| Rated torque (100 K) | 0.6 Nm |
| Rated current | 1.4 A |
| Static torque (60 K) | 0.70 Nm |
| Static torque (100 K) | 0.85 Nm |
| Stall current (60 K) | 1.50 A |
| Stall current (100 K) | 1.80 A |
| Moment of inertia | 0.350 kgcm² |
| Efficiency | 86.0 % |
| Torque constant | 0.46 Nm/A |
| Voltage constant at 20º C | 29.0 V/1000*min¯¹ |
| Motor type | Permanent-magnet synchronous motor |
| Shaft height | 28 |
| Cooling | Natural cooling |
| Radial runout tolerance | 0.035 mm |
| Degree of protection | IP64 |
| Design acc. to Code I IM B5 | (IM V1, IM V3) |

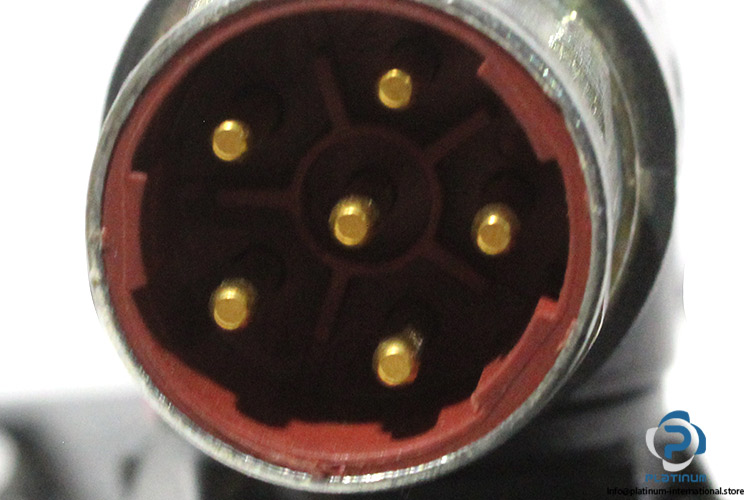

| Electrical connectors | Connectors for signals and power rotatable |
| Holding brake | with holding brake |
| Shaft end | Plain shaft |
| Encoder system | Encoder AM20DQ: absolute encoder 20 bits (resolution 1048576, encoder-internal 512 S/R) + 12 bits multi-turn (trav |
| Holding brake version | Permanent-magnet |
| brake Holding torque | 1.0 Nm |
| brake supply voltage | DC 24 V ± 10 % |
| brake Power | 8.2 w |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1096845 |
| Weight | 2,8 |
