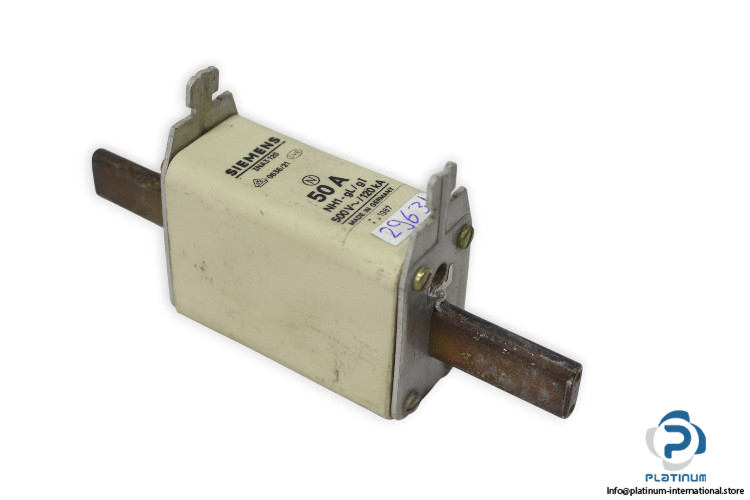

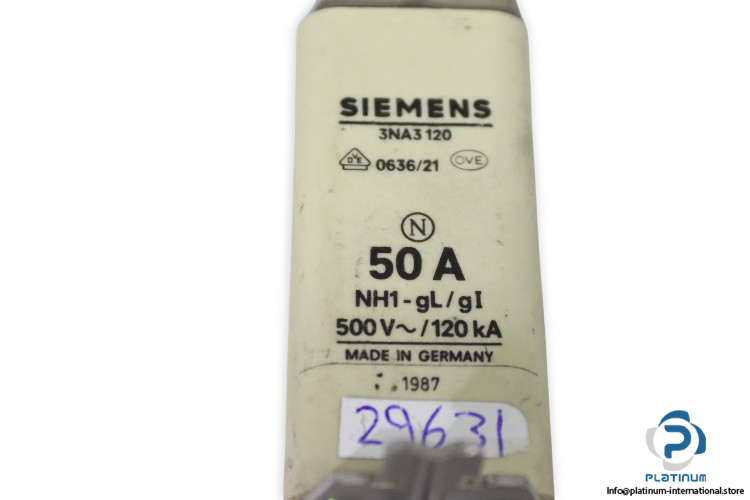

Siemens 3NA3 120 50A 500V Fuse-Link
مستعمل
متوفر2 وحداتجاهز للشحن
Fuse-Link
Siemens SENTRON NH1-GL/GI fuse-link (MRN: 3NA3120) with 500 V AC rating, 50 A current, 120 kA switching capacity, and LV HRC design for reliable low-voltage protection.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
Siemens SENTRON NH1-GL/GI Fuse-Link
The Siemens SENTRON NH1-GL/GI fuse-link (MRN: 3NA3120) is designed for reliable protection in low-voltage applications. Built to the LV HRC design, it ensures high switching capacity and safety in demanding industrial environments.
Manufacturer: Siemens
Product Brand: SENTRON
Type: Fuse-Link
Model: NH1-GL/GI
MRN: 3NA3120
| Design of Identification Indicator | Front Indicator |
| Design of Fuse Link | LV HRC Design |
| Size of Fuse System (DIN EN 60269-1) | NH1 |
| Operating Class | GL/GI |
| Circuit-Breaker / Design | 3NA |
| Operating Voltage | 500 V AC |
| Rated Operating Current | 50 A |
| Switching Capacity Current (IEC 60947-2) | 120 kA |
| Ambient Temperature Range | -5 / 40 °C |
| Width of Enclosure | 30 mm |
| Mounting Position | Any, preferably vertical |
| Standard | VDE 0636/21, OVE |
| Dimensions | 134 × 30 × 64 mm |
