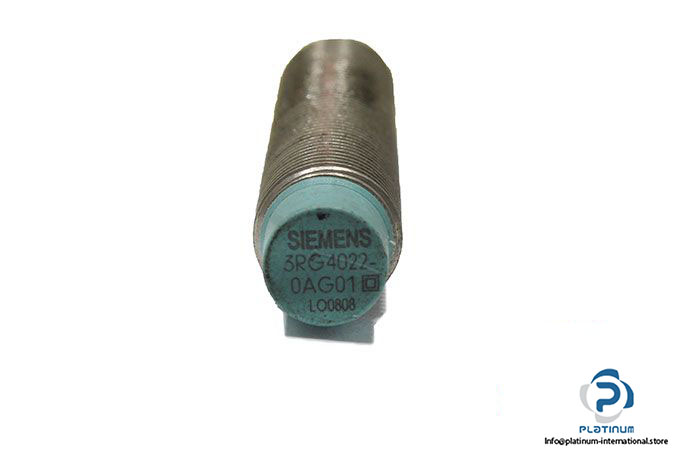

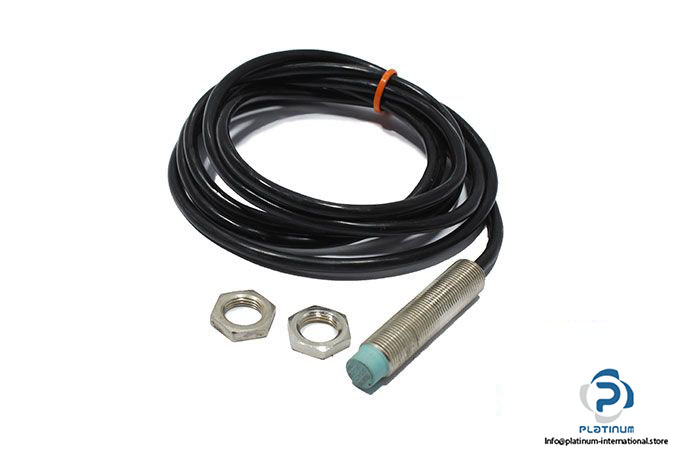

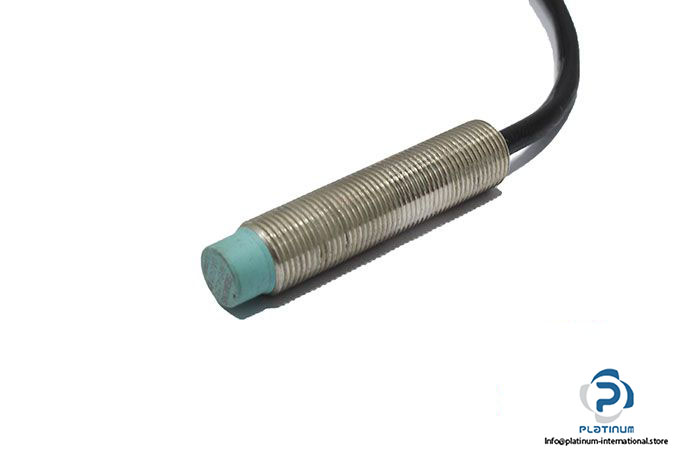

Siemens 3RG4022-0AG01 Inductive Sensor

SIEMENS Inductive Sensor 3RG4022-0AG01

SIEMENS Inductive Sensor 3RG4022-0AG01 is a high-quality inductive sensor designed for industrial applications. It offers reliable performance, high protection, and efficient sensing capabilities, suitable for various operational environments.

• Manufacturer: SIEMENS
• Type: Inductive Sensor
• MNR: 3RG4022-0AG01

Technical Data:

• Output Configuration: PNP / NO
• Sensing Range: 0 to 4 mm
• Supply Voltage: 15 to 34 VDC
• Switch Housing: M12
• Connection: Lead 2m
• Protection Class: IP67
• Max. Operating Current: 200 mA
• Operating Temperature: -25 to 85°C
• Kind of Forehead: Non-embedded
• Switching Frequency: Max. 800Hz
• Body Material: Brass
• Overall Length: 56 mm
• Body Plating: Nickel
• Cable Length: 2 m
• Ambient Temperature: -25 to +85 °C
