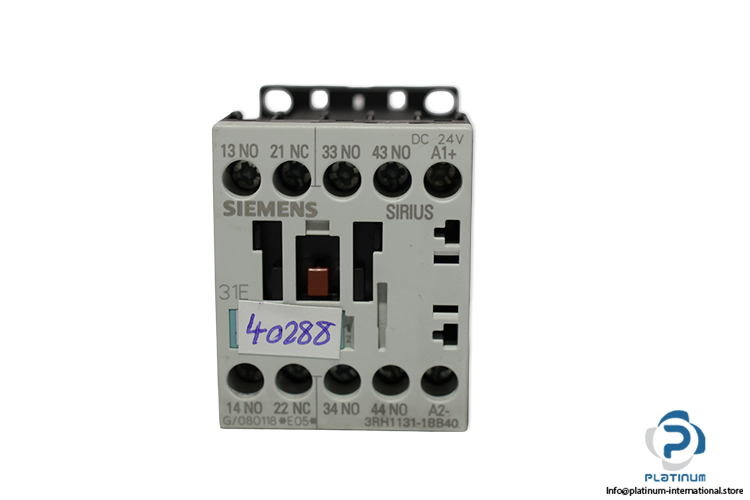

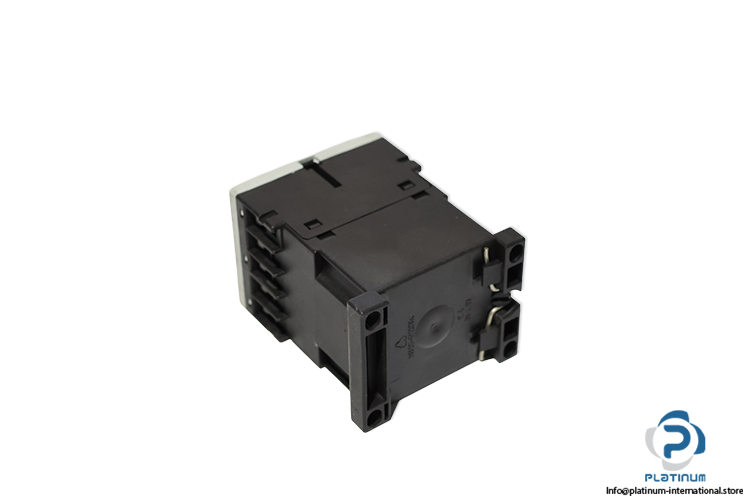

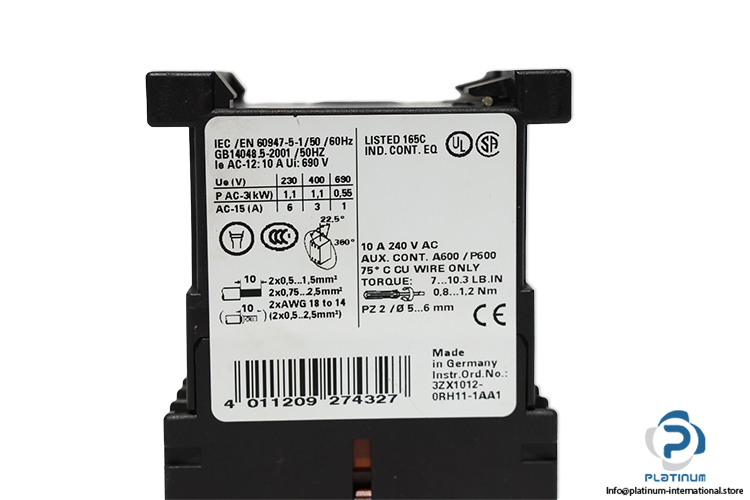

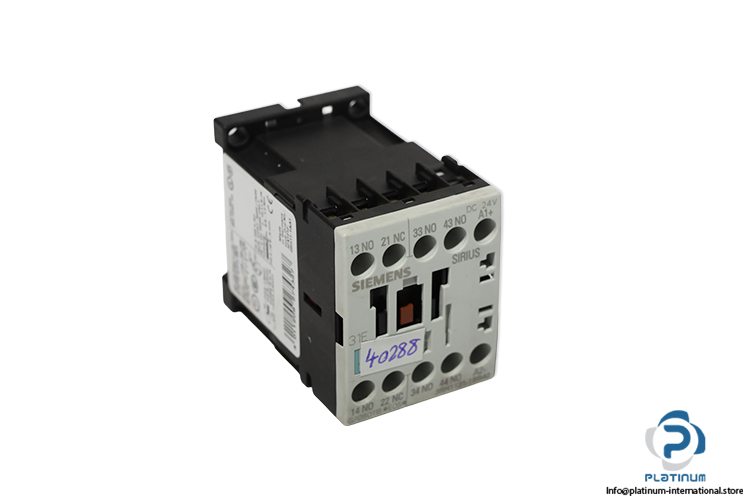

Siemens 3RH1131-1BB40 Contactor Relay
جديد
متوفر2 وحداتجاهز للشحن
Contactor Relay Siemens SIRIUS contactor relay with 24 V DC control supply, 3NO + 1NC contacts and compact S00 design for industrial automation and electrical control applications.
مستعمل
متوفر
هذا المنتج متوفر أيضًا بحالة مستعملة
عرض النسخة المستعملة ←
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Brand Name | Sirius |
| Successor Type | 3RH2131-1BB40 |
| Designation | Auxiliary Contactor |
| Size | S00 |
| Identification Number | 31E |
| Control Supply Voltage | 24 V DC |
| Rated Operating Current | 6 A (230 V AC)/3 A (400 V AC) |
| Auxiliary Contacts | 3 Normally Open/1 Normally Closed |
| Rated Insulation Voltage | 690 V AC |
| Power at 400 v | 1.1 kw |
| Rated Surge Voltage | 6 kV |
| Standard | IEC /EN 60947-5-1 |
| Protection Class IP | IP20 |
| Operation Ambient Temperature | -25 … 60 °C |
| Dimensions (W x D x H) | 45 x 72 x 57.5 mm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101481 |
| Weight | 0,25 |
