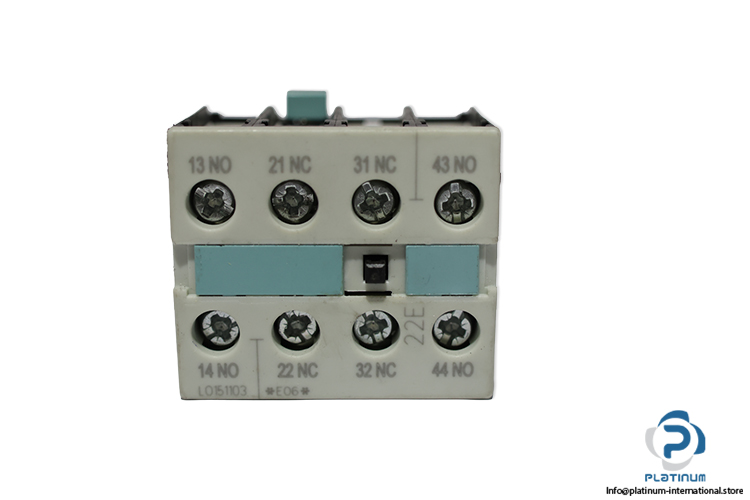

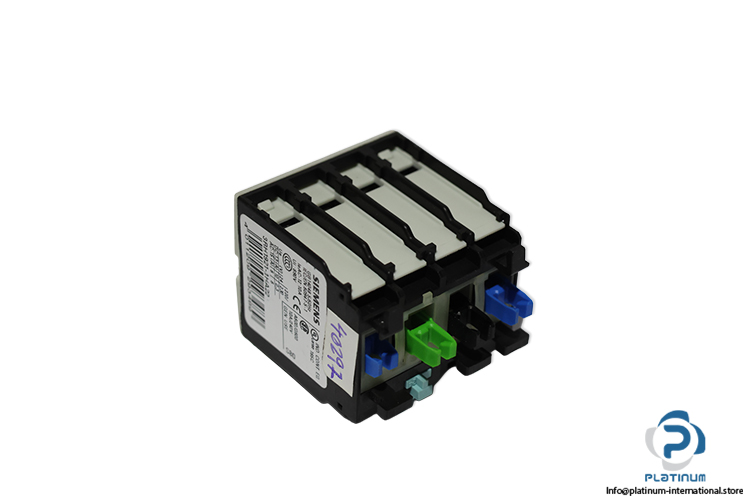

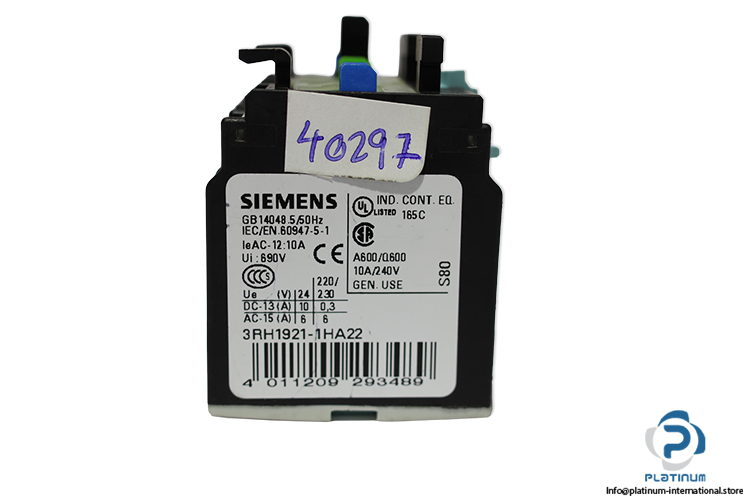

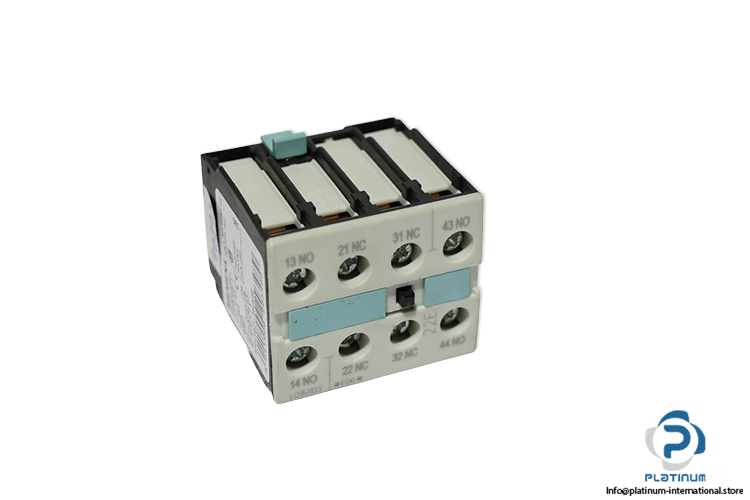

Siemens 3RH1921-1HA22 Auxiliary Switch Block
جديد
متوفر1 وحدةجاهز للشحن
Auxiliary Switch Block Siemens SIRIUS 3RH1 9211HA22 auxiliary switch block with 2 NO and 2 NC contacts, 690 V insulation voltage, IP20 protection, and snap-on mounting for industrial contactors and control systems.
مستعمل
متوفر 19,99$
هذا المنتج متوفر أيضًا بحالة مستعملة
عرض النسخة المستعملة ←
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Manufacture | Siemens |
| MNR | 3RH1 9211HA22 |
| Product brand name | SIRIUS |
| Used for | Contactor relay and power contactor |
| Insulation voltage Ui | 690 V |
| Surge voltage resistance rated value | 6 kV |
| Contact | 2 Normally closed, 2 Normally open |
| Operating current of auxiliary contacts at AC-12 | 10 A |
| General use | 10 A/240 V |
| Protection degree | IP20 |
| Mounting type | Snap-On mounting |
| Operating temperature | -25 … 60°C |
| Type of electrical connection | screw-type terminals |
| Standard | IEC 60947-5-1 |
| Dimensions | 44 x 38 x 51 mmConnection :screw-type terminals |
| Mounting Style | snap-on mounting |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101490 |
| Weight | 0,07 |
