Siemens 3SE5112-0CE01 Position Switch
Position Switch

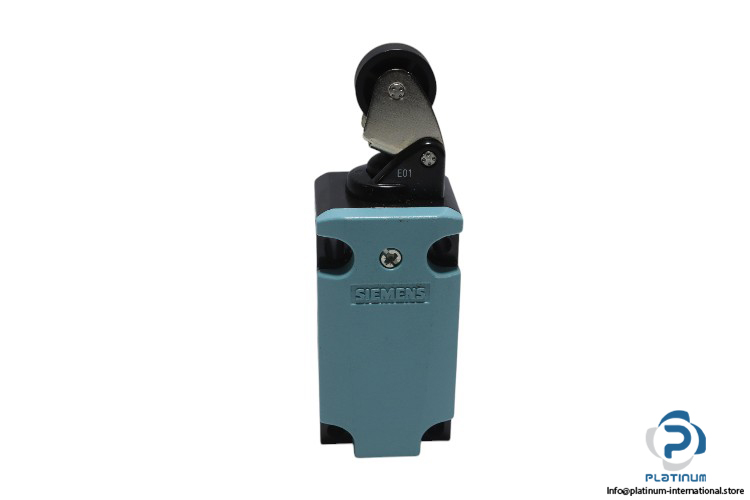

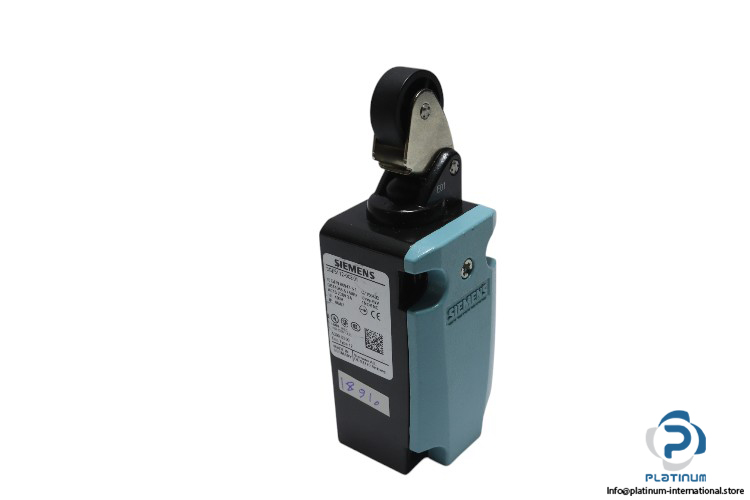

The **Siemens 3SE5 112-0CE01 Position Switch** offers **1 NO/1 NC output**, **IP66/IP67 protection**, **400 V insulation voltage**, and a **roller lever actuator** for industrial applications.Siemens 3SE5 112-0CE01 Position Switch
The **Siemens 3SE5 112-0CE01 Position Switch** is designed for reliable position detection and control in industrial automation. This switch features **1 NO/1 NC output configuration** and **snap action** contact operation, ensuring fast and precise switching. The **roller lever actuator** ensures easy and accurate mechanical movement. With an **insulation voltage of 400 V** and a **rated impulse withstand voltage of 6 kV**, this switch is built to withstand electrical surges and ensure safety. It has a **maximum switching voltage of 230 V** and can handle **up to 3 A contact current**. The **cable entry type** is **M20 x 1.5**, offering flexibility in wiring. Built to withstand harsh environments, this switch provides **IP66/IP67 protection**, making it dust and water-resistant. It operates in a wide **ambient temperature range of -25 to +85 °C**, making it versatile for a range of industrial applications.
Manufacturer: Siemens
Type: Position Switch
Model: 3SE5 112-0CE01
The **Siemens 3SE5 112-0CE01 Position Switch** is a durable and high-performing choice for industrial systems that require precise position detection in harsh environments.
| Output Configuration | 1 NO / 1 NC |
| Contact Operation | Snap action |
| Actuator Type | Roller lever |
| Insulation Voltage (Ui) | 400 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Switching Voltage Max. | 230 V |
| Contact Current Max. | 3 A |
| Connection | Cable entry type 1x (M20 x 1.5) |
| Protection Class | IP66 / IP67 |
| Ambient Operating Temperature | -25 to +85 °C |
