Siemens 3VA2063-7HL46-0AA0 Circuit-Breaker
جديد
متوفر1 وحدةجاهز للشحن

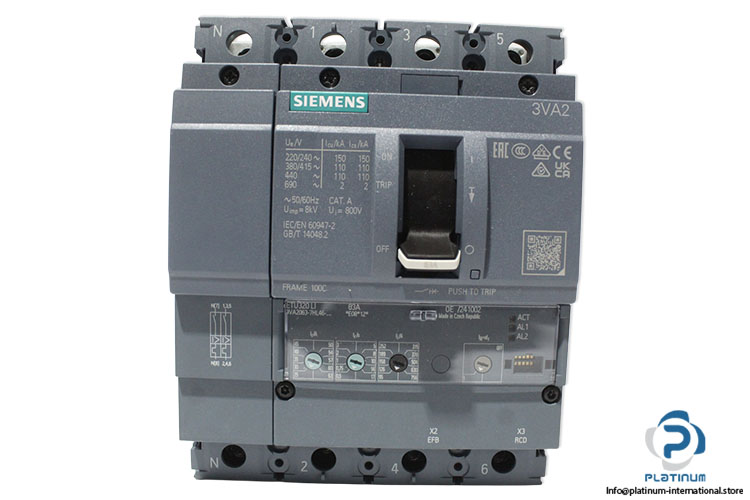

Circuit Breaker The Siemens 3VA2063-7HL46-0AA0 SENTRON circuit breaker is a high-performance molded case circuit breaker from the 3VA2 series. Featuring a 690 V AC operating voltage, 110 kA short-circuit breaking capacity, 100C frame, and IP40 protection, it provides dependable protection for industrial power distribution and electrical systems.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Series | 3VA2 |
| Brand Name | SENTRON |
| Frame | 100C |
| Insulation Voltage | 800V |
| Operating Voltage | 690V AC |
| Impulse withstands Voltage | 8 kV |
| Power Loss | Max. 3w |
| Type Of Electrical Connection | Double-Sided Box Terminal |
| Arrangement Of Electrical Connectors | Front Terminal |
| Frequency | 50/60 Hz |
| Switching Capacity Class of the Circuit Breaker | C |
| short-circuit current breaking capacity (Icu) | max. at 440V 110 kA |
| Protection Degree | IP40 |
| Ambient Temperature | -25 to 70 °C |
| Dimensions | 181x140x86 mm |
| Standard | IEC/EN 60947-2, GB/T 14048 2 |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093361 |
| Weight | 2,87 |
