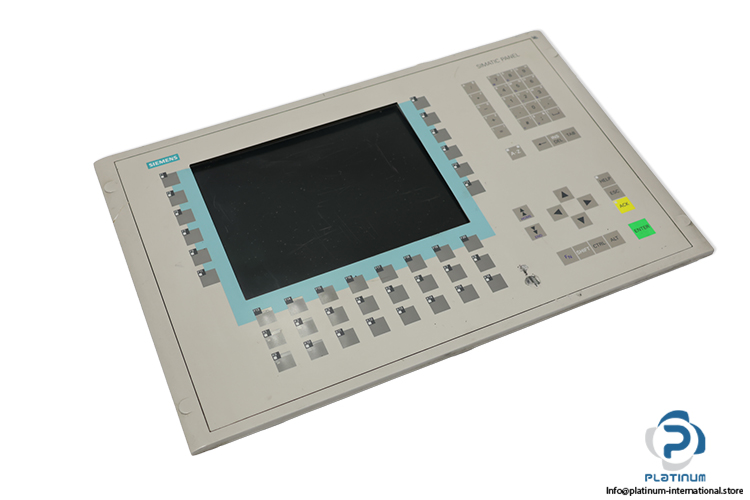

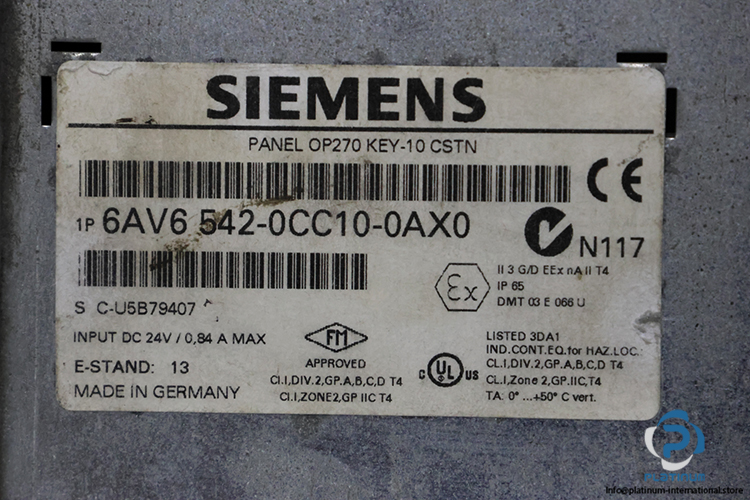

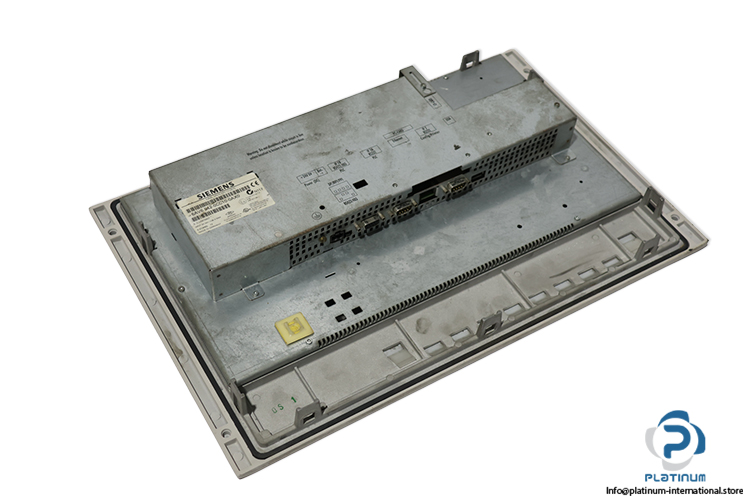

Siemens 6AV6 542-0CC10-0AX0 Operator Panel
مستعمل
متوفر1 وحدةجاهز للشحن
999,99$
Operator Panel The SIEMENS 6AV6542-0CC10-0AX0 is a SIMATIC OP270 operator panel with a 7.5-inch color display, membrane keyboard, and multiple PLC communication interfaces.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Range | SIMATIC OP270 KEY-10 CSTN |
| Compatibility | Supports SIEMENS S5/S7, ALLEN-BRADLEY, MITSUBISHI, OMRON, and MODICON PLCs |
| Design of Display | STN |
| Supply Voltage | 24 V DC |
| Rated Current Consumption | 0,84 A |
| Screen Diagonal | 7.5 In |
| Resolution | Horizontal 640 x Vertical 480 Pixel |
| Colors | 256 Color |
| Memory Type | Flash / RAM |
| Memory Available for User Data | 2048 kbyte |

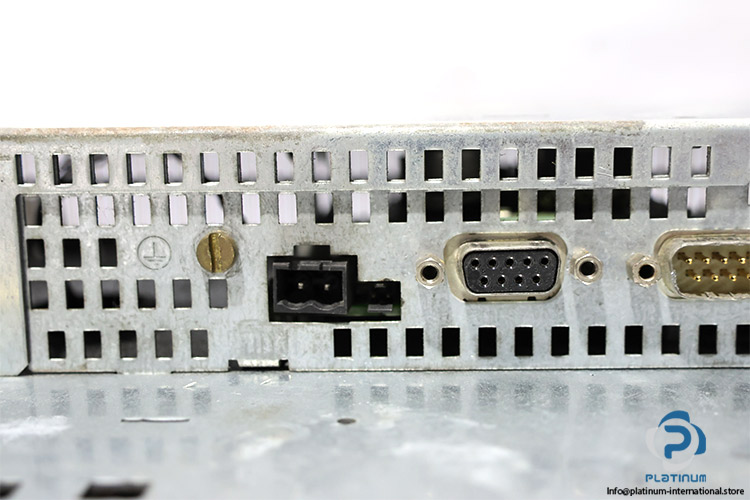

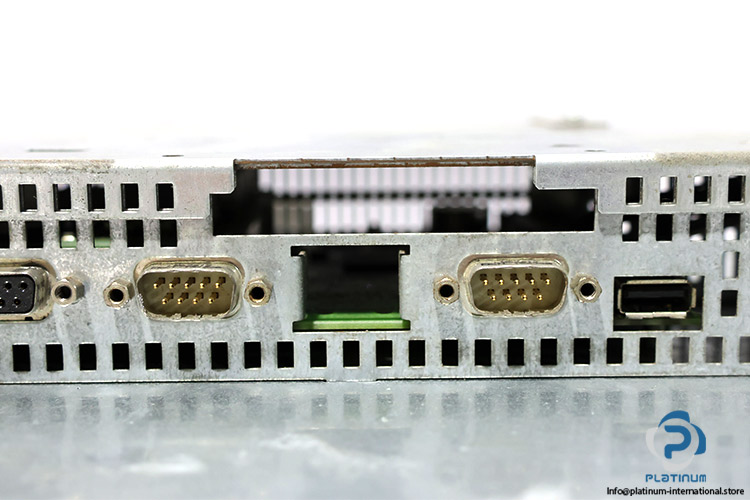

| Interfaces | 2x RS232, 1x RS422, 1x RS485 (up to 12 Mbit/s), and a CF Card Slot / USB Port |
| Processor Type | RISC |
| Control Elements | Membrane Keyboard |
| Function Keys | 36 Function Keys (28 with LEDs) |
| System Keys | 38 Keys |
| Operating System | WINDOWS CE, Configurable Via Protool v6.0 / WinCC Flexible |
| Protection Class | IP65/20 |
| Ambient Temperature | -20 … 60 °C |
| Dimensions | 483 x 310 x 55 mm |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1104225 |
| Weight | 4,52 |
