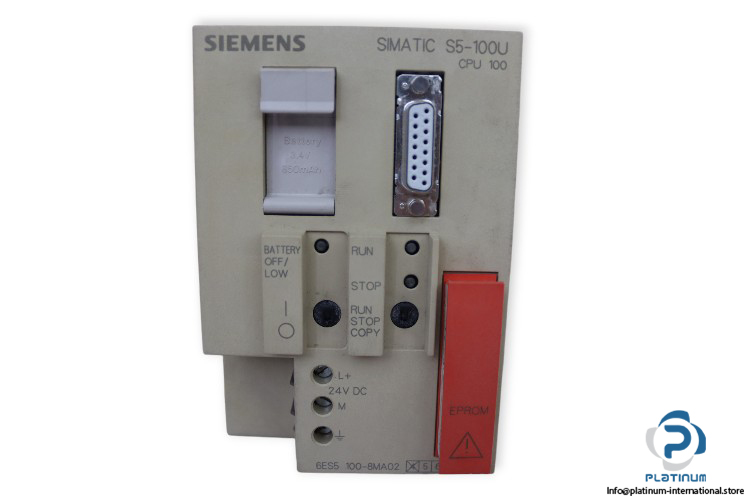

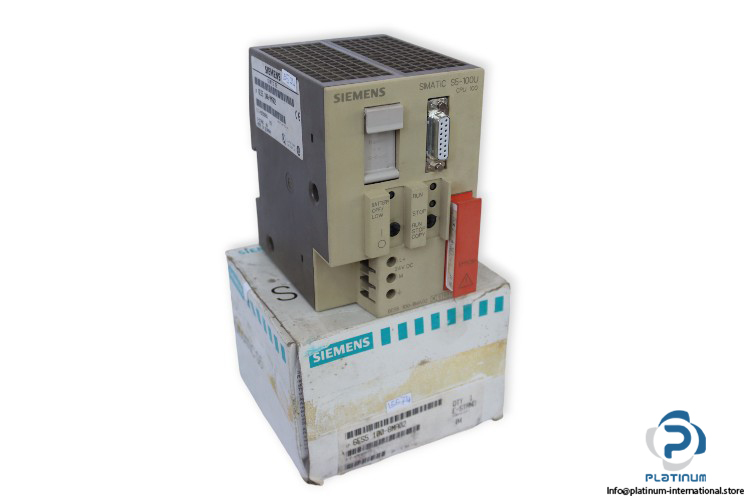

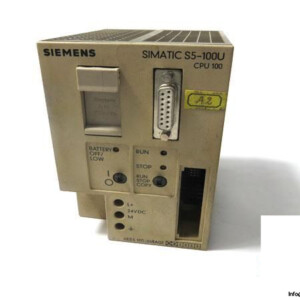

Siemens 6ES5 100-8MA02 CPU Module

Manufacturer: SIEMENS
Type: CPU MODULE
Model: 6ES5100-8MA02

Family: SIMATIC S5
Nominal Input Voltage: 24 V DC
Uses: for S5-100U
POWER LOSSES: 10.7 W
Current Consumption From 24 V: 1A
Memory configuration:
internal memory: RAM 1024 statements
memory submodule: EPROM/EEPROM
Digital inputs, Digital outputs together max.: 256
Analog inputs, Analog outputs together max.: 8
Ambient temperature:
horizontal arrangement: 0 to 60 °C
Vertical arrangement: 0 to 40 °C
DIMENSIONS: 91.5 X 135 X 120 mm
