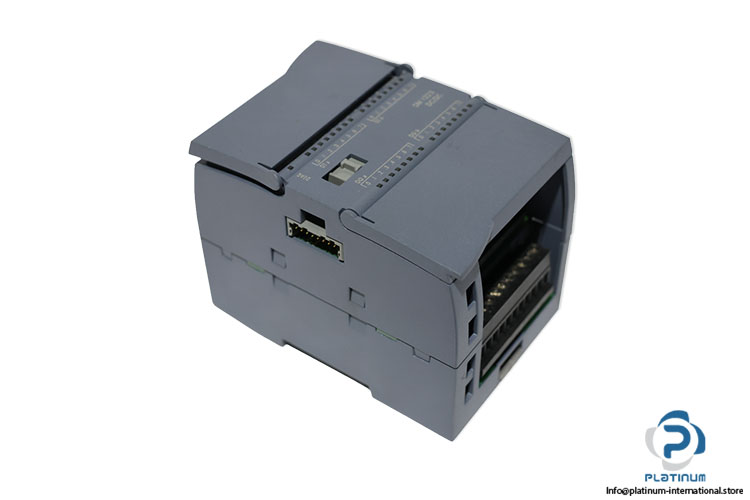

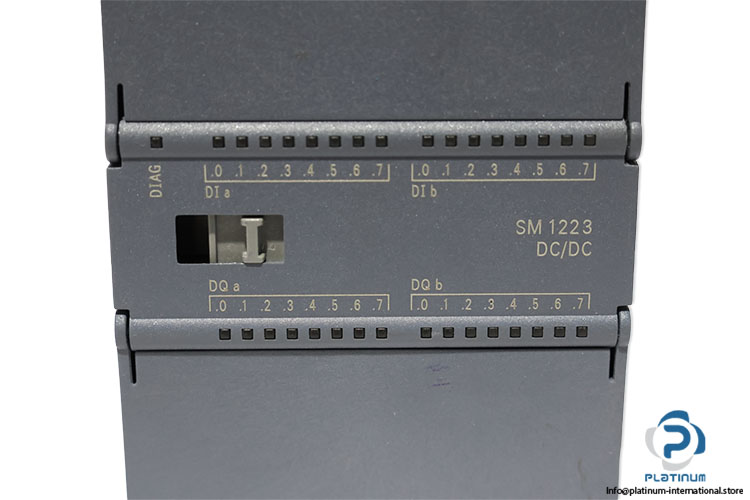

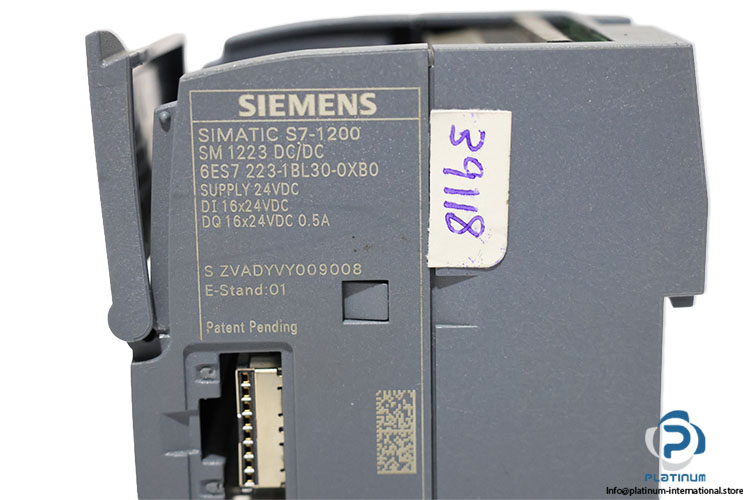

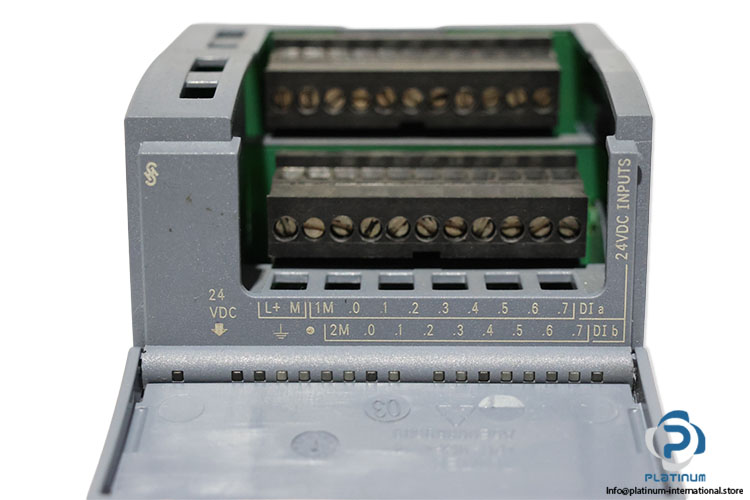

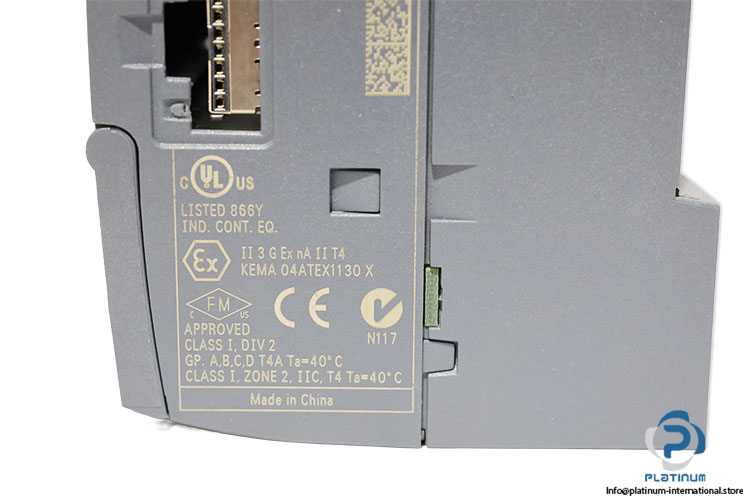

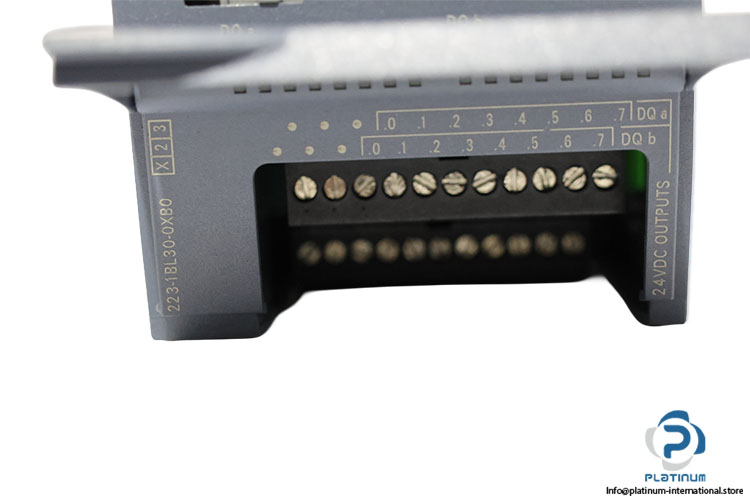

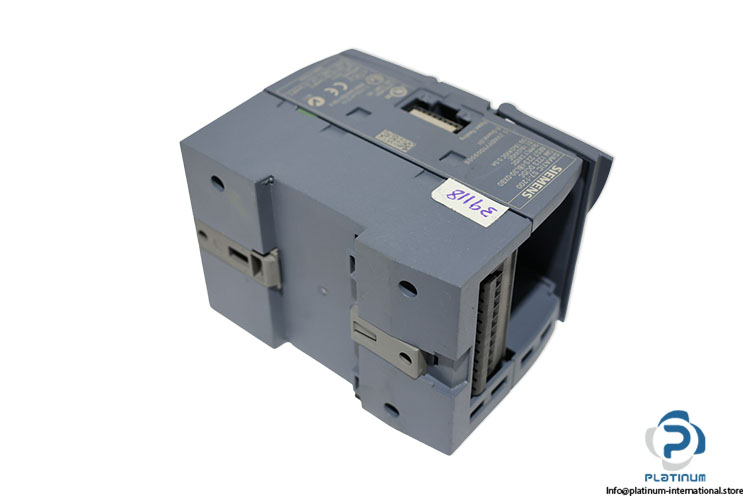

Siemens 6ES7 223-1BL30-0XB0 Digital Output
مستعمل
متوفر1 وحدةجاهز للشحن
Digital I/O Module SIEMENS SIMATIC S7-1200 digital input/output module with 16 digital inputs, 16 digital outputs, and 24 V DC supply, designed for industrial automation and control applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Family | SIMATIC S7-1200 |
| Supply voltage | 24 V DC |
| Supply voltage permissible range, lower limit (DC) | 20.4 V |
| Supply voltage permissible range, upper limit (DC) | 28.8 V |
| Input current | 185 mA |
| Power loss | 4.5 W |
| Number of digital inputs | 16 |
| Number of digital outputs | 16 |
| Switching capacity of the outputs with resistive load | max. 0,5A |
| Switching capacity of the outputs on lamp load | max. 5W |
| Cable length | (shielded, max. 500 m), (unshielded, max. 300 m) |
| Ambient Temperature | -40 to +70 °C |
| Width | 70 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Condition | Used |
| Stock key | CON003 |
| SKU | 1093685 |
| Weight | 0,26 |
