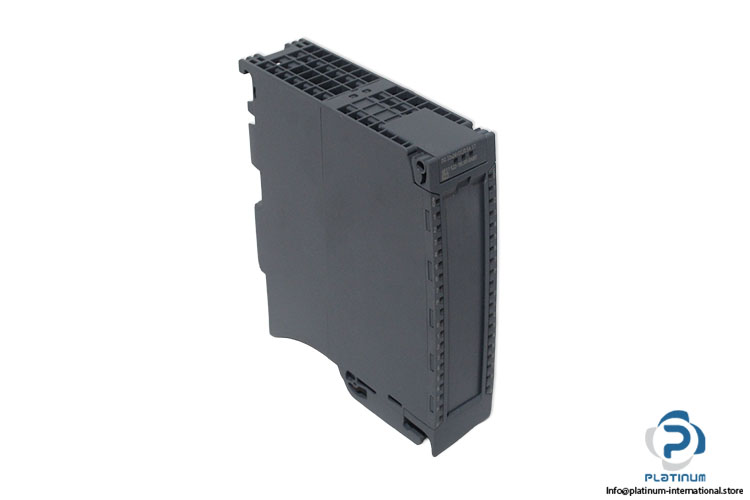

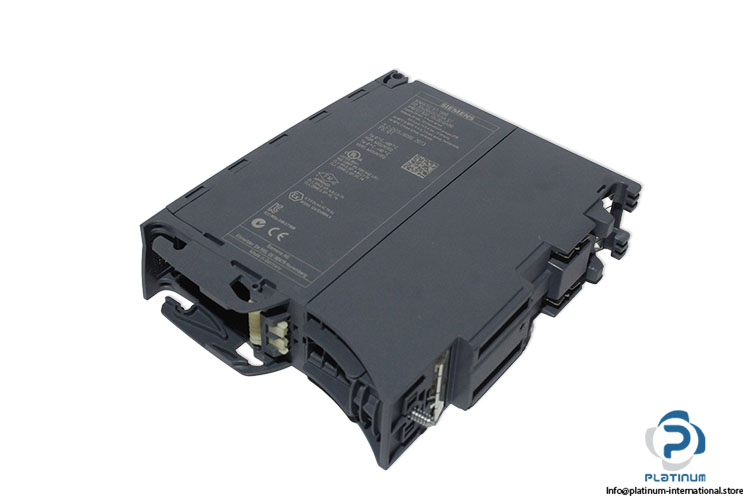

Siemens 6ES7 522-1BL00-0AB0 Digital Output Module
جديد
متوفر1 وحدةجاهز للشحن
Digital Output Module Siemens SIMATIC S7-1500 digital output module with 32 binary outputs, 24 V DC rated voltage, and up to 0.5 A switching capacity for industrial automation and control applications
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Family | SIMATIC S7-1500 |
| Hardware product version | E01 |
| I&M data | Yes; IM0 to IM3 |
| Rated voltage | 24 V DC |
| permissible range, lower limit | 20.4 V DC |
| permissible range, upper limit | 28.8 V DC |
| Current consumption | max. 60 mA |
| Power | 1,1W |
| Power loss | 3,5W |
| Number/binary outputs | 32 |
| Switching capacity of the outputs | (with resistive load, max. 0.5 A), (on lamp load, max. 5 W) |
| Load resistance range | lower limit 48 ?, upper limit 12 k? |
| Cable length | (shielded, max. 1000 m), (unshielded, max. 600 m) |
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Condition | New |
| Stock key | CON003 |
| SKU | 1093696 |
| Weight | 0,34 |
