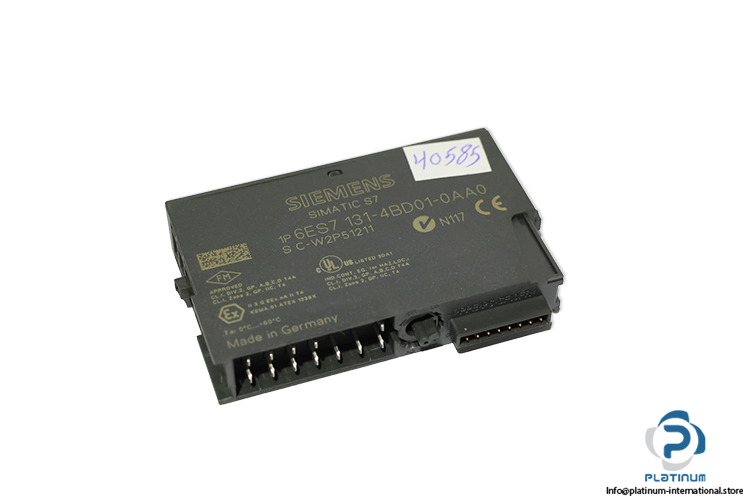

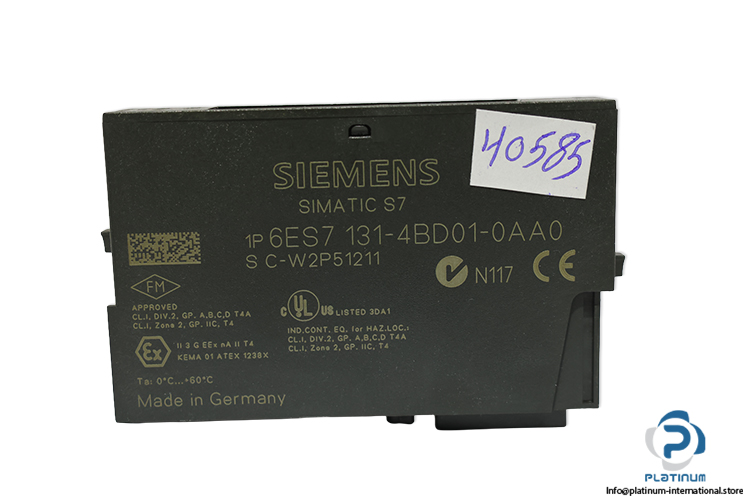

Siemens 6ES7131-4BD01-0AA0 Digital Electronic Module
جديد
متوفر2 وحداتجاهز للشحن
Digital Input Module The Siemens 6ES7 131-4BD01-0AA0 is a 4-channel, 24 V DC digital input module for SIMATIC ET 200S industrial automation systems.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Family | SIMATIC S7 |
| Uses | for ET 200S |
| MRN | 6ES7 131-4BD01-0AA0 |
| Serial No. | C-W2P51211 |
| No. of Digital Inputs (DI) | 4 |
| Input | 24 V DC; -30 / +5V = œ0, 15 / 30V = œ1 (7 mA @ 24V) |
| Supply Voltage | 24 V DC; From Power Module; Reverse Polarity Protected |
| Current Consumption | 10 mA |
| Power Loss | Typical 0.7 W |
| Output Voltage | Min. L+(0.V) |
| Rated Output Current | 500 mA |
| Connectable Encoders | 2-wire BEROS, Max. 1.5 mA |
| Ambient Temperature Range | -25 / +60°C |
| Isolation Tested With | 500 V DC |
| Dimensions | 15 x 81 x 52 mm |
| Explosion proof | ex |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1101504 |
| Weight | 0,04 |
