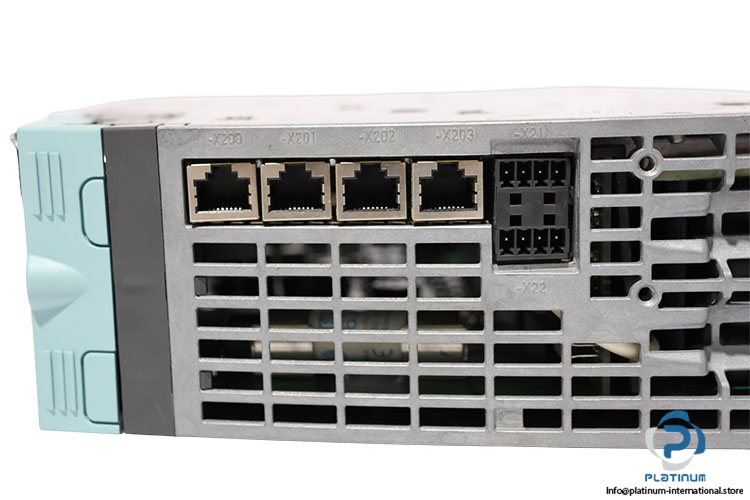

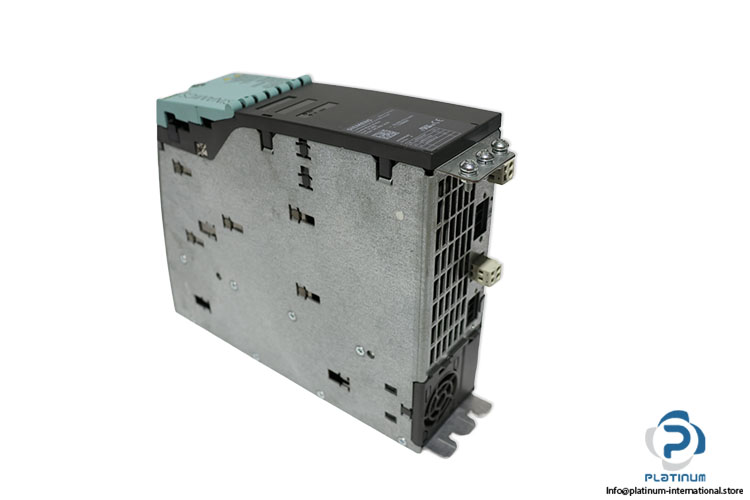

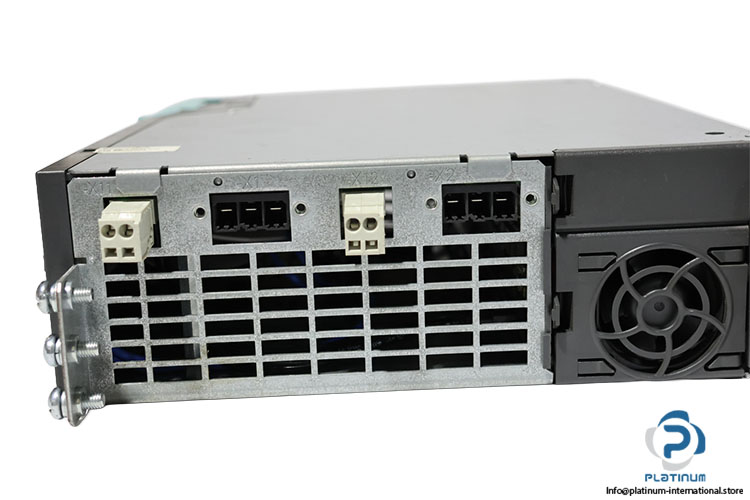

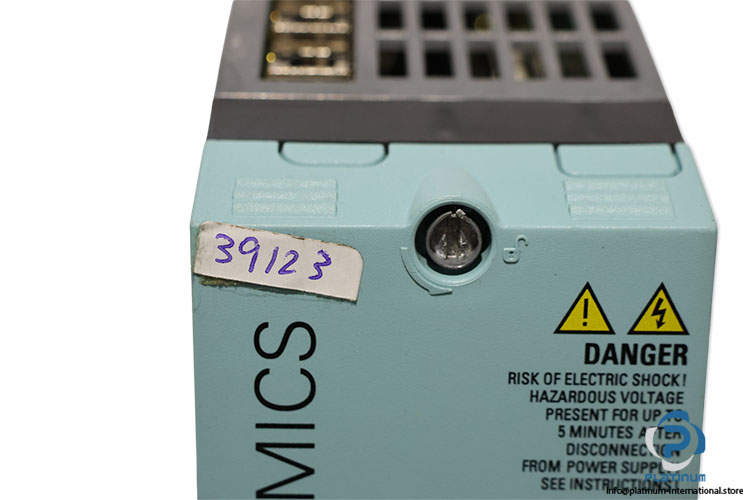

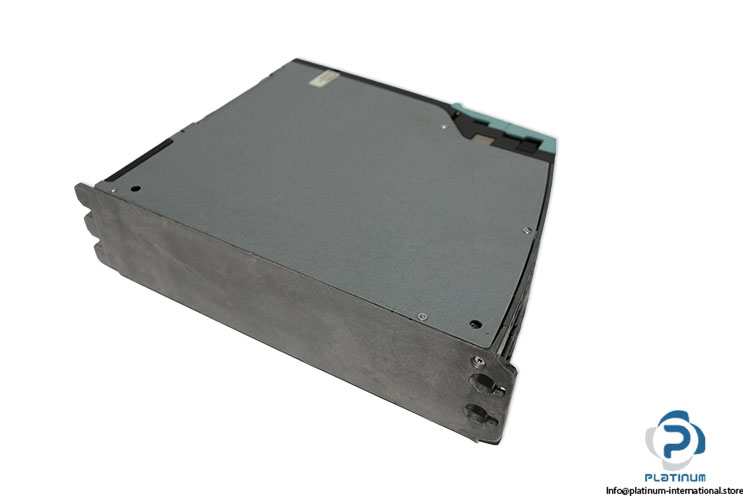

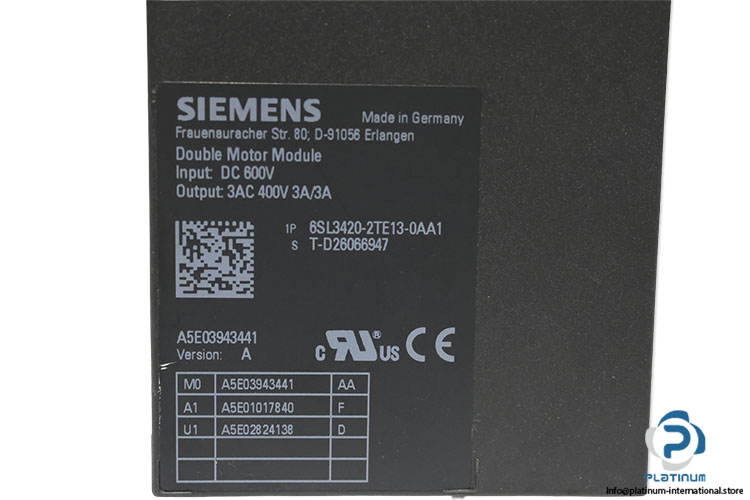

Siemens 6SL3420-2TE13-0AA1 Double Motor Module
مستعمل
متوفر4 وحداتجاهز للشحن
Double Motor Module Siemens double motor module with 510–720 V DC link voltage and dual 3.0 A rated outputs, designed for industrial servo, vector, and V/f motor control applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| DC link voltage | 510 … 720 V DC |
| Electronics power supply | DC 24 V -15 % / +20 % |
| Output Voltage | 3-Phase 400 V AC |
| Current demand, max. | 1.00 A |
| DC-link current Id | 7.2 A |
| Rated value IN | 2 x 3.0 A |
| Type rating | Based on IN 2 x 1.6 kW |
| Rated pulse frequency | 8.00 kHz |
| Output frequency for servo control | 650 Hz |
| Output frequency for V/f control | 600 Hz |
| Output frequency for vector control | 300 Hz |
| Degree of protection | IP20 / UL open type |
| Ambient temperature | 0 … 40 °C |
| Dimension | 270 x 226 x 75 mm |
| Condition | Used |
| Stock key | CON003 |
| SKU | 1093689 |
| Weight | 3,5 |
