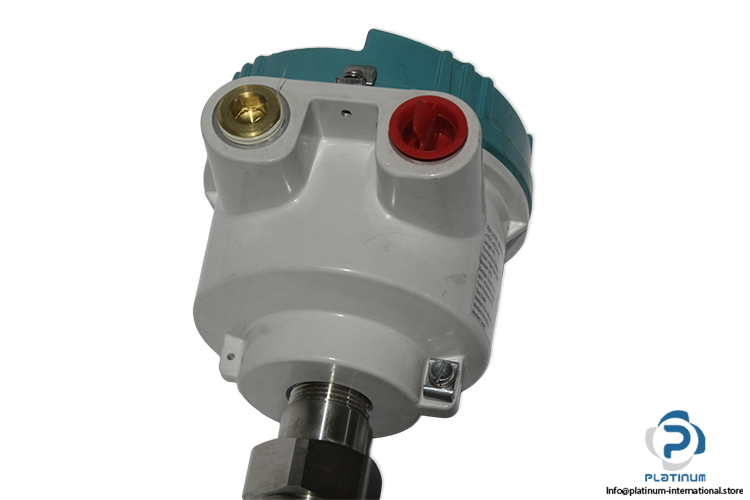

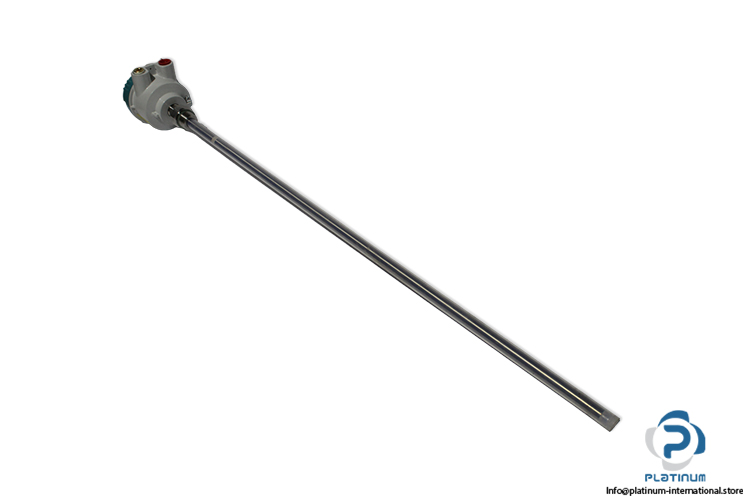

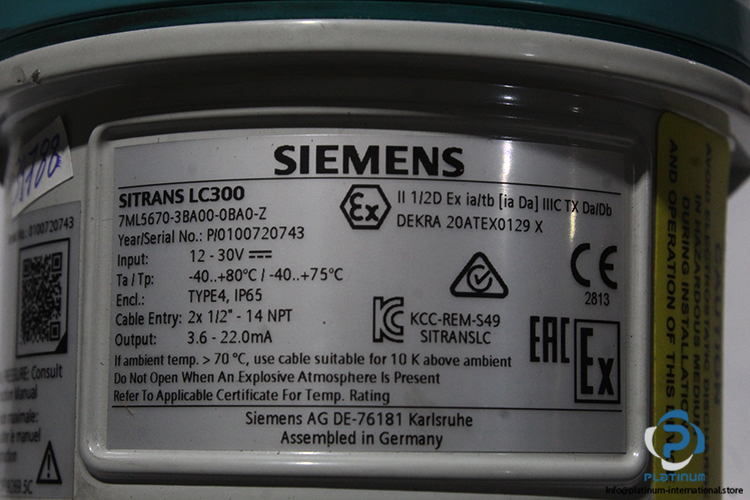

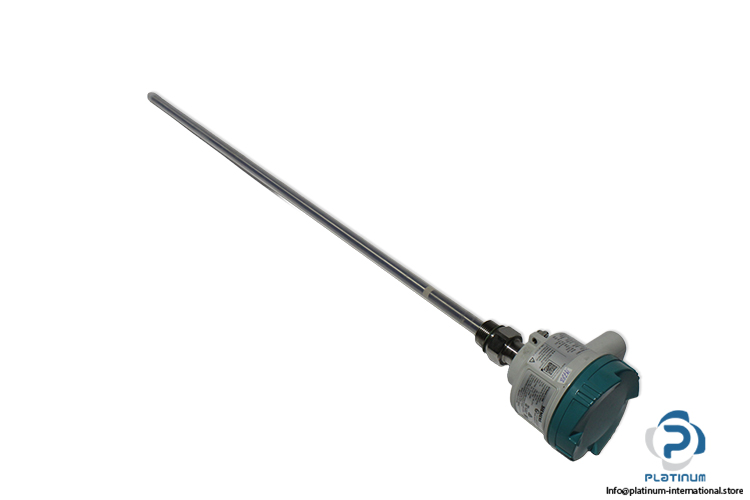

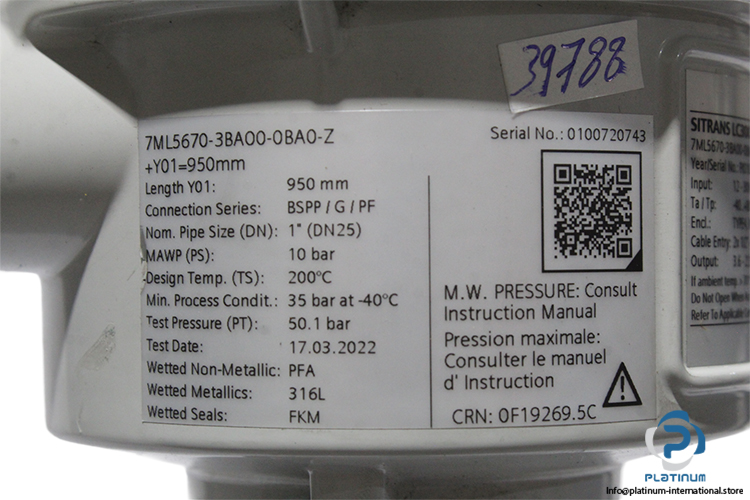

Siemens 7ML5670-3BA00-0BA0-Z Capacitance Level Measurement
جديد
متوفر1 وحدةجاهز للشحن
Continuous Level Measurement SIEMENS SITRANS LC300 capacitance level measurement device with 12 to 30 V DC supply, 3.6 – 22.0 mA output, and AISI 316L / PFA sensor.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Family | SITRANS LC300 |
| Supply Voltage | 12 to 30 V DC any polarity, 2-wire current loop circuit |
| Output | loop current: 3.6 - 22.0mA 2 wire current loop |
| Sensor | AISI 316L / PFA |
| Range | 1.66 to 3300 pF, minimum span 3.3 pF |
| Accuracy | max. 0.5% of actual measurement value |
| Temperature stability | 0.25% of actual capacitance value |
| Wiring connections | max. 2.5 mm2 |
| Ambient temperature | -40 to 85 °C |
| Condition | New |
| Stock key | CON003 |
| SKU | 1094009 |
| Weight | 1,98 |
