SIEMENS 1 UA7113-4BA20 3 Phase Electric Motor
مستعمل
متوفر1 وحدةجاهز للشحن

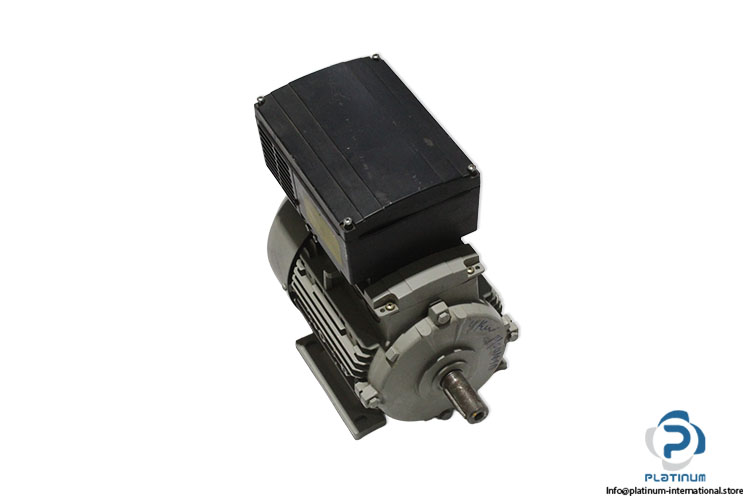

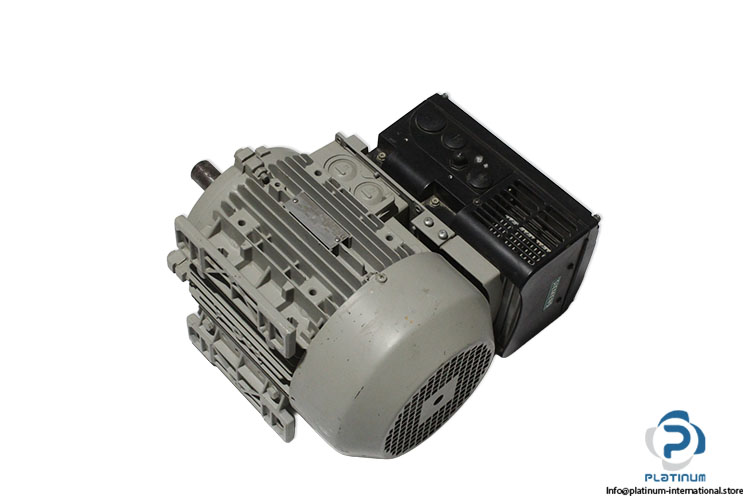

3 Phase Electric Motor SIEMENS 4 kW three-phase electric motor with 400 V rated voltage, 1440 rpm speed and COMBIMASTER CM400/3 integrated frequency inverter.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

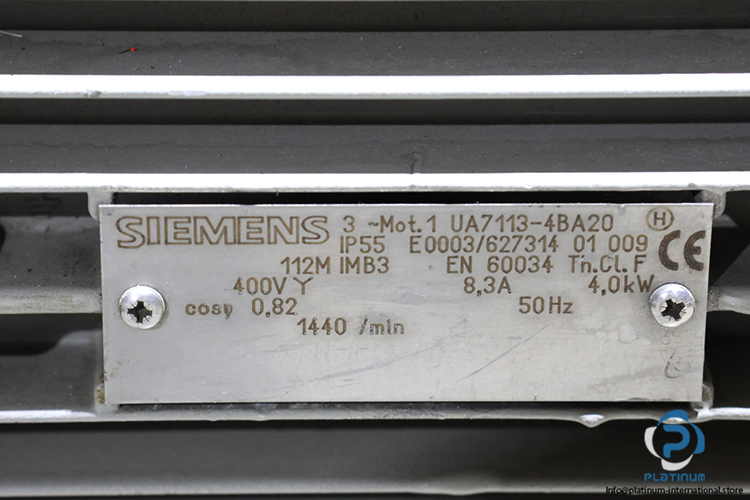

| Part No. | E0003/627314 01 009 |
| Rated Power [kW] | 4 |
| Rated Voltage [V] | 400 star |
| Rated Current [A] | 8.3 |
| Rated Speed [rpm] | 1440 |
| Power Factor | 0.82 |
| Rated Frequency [Hz] | 50 |
| Insulation class | Th.Cl.F |
| Protection Class | IP55 |
| Standard | EN 60034 |

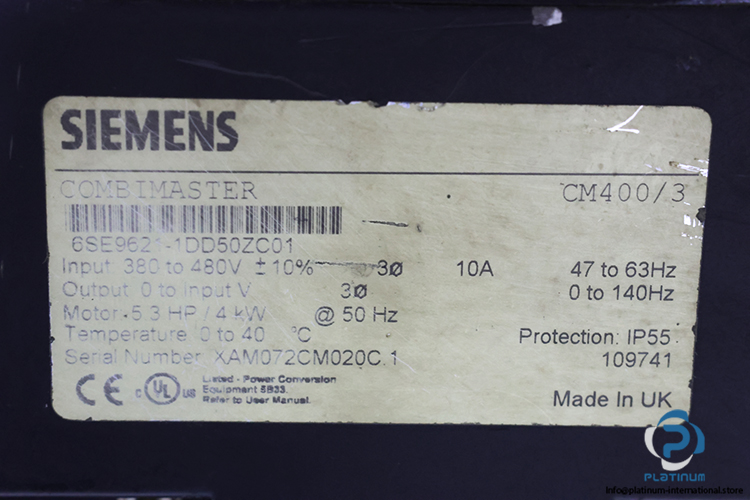

| Attached with | SIEMENS 6SE9 621-1DD50ZC01 INTEGRATED FREQUENCY INVERTER |
| Series | COMBIMASTER, Model: CM400/3 |
| Input Voltage | 3 AC 380V to 480 (±10%), 47–63Hz |
| Input current | 10 A |
| Output | 0 to AC 380V to 480 V |
| Output FREQ | 0 to 140Hz |
| Inverter Control | Microprocessor-controlled IGBT technology with closed-loop PI function |
| Motor power @ 50 Hz | .5.3 HP / 4 kW |
| Temperature | 0 to 40 |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1101298 |
| Weight | 33.25 |
