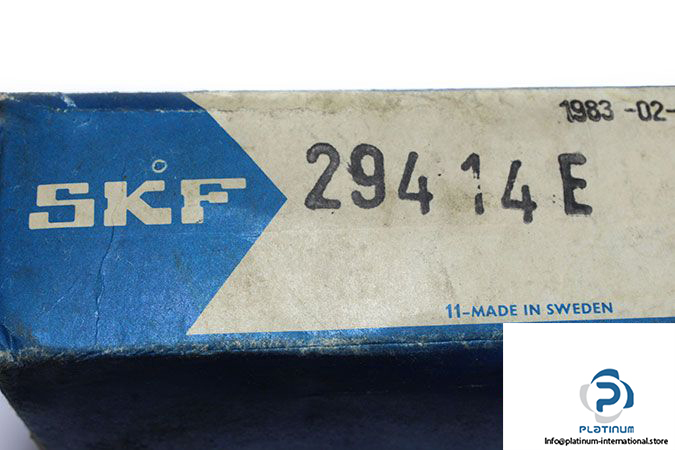

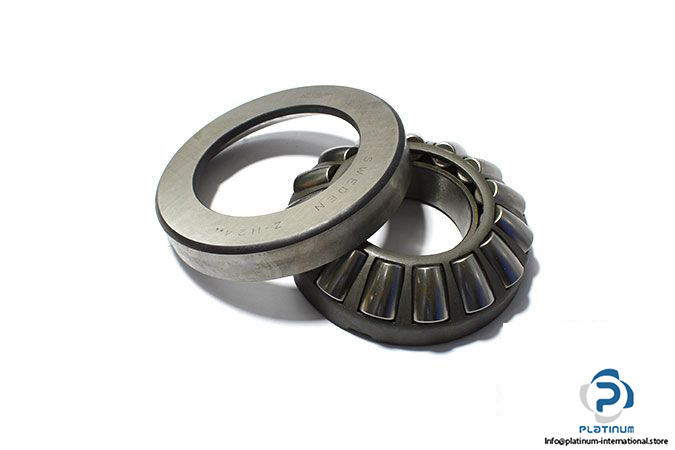

SKF 29414 E Spherical Roller Thrust Bearing

Manufacturer: SKF

Type: Spherical Roller Thrust Bearing

Model: 29414E

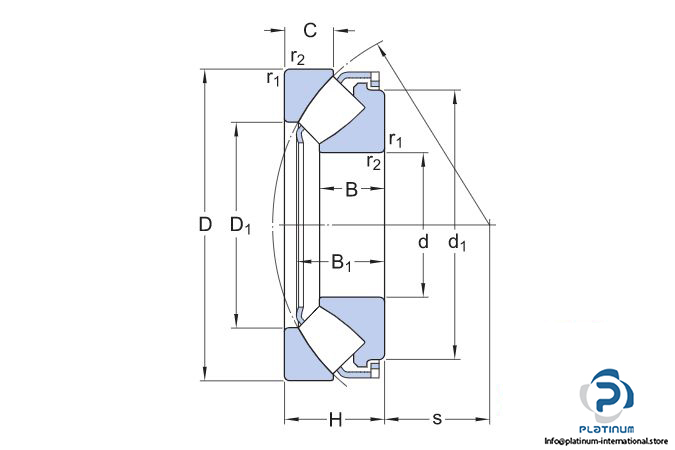

Dimensions:

Bore Diameter d: 70 mm

Outer diameter D: 150 mm

Width H: 48 mm

Minimum chamfer dimension r_{1,2 min}: 2 mm

Basic load ratings:

Dynamic C_a: 520 kN

Static C_0a: 1250 KN

Fatigue load limit P_u: 153 kN

Reference speed: 2400 rpm

Limiting speed: 4300 rpm

Cage: Stamped Steel Cage

Weight: 3.93 kg
