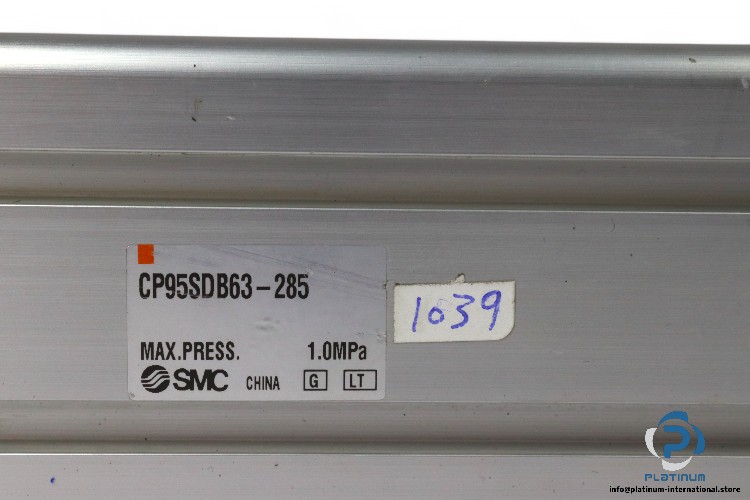

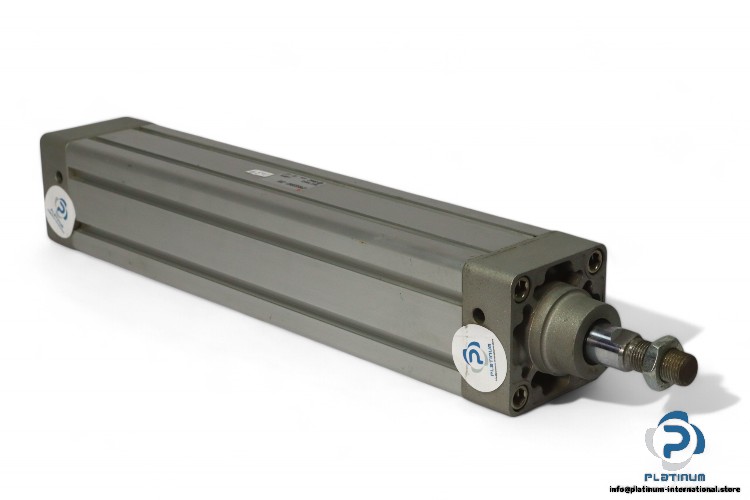

SMC CP95SDB63-285 ISO Cylinder

SMC ISO Cylinder CP95SDB63-285

The SMC ISO Cylinder CP95SDB63-285 is a high-performance pneumatic cylinder designed for a variety of industrial applications. With a bore diameter of 63 mm and a stroke length of 285 mm, this cylinder is ideal for reliable operation in demanding environments.

Manufacturer: SMC

Model: CP95SDB63285

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 63 mm
• Stroke: 285 mm
• Bore x Stroke: 63 x 285 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 75 x 435 mm
• Pneumatic Connection: G 3/8
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
