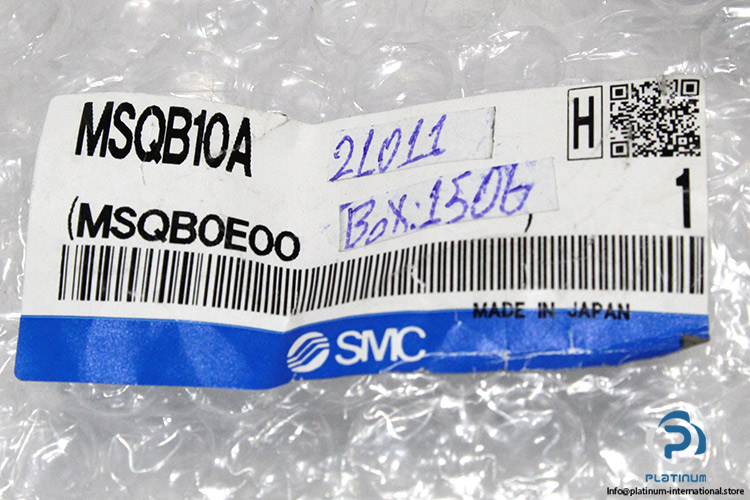

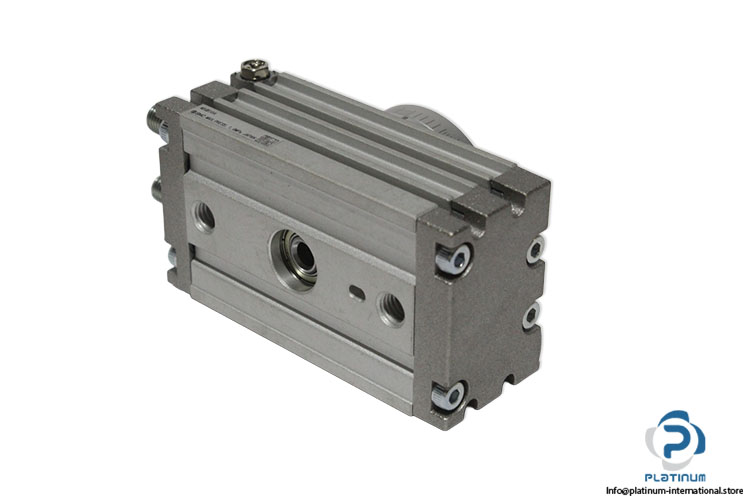

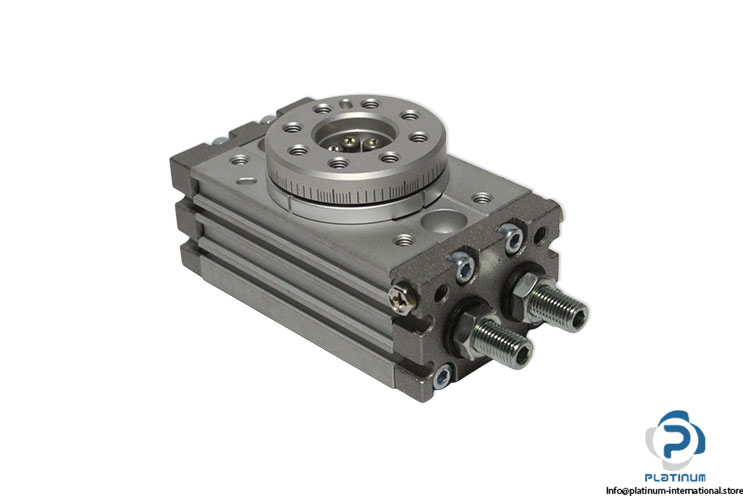

SMC MSQB10A Compact Rotary Table
جديد
متوفر1 وحدةجاهز للشحن
188,88$
The SMC MSQB10A Compact Rotary Table is a pneumatic rotary actuator designed for precise positioning and smooth rotational movement. Featuring a 15 mm bore, 0 to 190 degree adjustment range, max. 1 MPa operating pressure, and non-lube operation, it is ideal for industrial automation and assembly applications.
ActuatorAirAutomationCompactComponentscontrCylinderIndexingIndustrialMotionMsqbPneumaticPositioningRotarySMCTableUnit
مستعمل
متوفر 111,11$
هذا المنتج متوفر أيضًا بحالة مستعملة
عرض النسخة المستعملة ←
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Code | MSQBOEOO / 3B1-1 / H Bo |
| Series | MSQ |
| Fluid | Air |
| Size | 10 |
| Cylinder bore size | 15 mm |
| Angle adjustment range | 0 to 190 degree |
| Adjuster option | With adjustment bolt |
| Operating pressure | max. 1 MPa |
| Cushion Type | Rubber bumper |
| Lubrication | Non-lube |
| Port size | 5MM |
| Ambient and fluid temperature | 0 to 60°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097496 |
| Weight | 0,50 |
