Steinmeyer 1516.73/5.63.745.950 P3 Flange NUT Ball Screw

Name: STEINMEYER 1516.73/5.63.745.950 P3 FLANGE NUT BALL SCREW
SKU: 1086983
Price: 1666.66 USD
Availability: InStock

steinmeyer-1516.73_5.63.745.950-P3-flange-nut-ball-screw-new

steinmeyer-1516.73_5.63.745.950-P3-flange-nut-ball-screw-new-1

steinmeyer-1516.73_5.63.745.950-P3-flange-nut-ball-screw-new-2

جديد

متوفر1 وحدةجاهز للشحن

1 666,66$

صمولة شفة برغي كروي Steinmeyer 1516.73/5.63.745.950 صمولة شفة برغي كروي بقطر 63 مم، خطوة 5 مم، خيط يدوي يميني، طول الخيط 745 مم، وطول البرغي الكلي 950 مم.

الشركة المصنّعة

STEINMEYER

SKU

1086983

الفئة

Screw & Ball Screws

الحالة

جديد

119642 1516.73/5.63.745.950 5 63 Ball diameter Flange Industrial lead Linear mm Motion nut P3 Precision Right-Hand screw Steinmeyer Thread

مخزون ضخم

شحن عالمي

دعم من خبراء

جودة مضمونة

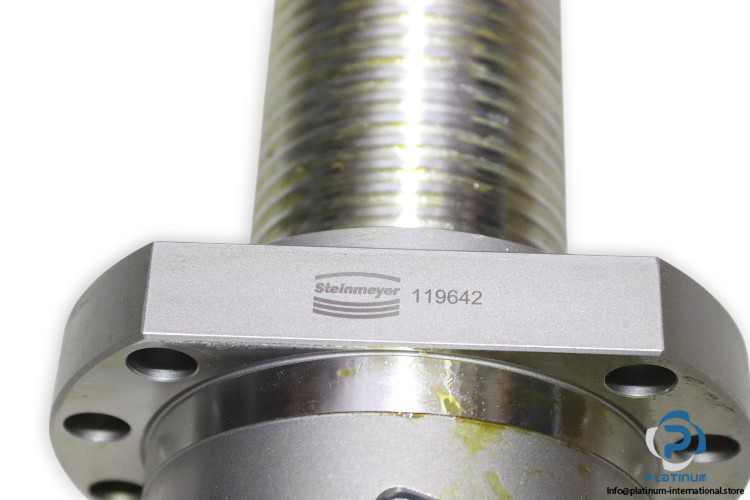

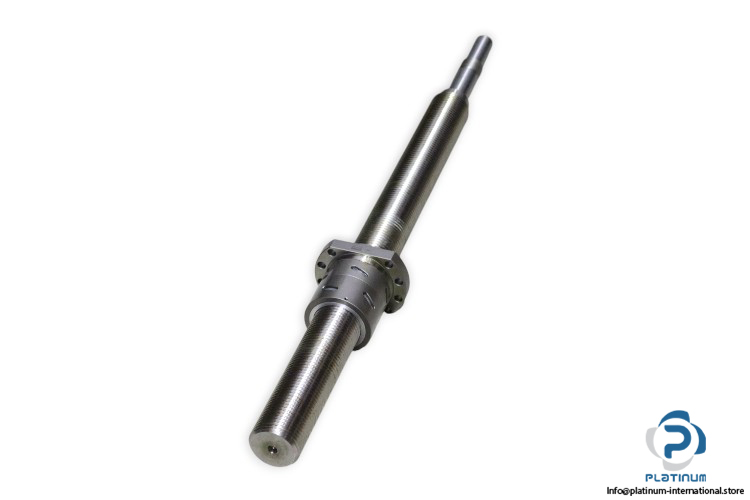

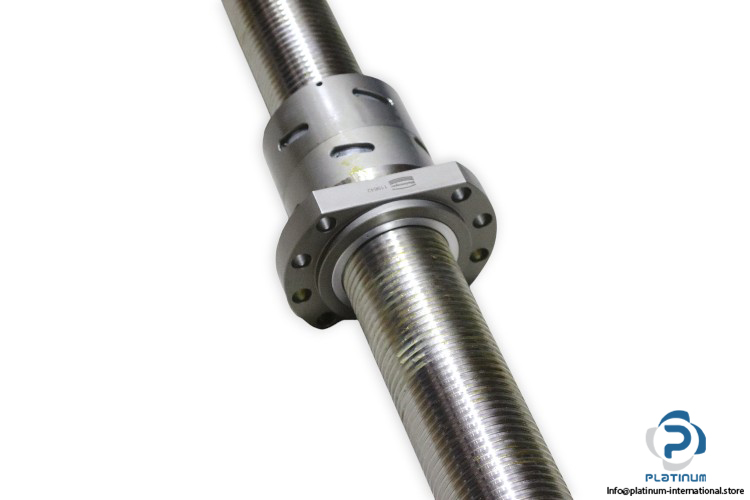

Steinmeyer 1516.73/5.63.745.950 P3 Flange Nut Ball Screw

The Steinmeyer 1516.73/5.63.745.950 P3 is a precision-engineered flange nut ball screw designed for high accuracy and reliability in motion control applications. With a nominal diameter of 63 mm, a 5 mm lead, and robust design, it ensures smooth linear motion for demanding industrial systems.

Manufacturer: Steinmeyer

Type: Flange Nut Ball Screw

Model: 1516.73/5.63.745.950 P3

Code: 119642

Size	63 x 5 R
Nominal Diameter (dN)	63 mm
Lead (P)	5 mm
Number of Starts	1
Direction of Lead	Right-Hand Thread
Threaded Length	745 mm
Total Screw Length	950 mm

المواصفة	القيمة
Weight	21,25 kg
Condition	New
Manufacturer	STEINMEYER
Type of Product	Flange nut ball screw
Flange Thickness [mm]	18
Shelf No.	250931
Flange Diameter [mm]	125
Cutting Flange Width [mm]	95
Nut Outer Diameter [mm]	90
Nut Length [mm]	114
Size	63 x 5 R
