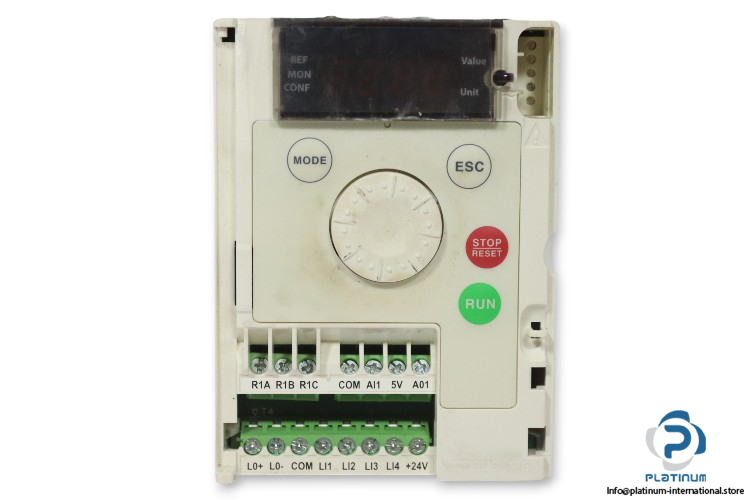

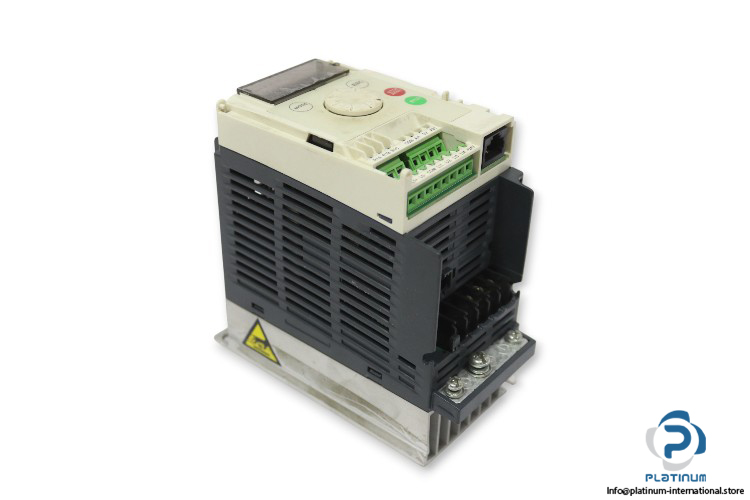

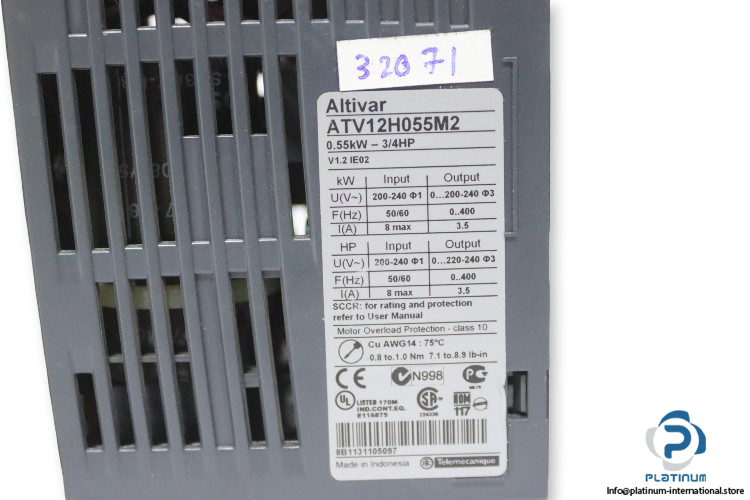

Telemecanique ATV12H055M2 Variable Speed Drive
متوفر1 وحدةجاهز للشحن
111,11$
Variable Speed Drive The Telemecanique ATV12H055M2 is a Frequency Inverter designed for efficient motor speed control in industrial automation. Suitable for pumps, fans, conveyors, and general machinery applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Range of product | Altivar (v1.2 IE02) |
| Product destination | Asynchronous motors |
| Product specific application | Simple machine |
| Assembly style With heat sink Component name | ATV12 |
| Input Voltage | 200 … 240 V AC |
| Input Frequency | 50/60 Hz |
| Input Current | 8 A |
| Input Phase | 1 Phase |
| Output Voltage | 0 … 200 - 240 V Ac |
| Output Frequency | 0 / 400 Hz |
| Output Current | 3.5 A |
| Transient max. Current | 3.5 A |
| Rated Power | 0.55 kW |
| Operating Temperature | -10 … 40 °C |
| Degree of protection | IP20 |
| Dimensions | 143 X 131.2 X 72 mm |
| Connector type | 1 RJ45 Modbus on front face |
| Physical interface | 2-wire RS 485 Modbus |
| Stock key | CON003 |
| Display | in Display |
| Stock Location | F-A-14-01-B / Pallet.1 |
| Condition | New |
| SKU | 1100627 |
| Weight | 0,83 |
