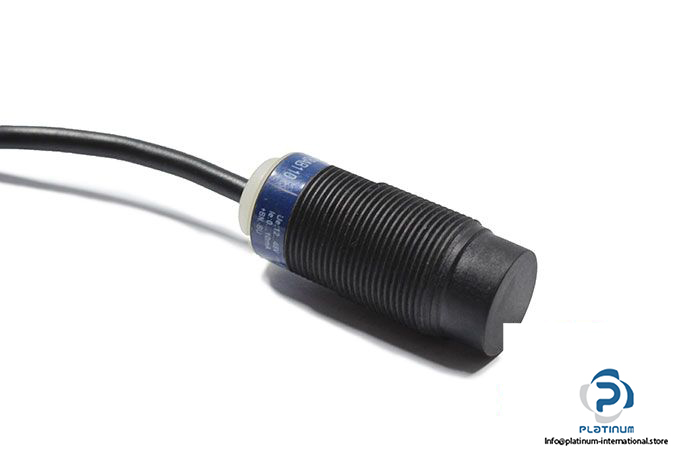

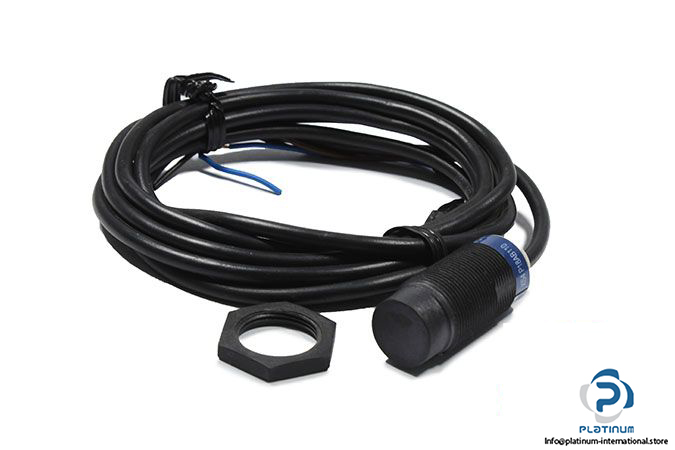

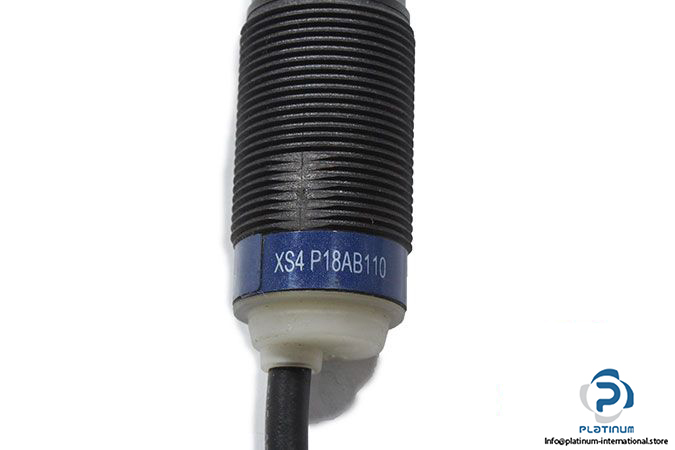

Telemecanique XS4P18AB110 Inductive Sensor

Manufacturer: Schneider / Telemecanique

Type: Inductive Sensor

Model: XS4P18AB110



Sensor Design: Cylindrical M18

Detector Flush Mounting Acceptance: Non flush mountable

Material: Plastic

Wiring Technique: 3-wire

Nominal Sensing Distance: 8 mm

Analogue Output Range: 0 … 10 V

Electrical Connection: Cable

Cable Length: 2 m

Rated Supply Voltage: 24 … 48 VDC

Degree of Protection: IP67

Thread Type: M18 x 1

Ambient Air Temperature for Operation: -25 … 70 °C

Diameter, Length: 18 mm, 41 mm

Weight: 0.07 Kg
