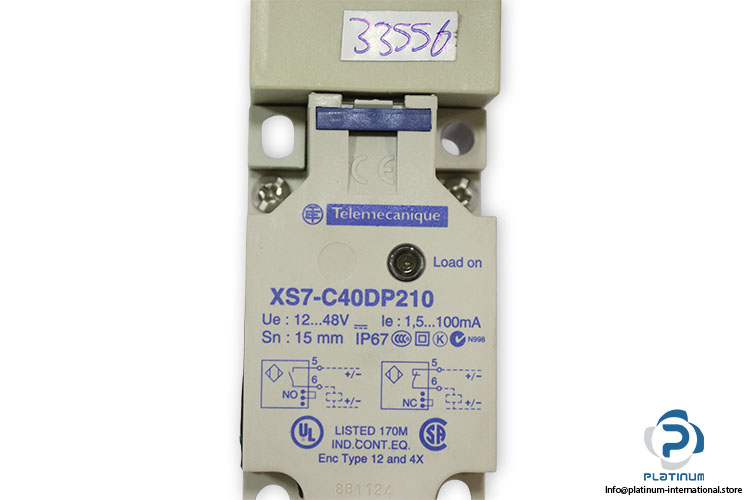

Telemecanique XS7-C40DP210 Inductive Sensor
جديد
متوفر1 وحدةجاهز للشحن
Inductive Sensor
A reliable Telemecanique inductive proximity sensor designed for precise metal detection, stable performance, and long-term durability in industrial automation environments.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
Telemecanique XS7C40DP210 Inductive Sensor
A high-performance inductive proximity sensor designed for accurate metal detection, durable operation, and reliable performance in industrial automation systems. Ideal for machinery, assembly lines, and positioning applications. Manufacturer: Telemecanique
Type: Inductive Sensor
Model: XS7C40DP210
ID No.: 061001
SN: 3389110 610017
Size:
| Range of Product | Telemecanique Inductive Proximity Sensors XS |
| Sensor Name | XS7 |
| Sensor Design | Form 40 x 40 x 117 |
| Body Type | Fixed |
| Flush Mounting | Flush Mountable |
| Material | Plastic |
| Enclosure Material | Plastic |
| Output Signal Type | Discrete |
| Wiring Technique | 2-Wire |
| Nominal Sensing Distance [Sn] | 15 mm |
| Discrete Output Function | 1 NO or 1 NC Programmable |
| Output Circuit Type | DC |
| Electrical Connection | Screw-Clamp Terminals 2 x 1.5 mm² |
| Rated Supply Voltage [Us] | 12 / 48 V DC (Reverse Polarity Protection) |
| Switching Capacity | 1.5 / 100 mA (Overload and Short-Circuit Protection) |
| IP Degree of Protection | IP67 (IEC 60529) |
| Detection Face | 5-Position Turret Head |
| Front Material | Plastic |
| Operating Zone | 0 / 12 mm |
| Supply Voltage Limits | 10 / 58 V DC |
| Maximum Residual Current | 0.5 mA (Open State) |
| Switching Frequency | ‰¤1500 Hz |
| Maximum Voltage Drop | <4 V |
| Height | 40 mm |
| Length | 40 mm |
| Width | 117 mm |
| Ambient Temperature for Operation | -25 / 70 °C |
